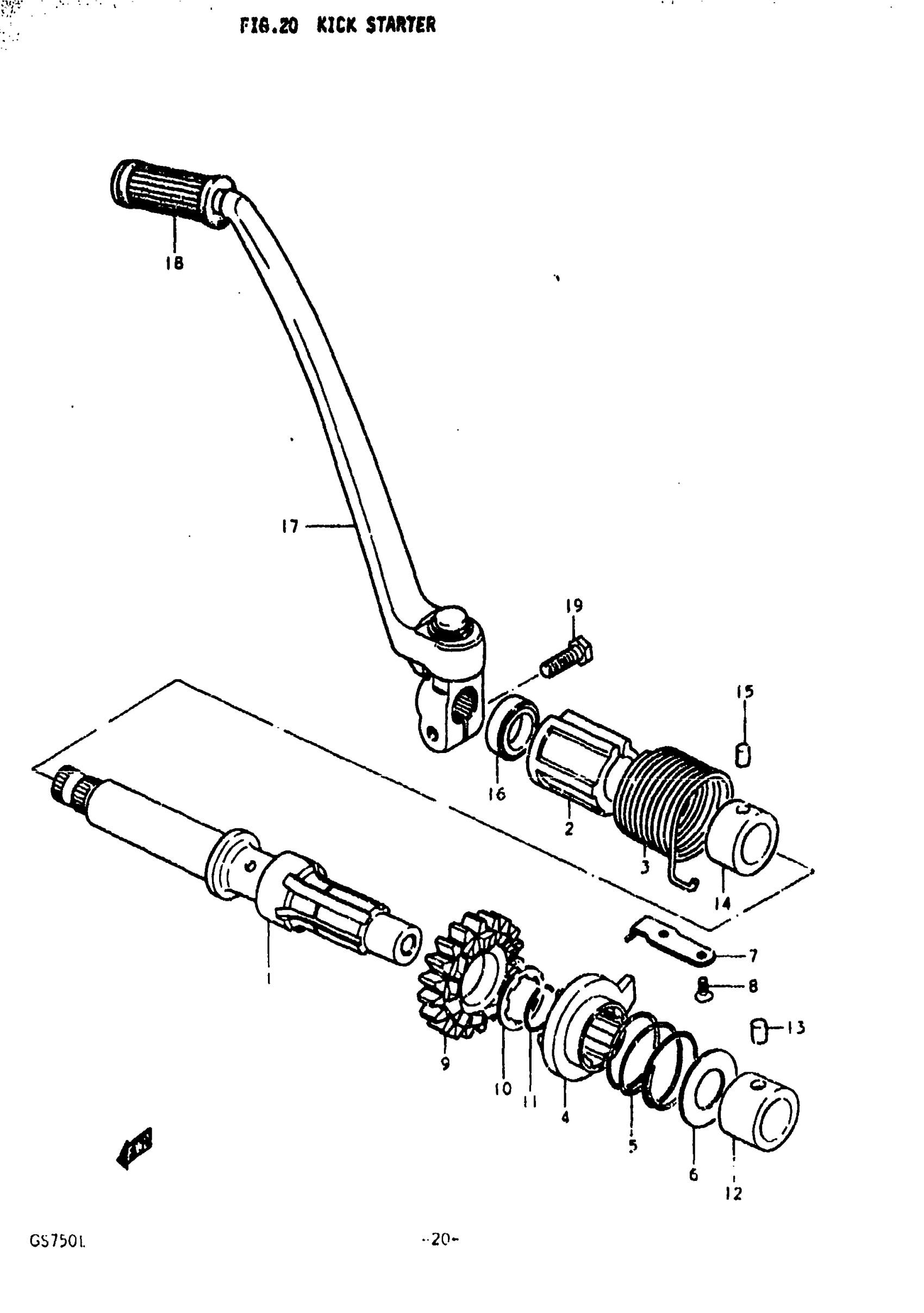

Suzuki GS750L (1979) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26210-45001

Unavailable

2

GUIDE, SPRING

26221-45001

Unavailable

3

SPRING

09448-45009

Unavailable

4

STARTER, KICK This part replaces 26231-30001.

26231-22A10

$63.88

5

SPRING

09440-32002

$2.27

6

PLATE

08212-17342

Unavailable

7

GUIDE, STARTER

26232-45000

Unavailable

8

SCREW This part replaces 02122-06168.

02122-06167

$1.49

9

GEAR, KICK STARTER DRIVE | NT:19

26240-45000

Unavailable

10

WASHER

09167-22007

Unavailable

11

CIRCLIP

09380-22003

$1.92

12

BUSHING, LH

09300-17002

Unavailable

13

DOWEL PIN

04221-07129

$1.86

14

BUSHING, RH

09300-20019

Unavailable

15

DOWEL PIN

04221-07129

$1.86

16

OIL SEAL

09283-20031

$5.24

17

LEVER ASSY, KICK STARTER | Includes Item(s) 18

26300-45000

Unavailable

18

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

19

BOLT This part replaces 01107-08258.

01500-08257

$2.50
