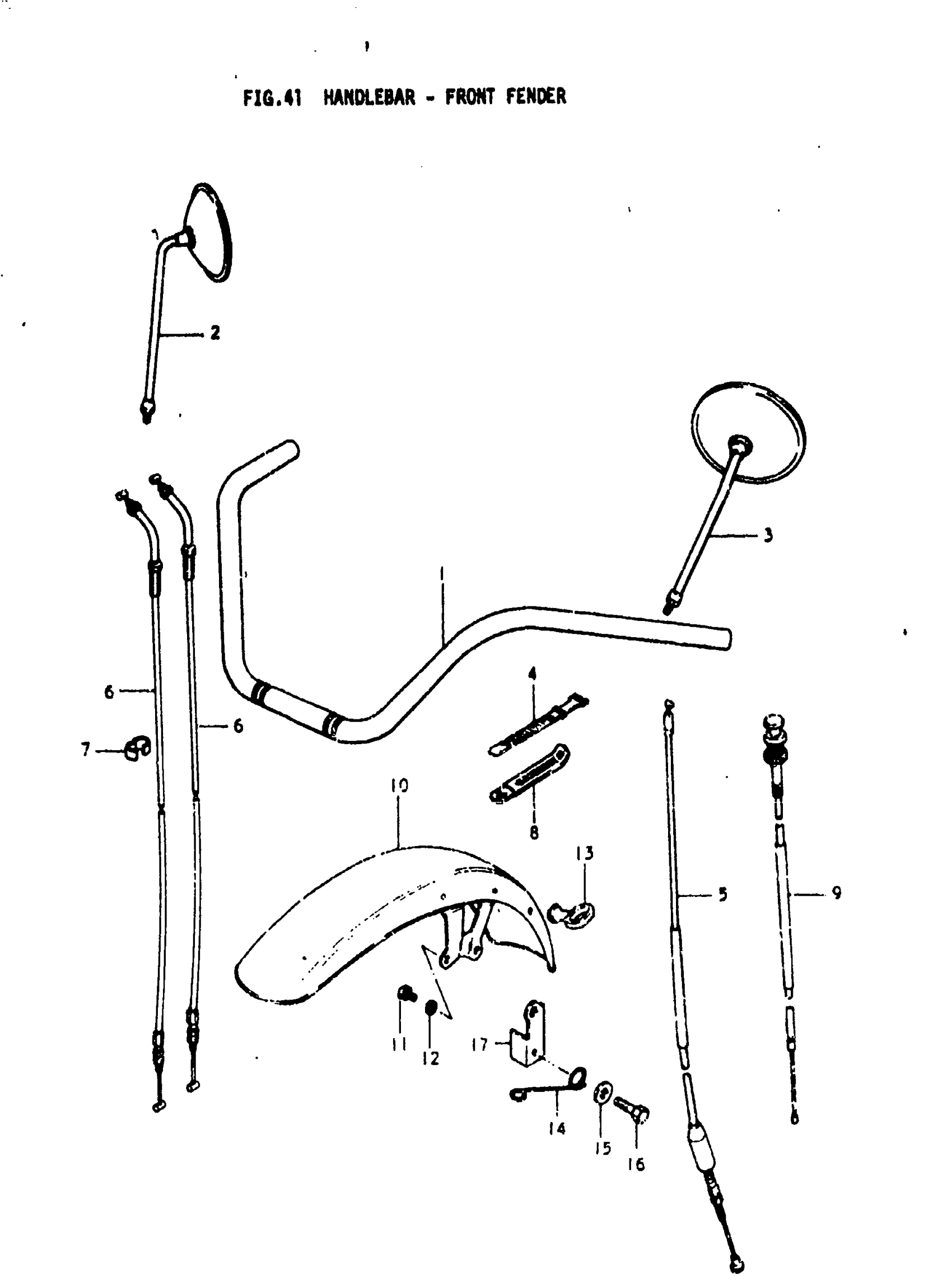

Suzuki GS750L (1979) HANDLEBAR - FRONT FENDER Diagram

#

Description
Price

1

HANDLEBAR

56111-45200

Unavailable

2

MIRROR ASSY,RR This part replaces 56500-49100.

56500-44202

$69.23

3

MIRROR ASSY,LH This part replaces 56600-49100.

56600-44202

$97.60

4

BAND | L:120

09407-12402

$3.04

5

CABLE,CLUTCH This part replaces 58200-45200.

58200-45201

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 58300-45200.

58300-45X03

Unavailable

7

CLIP

09408-00002

$2.30

8

CLAMP This part replaces 09404-06403.

09404-06039

$1.74

9

CABIL, STARTER This part replaces 58400-45000.

58400-45100

Unavailable

10

FENDER, FRONT This part replaces 53110-49110.

53110-45311

Unavailable

11

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68

14

CLAMP, METER CABLE

34938-37000

$3.73

15

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

16

BOLT This part replaces 01107-06128.

01500-06127

$1.97

17

BRACKET, CABLE CLAMP

34926-49101

Unavailable
