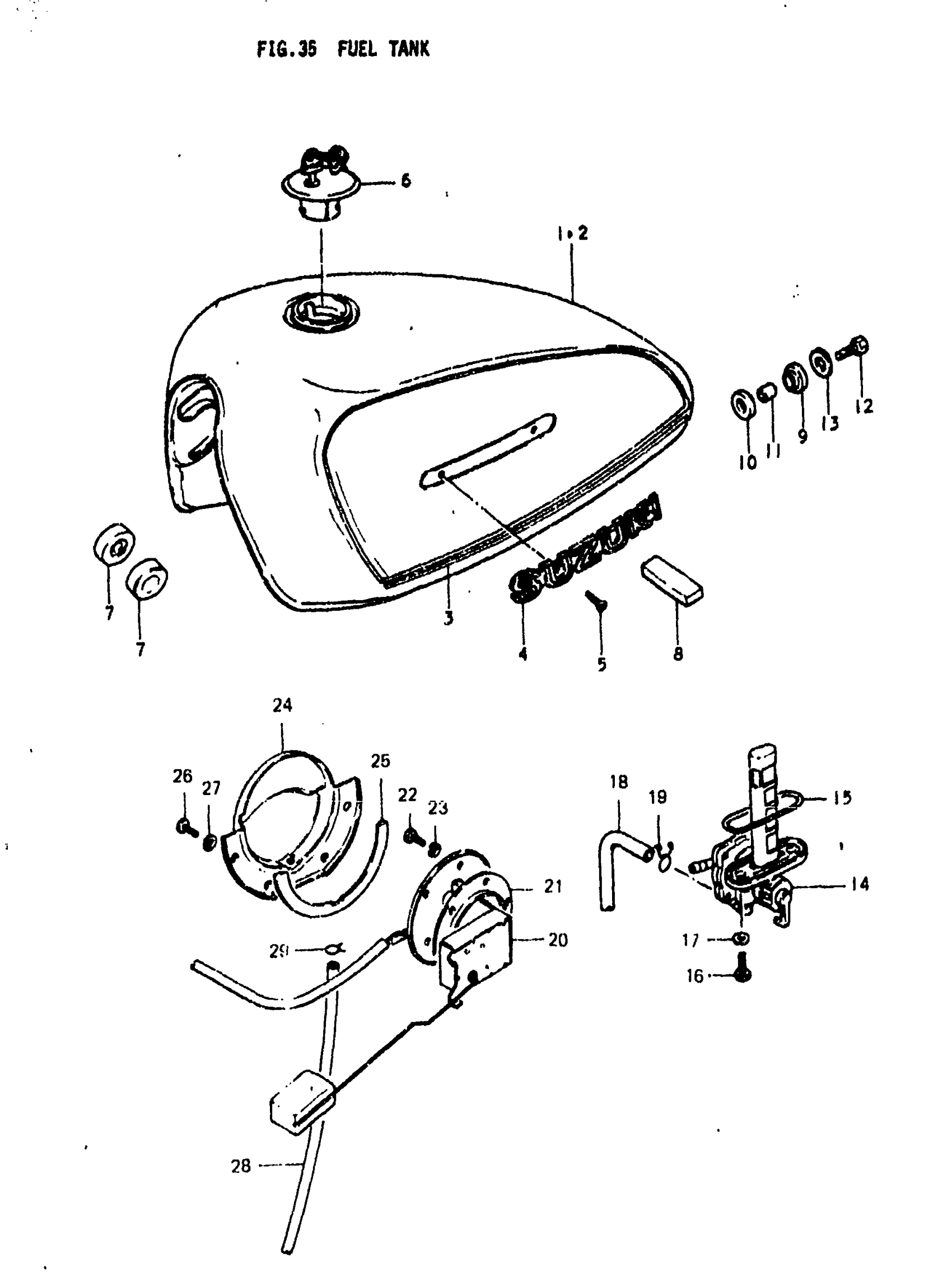

Suzuki GS750L (1979) FUEL TANK Diagram

NO DESCRIPTION AVAILABLE | TO: 44100.45201.08H TO: 44100.45201.08J This part replaces 44100-45201-08H.

44110-47200-13L

Unavailable

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 This part replaces 44100-45201-08J.

44110-47200-13L

Unavailable

TAPE SET | USE WITH THE ABOVE 1 OF 44300.472702 OF 09128.06024

68102-45810-764

Unavailable

EMBLEM This part replaces 68111-45200.

68111-45010

$24.36

SCREW This part replaces 02132-03065.

02122-0306B

$2.26

CAP SET,FUEL TA This part replaces 44200-30702.

44200-30832

$94.67

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

CUSHION FUEL TA This part replaces 09329-01005.

09329-01008

$4.77

CUSHION, REAR NO. 1

09320-12013

$2.60

CUSHION, REAR NO. 2

09320-12017

$2.18

SPACER 8.2X12X1 This part replaces 09180-08032.

09180-08143

$3.77

BOLT This part replaces 01107-08308.

01500-08307

$3.04

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

COCK ASSY, FUEL | Includes Item(s) 15

44300-45270

Unavailable

O RING This part replaces 44348-49170.

44348-49171

$2.88

BOLT This part replaces 09128-06006.

09128-06057

$1.65

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.35

HOSE(7X10.2X200 | @:250 This part replaces 09343-07026.

09352-70104-00B

$15.32

CLIP

09401-10403

$1.65

GAUGE ASSY, FUEL LEVEL | Includes Item(s) 21 This part replaces 34810-45200.

34810-45300

Unavailable

GASKET

34825-45100

$5.80

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

PLATE This part replaces 34885-49001.

34885-49005

Unavailable

GASKET,FUEL DRA This part replaces 34888-49000.

34888-49001

Unavailable

SCREW This part replaces 02112-05088.

02112-05087

$1.49

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

HOSE This part replaces 09343-05037.

09352-50005-00B

$13.93

CLIP

09401-08402

$1.49
