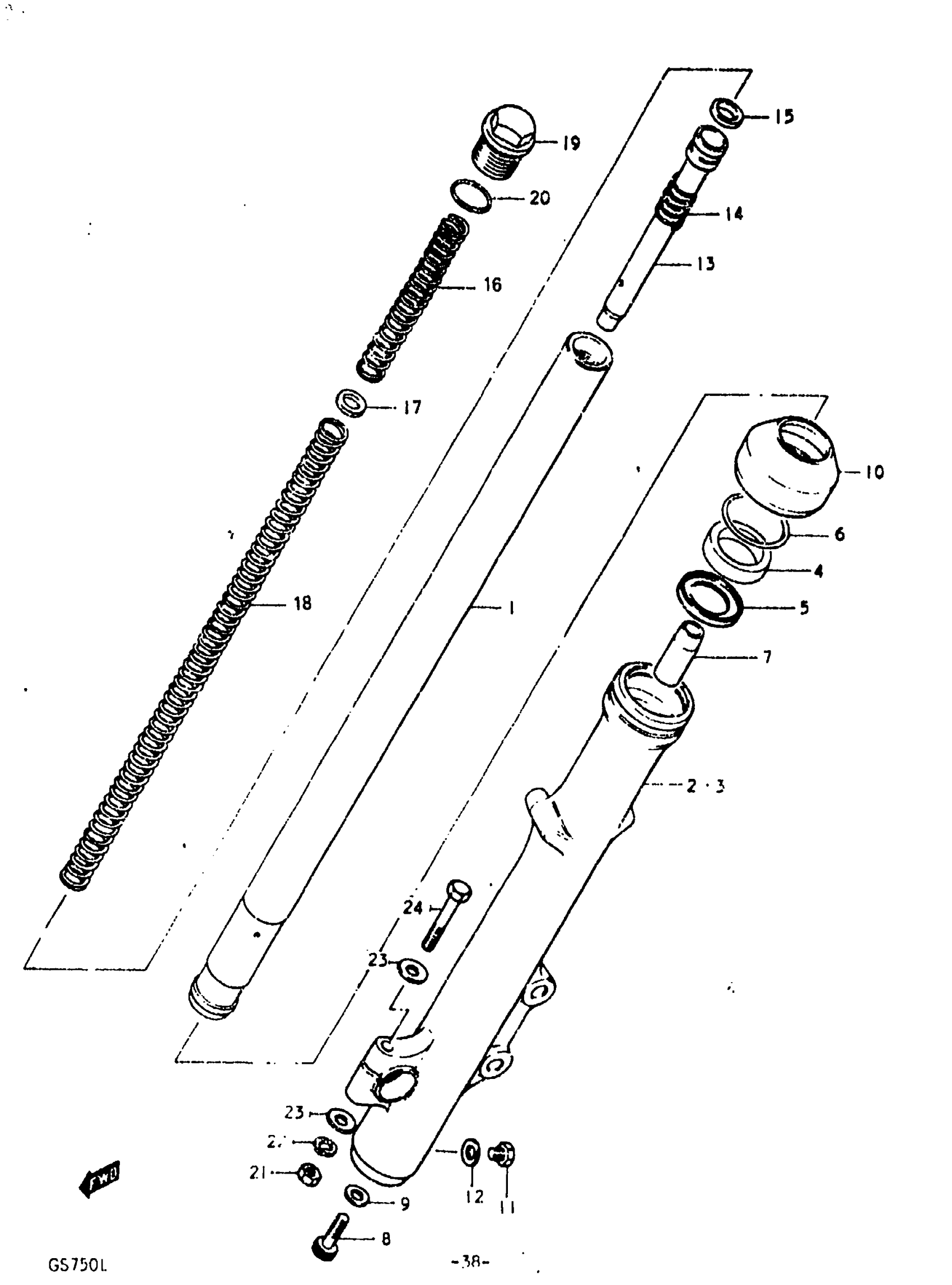

Suzuki GS750L (1979) FRONT FORK Diagram

#

Description
Price

0

DUMPER ASSY, RH

51103-45200

Unavailable

0

DUMPER ASSY, LH | Includes Item(s) 1 - 24

51104-45200

Unavailable

1

INNER TUBE

51110-45200

Unavailable

2

OUTER TUBE, RH

51130-45200

Unavailable

3

OUTER TUBE, LH

51140-45200

Unavailable

4

OIL SEAL

51153-45200

Unavailable

5

SPACER

51168-45200

Unavailable

6

RING, STOPPER This part replaces 51156-31231.

51156-01A00

$4.34

7

PIECE, OIL LOCK

51195-45030

Unavailable

8

BOLT

51147-48130

$4.34

9

O RING This part replaces 51148-31030.

51148-36011

$3.56

10

DUSTSEAL This part replaces 51571-45200.

51571-34320

Unavailable

11

BOLT This part replaces 01107-06108.

01500-06107

$2.06

12

GASKET

51183-31030

$3.77

13

CYLINDER

51146-45200

Unavailable

14

SPRING, REBOUND

51177-45030

Unavailable

15

PISTON RING

51196-45200

$8.42

16

SPRING, MAIN | L.167

51171-45200

Unavailable

17

WASHER

51192-45200

Unavailable

18

SPRING, UPPER | L:476

51184-45200

Unavailable

19

CAP, UPPER

51351-45200

Unavailable

20

O RING

51117-45200

Unavailable

21

NUT This part replaces 08310-12088.

08310-00087

$2.13

22

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

23

WASHER This part replaces 08322-21088.

08322-01087

$2.13

24

BOLT This part replaces 01107-08508.

01500-08507

$3.05
