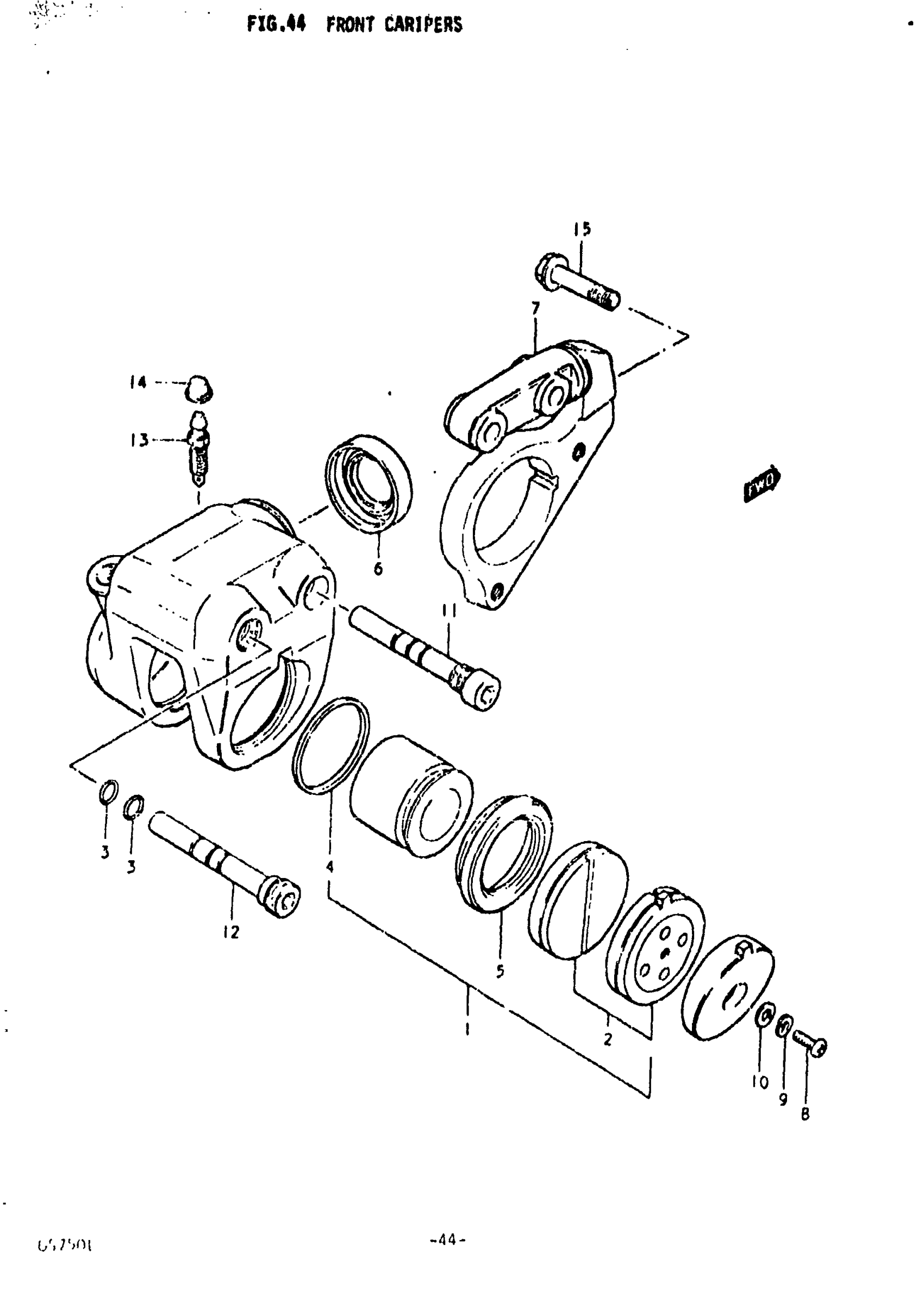

Suzuki GS750L (1979) FRONT CARIPERS Diagram

#

Description
Price

0

CARIPERS ASSY, FRONT RH

59100-47050

Unavailable

0

CARIPERS ASSY, FRONT LH | Includes Item(s) 1 - 14

59300-47050

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 59100-47860.

59100-47861

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 59300-47850.

59300-47880

Unavailable

3

O RING

59111-34020

Unavailable

4

PISTON SEAL This part replaces 59107-34020.

59107-34021

Unavailable

5

PISTON BOOTS This part replaces 59108-34020.

59108-34021

Unavailable

6

BOOT, HOLDER

59112-34020

Unavailable

7

HOLDER, CARIPERS RH

59150-47050

Unavailable

7

HOLDER, CARIPERS LH

59350-47050

Unavailable

8

SCREW

02112-05107

$1.49

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

10

WASHER This part replaces 08322-21058.

08322-01057

$2.13

11

AXLE, CARIPERS NO.1

59305-45020

Unavailable

12

AXLE, CARIPERS NO.2

59306-45020

Unavailable

13

BREATHER This part replaces 59121-47050.

59121-34020

$13.35

14

CAP, BLEEDER This part replaces 52474-60020.

55156-66310

$5.17

15

BOLT (10X40) This part replaces 01517-10408.

01550-10407

$4.68
