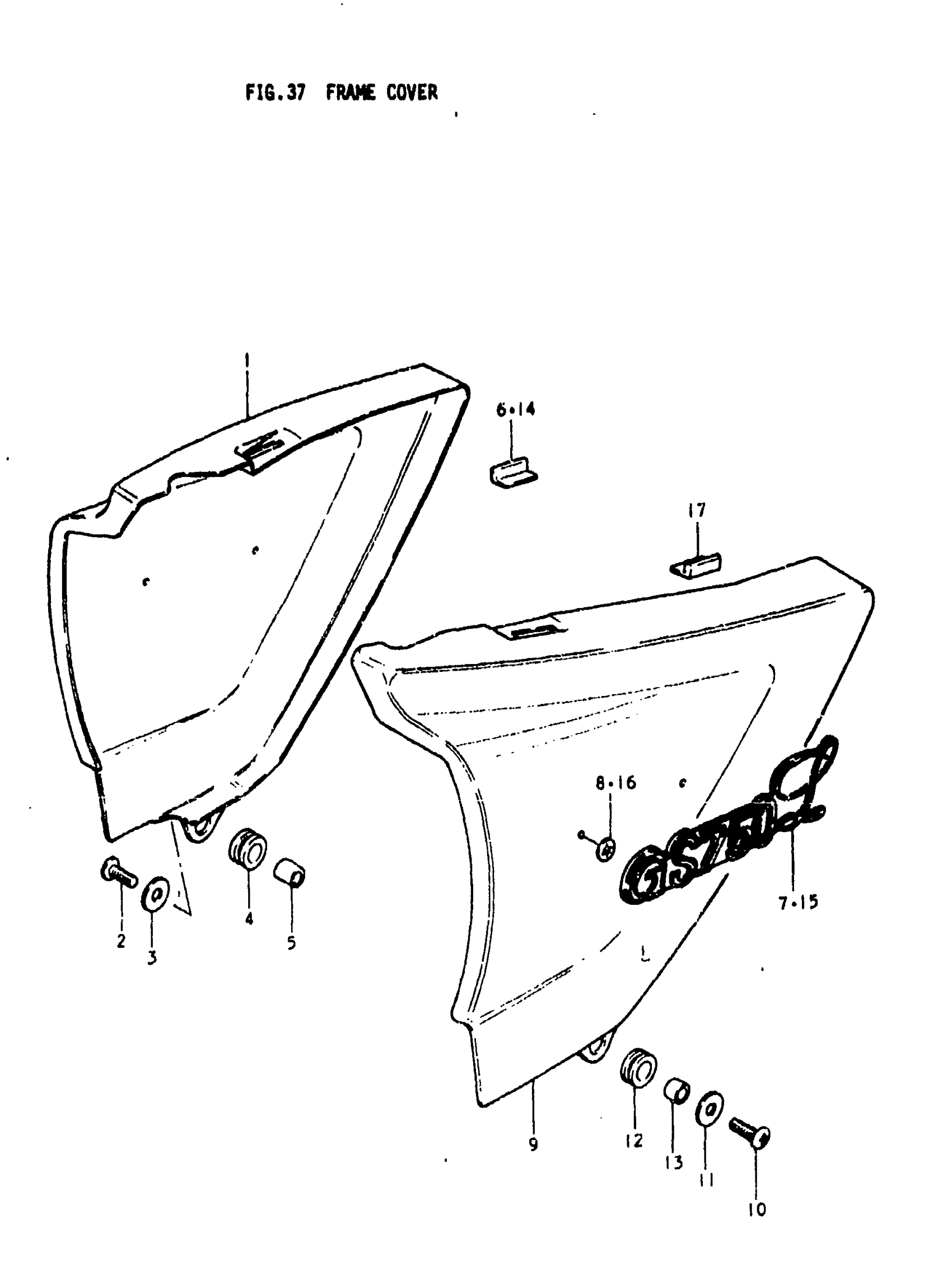

Suzuki GS750L (1979) FRAME COVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 47111-45200-08H.

47111-45200

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 47111-45200-08J.

47111-45200

Unavailable

2

SCREW This part replaces 09125-06015.

02112-0620A

$1.49

3

WASHER (6.5X18X1.6) | 6.5x18x1.6 This part replaces 09160-06039.

09160-06109

$1.49

4

CUSHION This part replaces 09320-10008.

09320-10075

$1.93

5

SPACER (6.5X10X10) | 6.8x10x10 This part replaces 09180-06030.

09180-06310

$1.91

6

CUSHION

47117-45000

$2.14

7

EMBLEM

68131-45200

Unavailable

8

NUT

09148-03002

$2.15

9

NO DESCRIPTION AVAILABLE This part replaces 47211-45200-08H.

47211-45200

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 47211-45200-08J.

47211-45200

Unavailable

10

SCREW This part replaces 09125-06015.

02112-0620A

$1.49

11

WASHER (6.5X18X1.6) | 6.5x18x1.6 This part replaces 09160-06039.

09160-06109

$1.49

12

CUSHION This part replaces 09320-10008.

09320-10075

$1.93

13

SPACER (6.5X10X10) | 6.8x10x10 This part replaces 09180-06030.

09180-06310

$1.91

14

CUSHION

47117-45000

$2.14

15

EMBLEM

68131-45200

Unavailable

16

NUT

09148-03002

$2.15

17

CUSHION, FRAME COVER

47117-02400

$2.37
