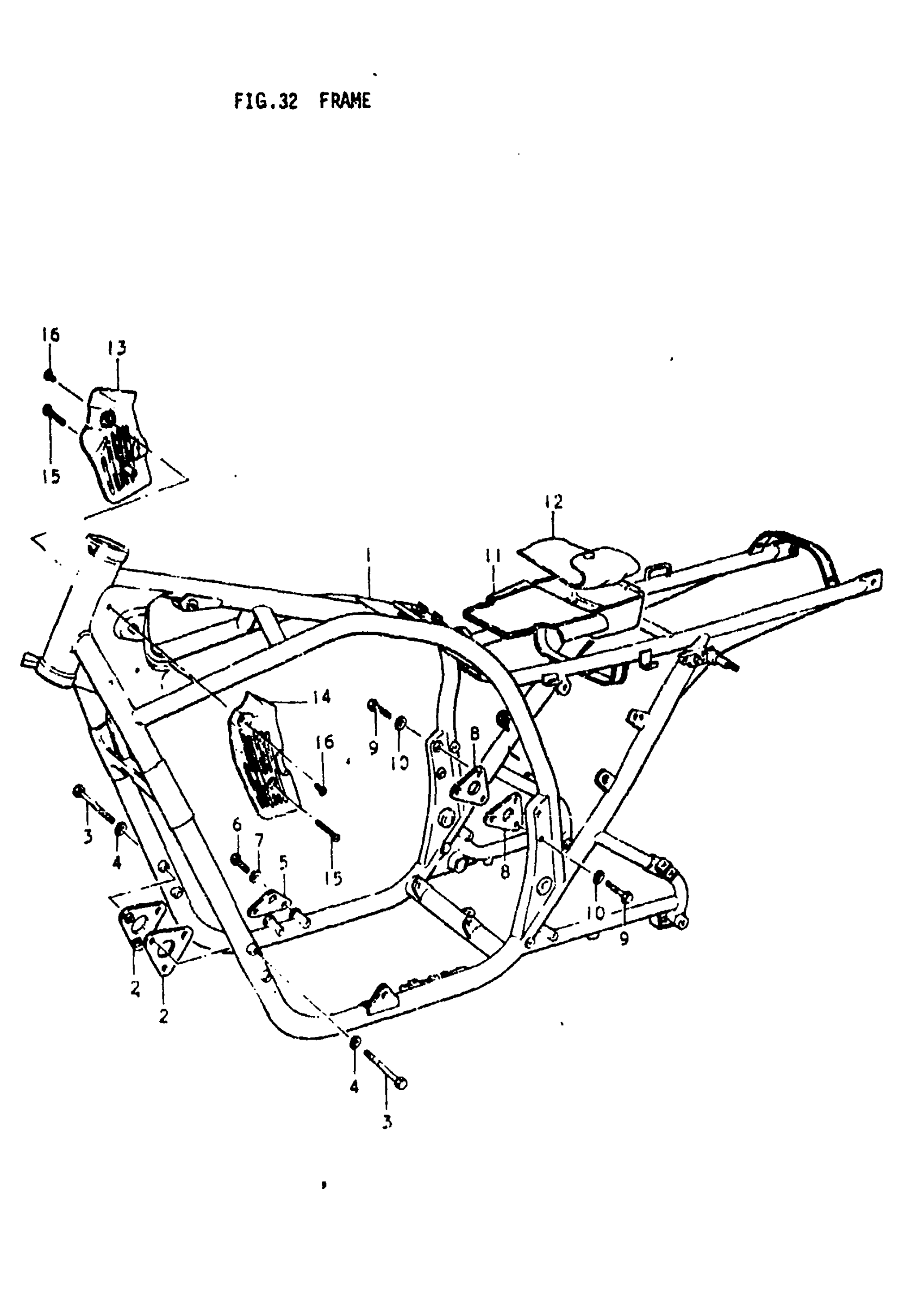

Suzuki GS750L (1979) FRAME Diagram

#

Description
Price

1

FRAME

41100-45200-019

Unavailable

2

PLATE, ENGINE MOUNTING NO. 1

41910-45010-019

Unavailable

3

BOLT This part replaces 01107-08658.

01500-0865B

$3.49

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

PLATE, ENGINE MOUNTING NO. 2

41993-45000-019

Unavailable

6

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

PLATE, ENGINE MOUNTING NO. 3

41990-45000-019

Unavailable

9

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

HOLDER, TOOL

41551-45002

Unavailable

12

TOOL ASSY This part replaces 09800-00192.

09800-21068

Unavailable

13

COVER, FRAME HEAD RH

51876-45200

Unavailable

14

COVER, FRAME HEAD LH

51886-45200

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 02142-05505.

02142-05503

Unavailable

16

SCREW This part replaces 02142-05105.

02142-0510B

$1.78
