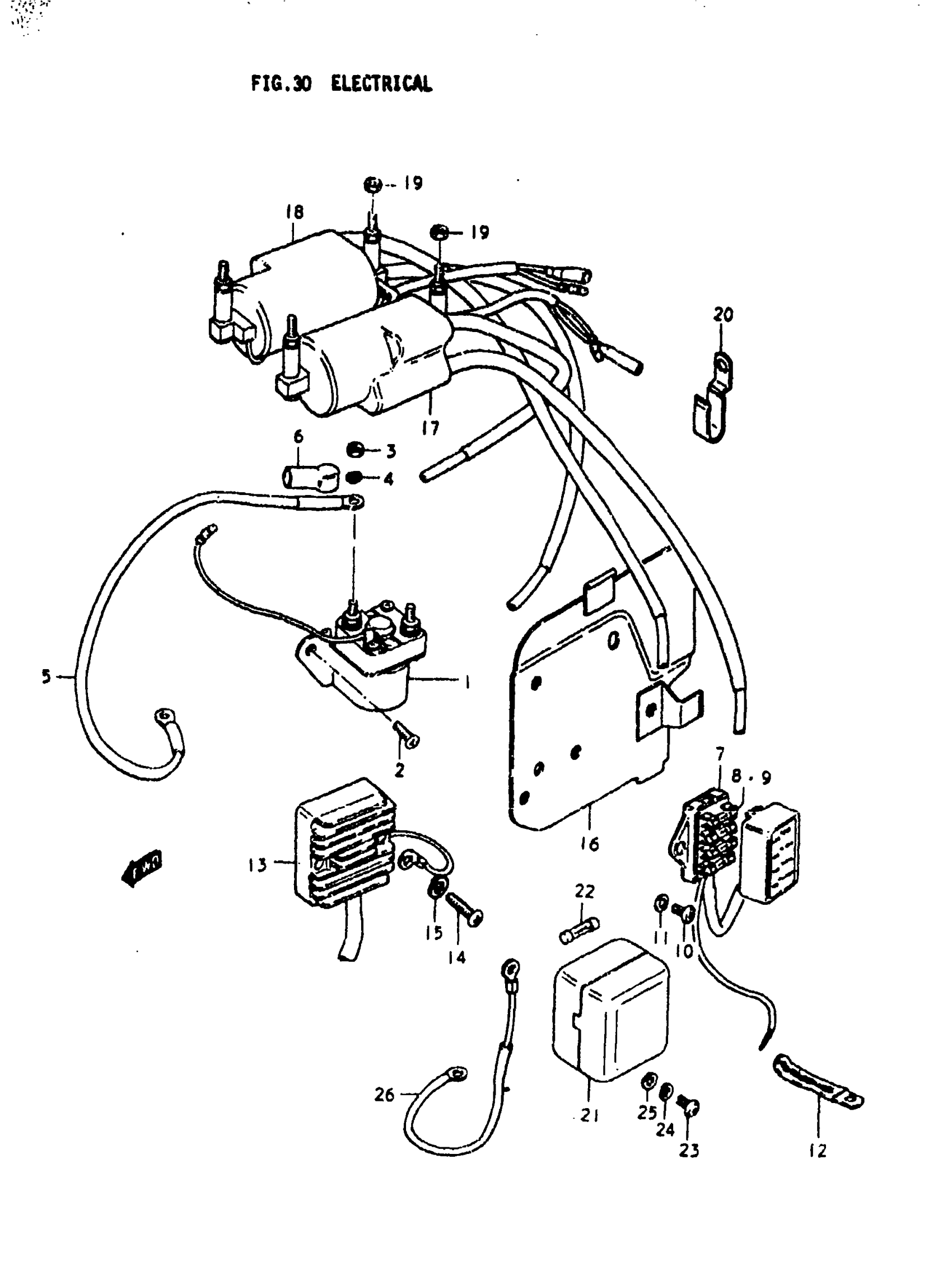

Suzuki GS750L (1979) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-37020.

31800-37021

$71.42

2

SCREW This part replaces 02112-06108.

02112-06107

$1.49

3

.NUT This part replaces 08310-22068.

08310-00067

$2.13

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

LEAD WIRE, STARTING MOTOR

33850-47010

Unavailable

6

CAP, STARTER MOTOR This part replaces 31861-35100.

31861-48B10

$6.55

7

FUSE BOX ASSY | Includes Item(s) 8 - 9 This part replaces 36740-49001.

36740-49X00

Unavailable

8

FUSE | 10A

09481-10001

$1.71

9

FUSE | 15A

09481-15001

$2.06

10

SCREW This part replaces 02112-06128.

02112-06127

$1.84

11

WASHER This part replaces 08322-21068.

08322-01067

$2.13

12

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

13

RECTIFIER ASSY This part replaces 32800-45110.

32800-49X50

Unavailable

14

SCREW This part replaces 02112-06108.

02112-06107

$1.49

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

PLATE, ELECTRIC PARTS HOLDER

47410-45010

Unavailable

17

COIL ASSY,IGNIT This part replaces 33410-45010.

33410-45012

Unavailable

18

COIL ASSY,IGNIT This part replaces 33420-45010.

33410-45012

Unavailable

19

.NUT This part replaces 08310-11068.

08310-00067

$2.13

20

CLAMP This part replaces 09403-06307.

09403-06329

$2.32

21

TERMINAL, POWER SOURCE | Includes Item(s) 22

38850-47000

Unavailable

22

FUSE | 10A

09481-10001

$1.71

23

SCREW This part replaces 02112-06168.

02112-06167

$1.49

24

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

25

WASHER This part replaces 08322-21068.

08322-01067

$2.13

26

LEAD WIRE

36851-47000

Unavailable
