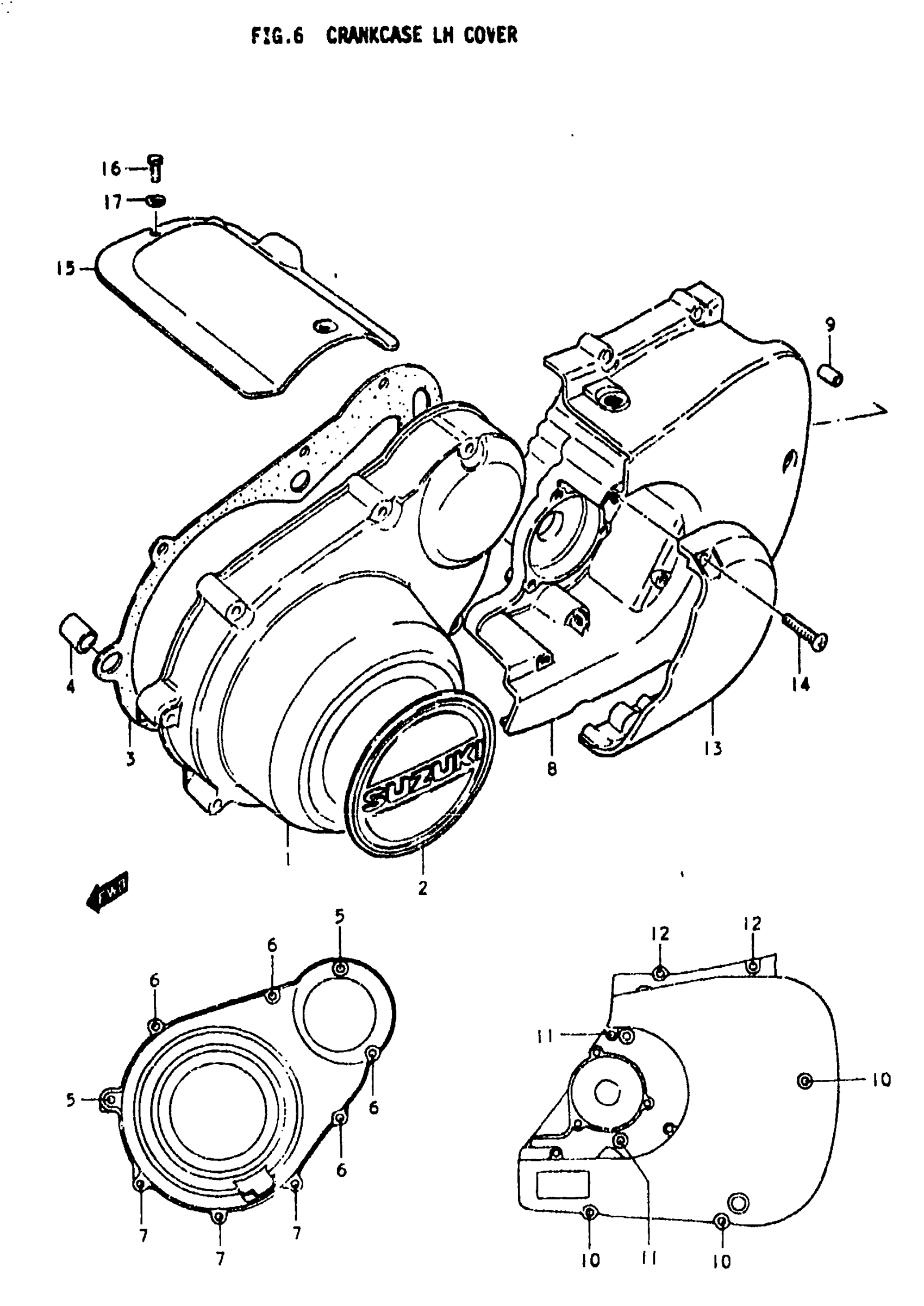

Suzuki GS750L (1979) CRANKCASE LH COVER Diagram

#

Description
Price

1

COVER, GENERATOR This part replaces 11351-45000.

11351-45001

Unavailable

2

EMBLEM

68233-45200

$18.50

3

GASKET,MAG COVE This part replaces 11483-45000.

11483-45000-H17

$11.75

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

6

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

7

SCREW This part replaces 02112-06358.

02112-06357

$1.78

8

COVER, ENGINE SPROCKET

11361-45002

Unavailable

9

PIN

04211-09129

$1.65

10

SCREW This part replaces 02112-06858.

02112-06857

$2.62

11

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

12

SCREW This part replaces 02112-06258.

02112-06257

$1.78

13

CAP, CLUTCH RELEASE

11387-45000

Unavailable

14

SCREW, PIVOT This part replaces 02112-05256.

02112-0525A

$1.49

15

COVER, STARTER MOTOR This part replaces 11382-49001.

11382-49002

$46.38

16

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

17

WASHER This part replaces 08322-21058.

08322-01057

$2.13
