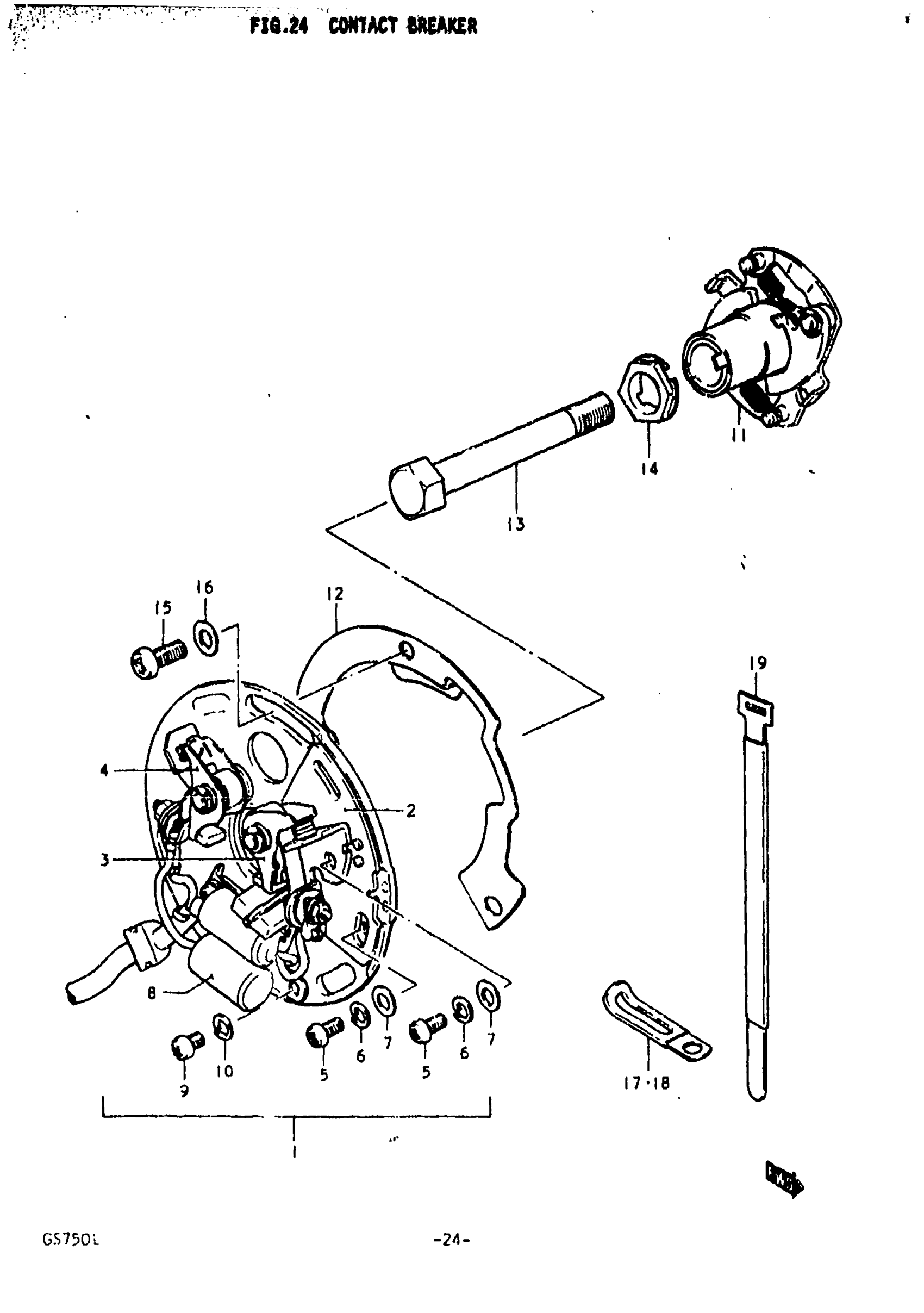

Suzuki GS750L (1979) CONTACT BREAKER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 10 This part replaces 33110-45010.

33110-45X00

Unavailable

2

PLATE, POINT SHIFTING

33143-45010

Unavailable

3

POINT ASSY, CONTACT RH

33172-36210

Unavailable

4

POINT ASSY, CONTACT LH

31440-36210

Unavailable

5

SCREW

09125-04001

Unavailable

6

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

7

WASHER This part replaces 08322-21048.

08322-01047

$1.86

8

CONDENSER This part replaces 32341-31010.

33261-33010

Unavailable

9

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

GOVERNOR ASSY, ADVANCE

33120-45011

Unavailable

12

PLATE, TIMING

33371-45001

Unavailable

13

BOLT This part replaces 01107-08608.

01500-0860B

$3.49

14

WASHER

33465-47000

Unavailable

15

SCREW

09125-05024

$1.72

16

WASHER This part replaces 08322-11058.

08322-01057

$2.13

17

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

18

CLAMP This part replaces 09404-08401.

09404-08420

$3.16

19

CLAMP | L:180 This part replaces 09407-18301.

09407-18302

$2.28
