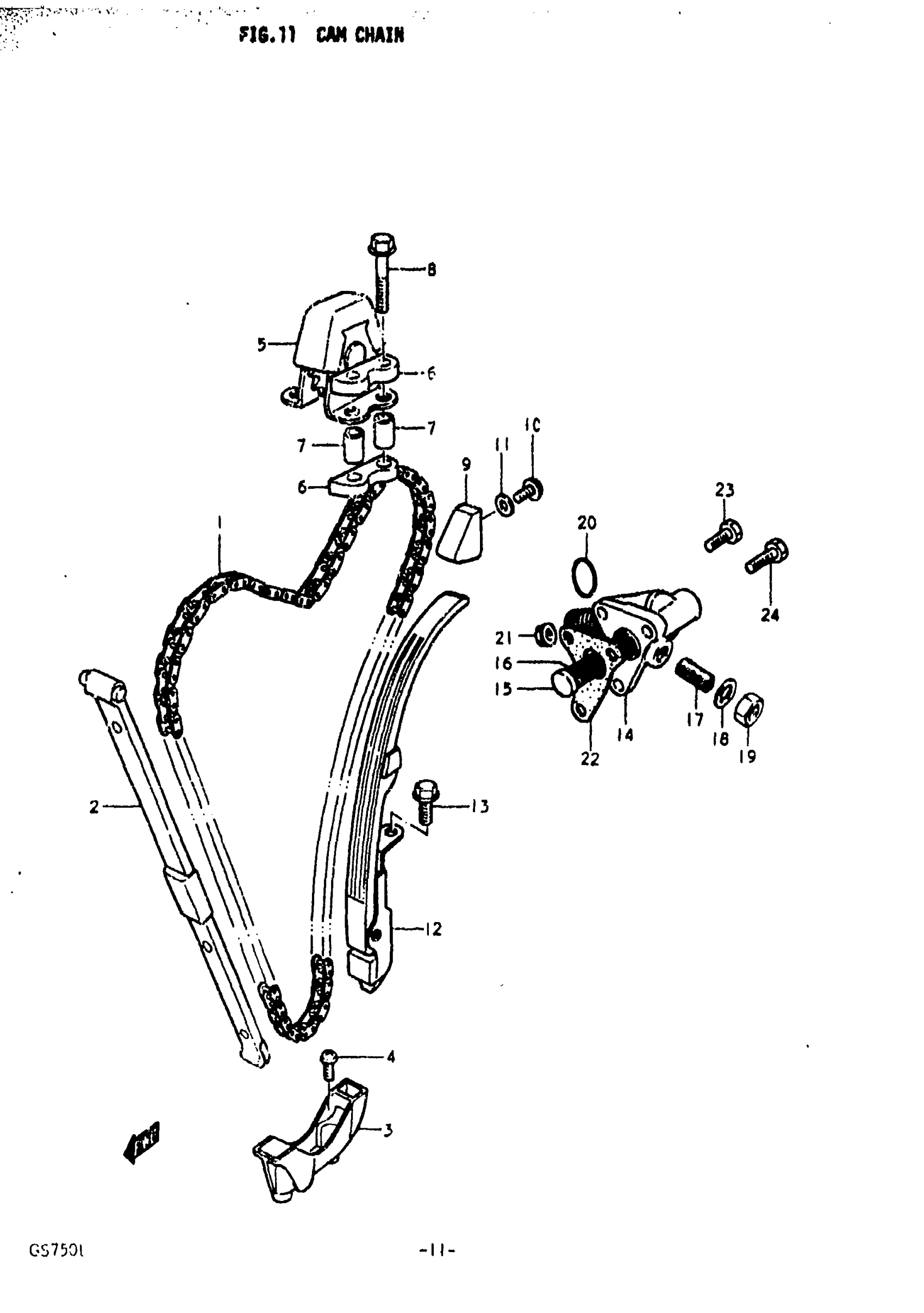

Suzuki GS750L (1979) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE | 120%

12760-45040

$149.60

2

GUIDE,CAM CHAIN This part replaces 12771-45040.

12771-45053

$40.00

3

HOLDER, CAM CHAIN GUIDE NO.1

12776-45001

Unavailable

4

SCREW This part replaces 02112-06208.

02112-06207

$1.78

5

IDLER, CAM CHAIN

12780-45050

Unavailable

6

CUSHION

12788-45050

Unavailable

7

SPACER (6.5X10X13) | 6.8x10x13 This part replaces 09180-06060.

09180-06291

$2.45

8

BOLT This part replaces 01517-06308.

01550-06307

$2.69

9

GUIDE, CAM CHAIN NO.2

12791-45040

$14.20

10

BOLT This part replaces 01517-06128.

01550-06127

$2.30

11

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

12

TENSIONER, CAM CHAIN

12810-45040

Unavailable

13

BOLT M8X16 This part replaces 01517-08168.

01550-08167

$2.85

14

ADJUSTER,TENSIO | Includes Item(s) 15 - 21 This part replaces 12830-45002.

12830-45003

Unavailable

15

PUSH ROD

12833-45001

Unavailable

16

SPRING

09440-12017

$2.45

17

SCREW

12838-45001

$8.42

18

WASHER This part replaces 08322-11088.

08322-01087

$2.13

19

NUT This part replaces 08310-12088.

08310-00087

$2.13

20

.O RING (D:1.9,ID:5.7) This part replaces 09280-06003.

09280-06005

$1.49

21

NUT This part replaces 09159-06017.

08319-31067

$2.03

22

GASKET,TENS ADJ This part replaces 12837-45000.

12837-45000-H17

Unavailable

23

BOLT, STARTING MOTOR This part replaces 09128-06012.

09103-06212

$2.47

24

BOLT

09128-06017

Unavailable
