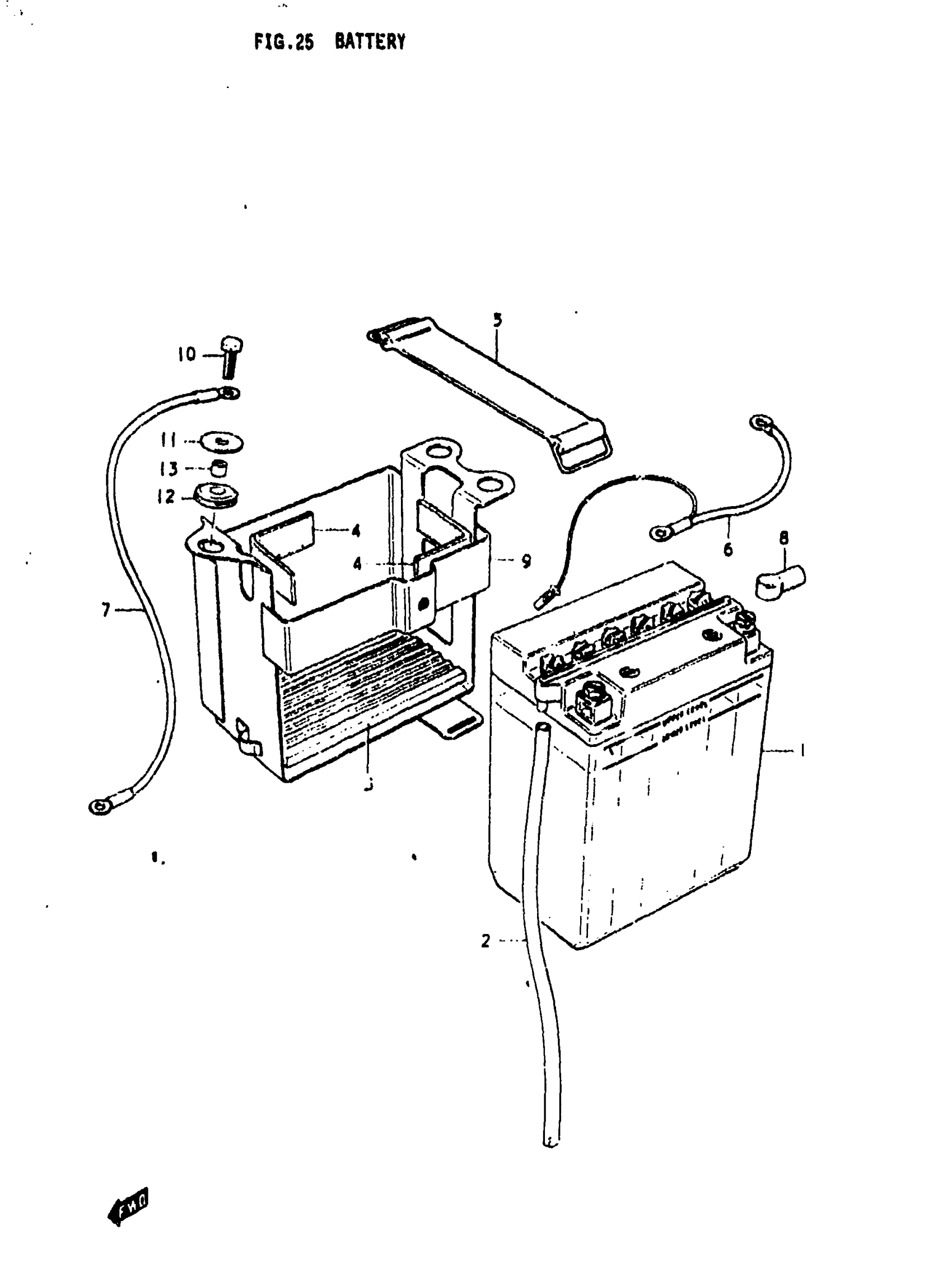

Suzuki GS750L (1979) BATTERY Diagram

#

Description
Price

1

BATTERY (12V,14AH) | 12V, 14AH This part replaces 33610-31010.

33610-49210

Unavailable

2

HOSE,BATTERY EX This part replaces 33680-31003.

33680-16A11

$6.78

3

CUSHION

33651-31000

$18.02

4

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.48

5

BAND

09462-00007

$4.11

6

WIRE,BATTERY PL This part replaces 33820-45001.

33820-44B01

Unavailable

7

LEAD WIRE, (-) This part replaces 33850-06200.

33850-03201

$9.94

8

CAP, TERMINAL

33624-45000

$4.58

9

HOLDER, BATTERY

41540-45020

Unavailable

10

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

11

WASHER | 6.5x22x1.6 This part replaces 09160-06012.

09160-06054

$1.62

12

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

13

SPACER | 6.2x8.3x5.7

09180-06001

$2.30
