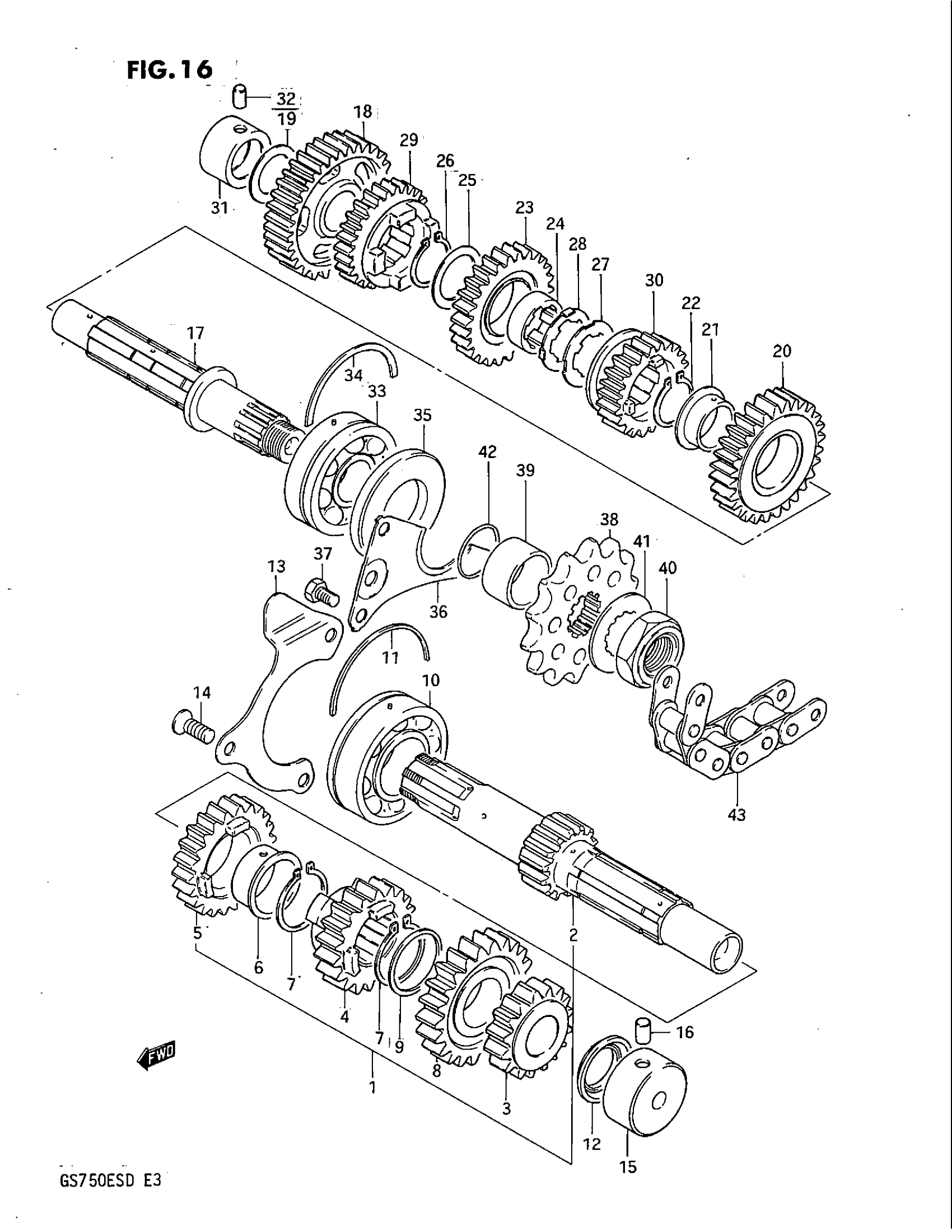

Suzuki GS750E (1983) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 9 This part replaces 24120-31300.

24120-31301

Unavailable

2

COUNTERSHAFT (NT:14) This part replaces 24121-31300.

24121-31302

Unavailable

3

GEAR, 2ND DRIVE (NT:16)

24221-31300

Unavailable

4

GEAR, 3RD DRIVE (NT:19) This part replaces 24231-31302.

24231-31304

Unavailable

5

GEAR, 4TH DRIVE (NT:23)

24241-31300

Unavailable

6

BUSH, 2ND DRIVEN This part replaces 09301-25001.

24322-19F00

$23.78

7

SNAP RING

09380-25003

$3.04

8

GEAR, 5TH DRIVE (NT:23)

24251-31302

Unavailable

9

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

10

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

11

C RING This part replaces 09390-62006.

09390-62012

$7.31

12

OIL SEAL

09285-20006

$6.51

13

HOLDER, BEARING

24741-31300

Unavailable

14

SCREW This part replaces 02122-06168.

02122-06167

$1.49

15

BEARING(20X34X1 This part replaces 09263-20049.

09263-20119

$55.20

16

PIN (L:12) | ~E.NO.116100

04221-07129

$1.86

16

PIN (L:20) | E.NO.116101~

04221-07209

$2.30

17

DRIVESHAFT This part replaces 24131-31300.

24131-31312

Unavailable

18

GEAR, 1ST DRIVEN (NT:35)

24310-31300

Unavailable

19

WASHER

08211-20341

$2.80

20

GEAR, 2ND DRIVEN (NT:28)

24321-31300

Unavailable

21

BUSH

09301-28001

$19.93

22

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

23

GEAR, 3RD DRIVEN (NT:26)

24331-31300

Unavailable

24

BUSH

24332-49000

$17.68

25

WASHER, RH

09167-28001

$4.60

26

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

27

WASHER, LH (T:1.5)

09167-28002

$4.77

28

WASHER, LH (T:1.0)

09169-28001

$3.85

29

GEAR, 4TH DRIVEN (NT:26) This part replaces 24341-31301.

24341-31303

Unavailable

30

GEAR, 5TH DRIVEN (NT:22)

24351-31301

Unavailable

31

BEARING, RH

09263-20040

$55.20

32

PIN (L:12) | ~E.NO.116100

04221-07129

$1.86

32

PIN (L:20) | E.NO.116101~

04221-07209

$2.30

33

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

34

C RING This part replaces 09390-62006.

09390-62012

$7.31

35

OIL SEAL

09283-33002

Unavailable

36

PLATE

24751-31300

Unavailable

37

BOLT This part replaces 01107-06108.

01500-06107

$2.06

38

SPROCKET, ENGINE (NT:14) This part replaces 27511-43400.

27510-21E00

Unavailable

39

SPACER

09180-25066

Unavailable

40

NUT This part replaces 09159-20001.

09159-20004

$15.67

41

WASHER (25.3X41.6X1) This part replaces 09167-25014.

09167-25019

$2.19

42

O RING

09280-25001

$1.56

43

NO DESCRIPTION AVAILABLE This part replaces 27600-31310.

27600-17E10-112

Unavailable
