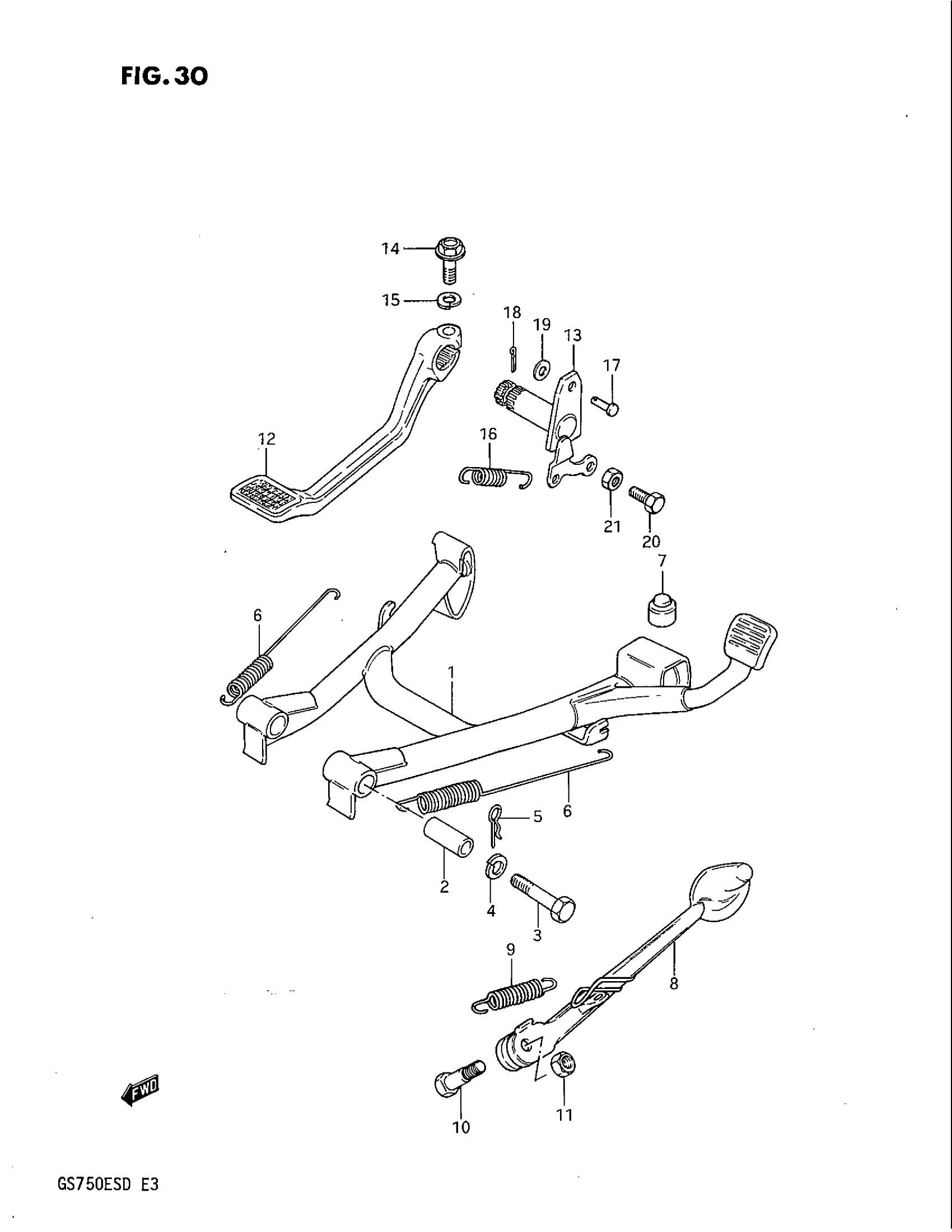

Suzuki GS750E (1983) STAND Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 42100-31301.

42100-08A00

Unavailable

2

SPACER (10.7x15.9x38)

09180-10040

$2.56

3

BOLT, 10 X 65 This part replaces 09101-10018.

09101-10030

Unavailable

4

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

5

CLIP This part replaces 09385-10001.

09385-10005

$1.56

6

SPRING This part replaces 09443-18008.

09443-17017-XC0

Unavailable

7

CUSHION

09321-10001

$2.61

8

STAND, PROP

42310-31301

Unavailable

9

SPRING

09443-15016

Unavailable

10

BOLT

09111-10024

Unavailable

11

NUT This part replaces 08310-22108.

08310-00107

$2.19

12

PEDAL, BRAKE

43111-31300

Unavailable

13

ARM, BRAKE PEDAL ROD This part replaces 43120-31300.

43120-31301

Unavailable

14

BOLT This part replaces 01527-08258.

01550-08257

$2.81

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

SPRING

09443-14013

$2.98

17

PIN

09200-06029

Unavailable

18

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

19

WASHER This part replaces 08322-21068.

08322-01067

$2.13

20

BOLT This part replaces 01107-06258.

01500-06257

$1.97

21

.NUT This part replaces 08310-11068.

08310-00067

$2.13
