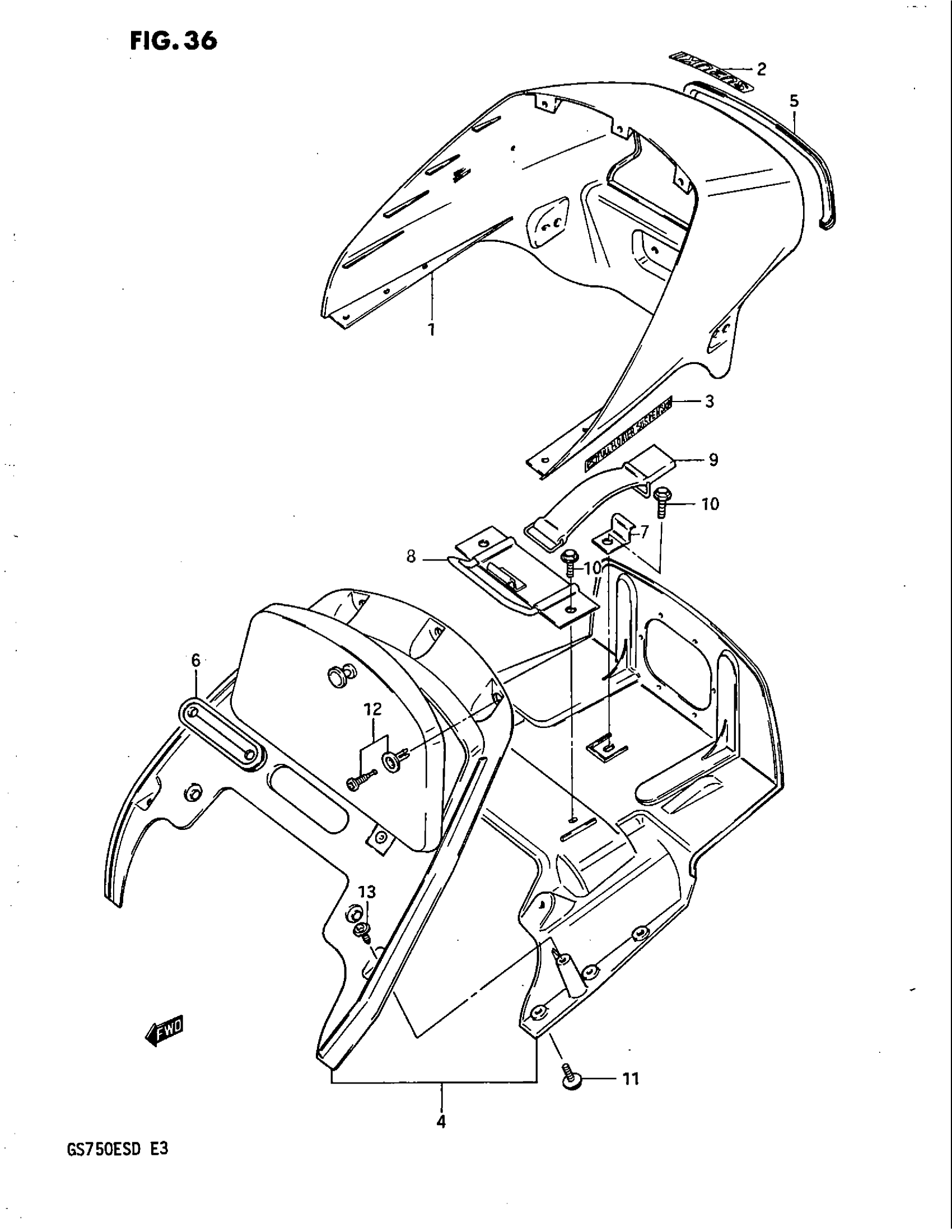

Suzuki GS750E (1983) SEAT TAIL COVER (GS750ESD) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 45510-31320-16D.

45511-31320

Unavailable

2

EMBLEM,"SUZUKI" This part replaces 68166-31300-07G.

68166-31310-719

Unavailable

3

EMBLEM, FULL FLOATER

68235-04700-87W

Unavailable

4

FLAP SET, SEAT TAIL COVER This part replaces 45515-31300.

45515-31301

Unavailable

5

MOLD, SEAT TAIL

45562-31300

Unavailable

6

GROMMET

45522-31300

Unavailable

7

PLATE, CHAIN LOCK

45225-31300

Unavailable

8

PLATE, SEAT HOOK REAR | Includes Item(s) 9

45220-31300

Unavailable

9

BAND

09462-00040

$5.76

10

BOLT This part replaces 01547-06165.

01547-0616B

$2.45

11

SCREW This part replaces 02152-05085.

02112-0508A

$1.49

12

CLIP This part replaces 09409-06307.

09409-06322-5PK

$3.10

13

SCREW This part replaces 03151-05125.

03141-0512A

$1.70
