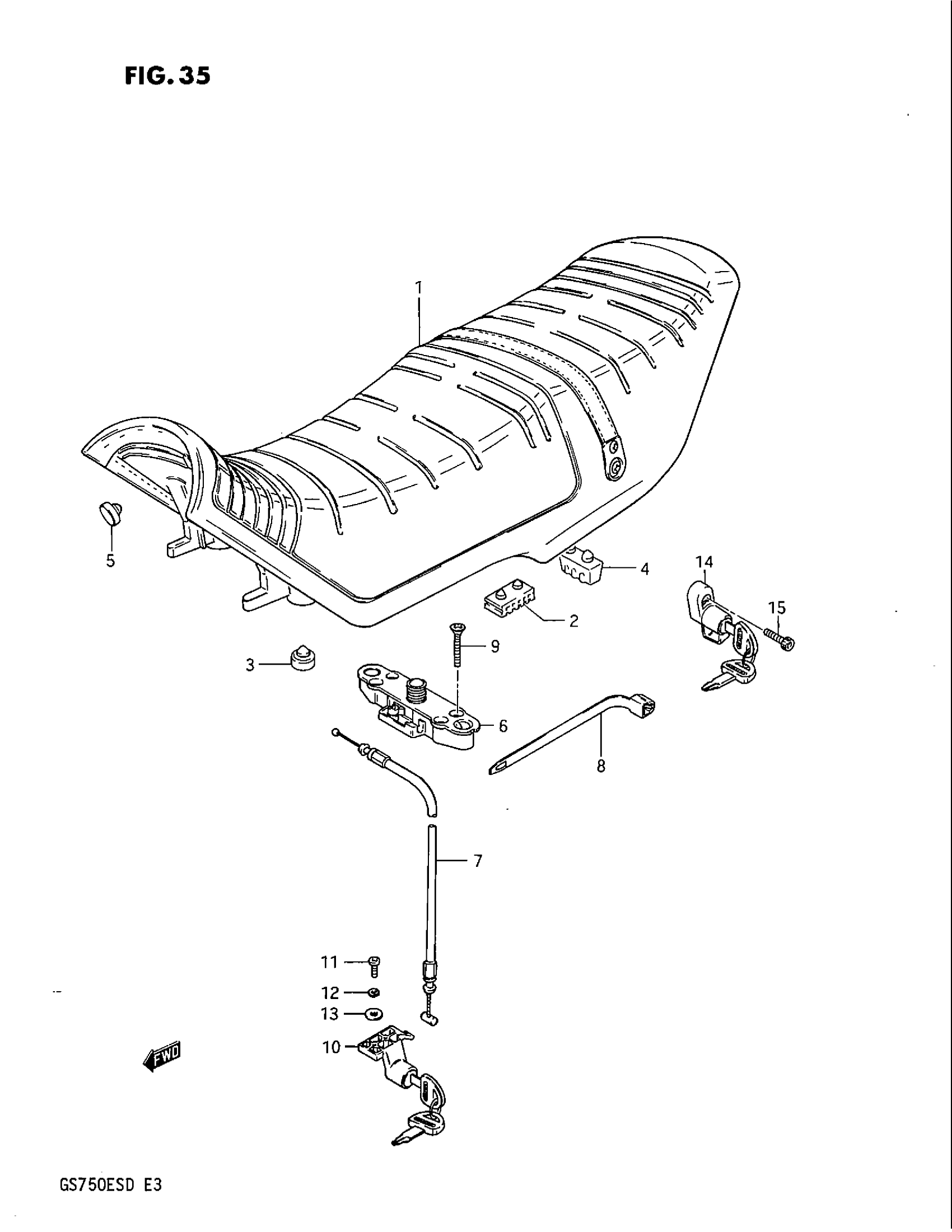

Suzuki GS750E (1983) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 45100-31300-50C.

45100-31301-48H

Unavailable

2

CUSHION

45149-31300

$3.56

3

CUSHION

09321-10002

$2.22

4

CUSHION

09321-10001

$2.61

5

CUSHION

45149-45330

$3.89

6

CUSHION

45256-31300

Unavailable

7

LOCK ASSY, SEAT STRIKER This part replaces 45220-13600.

45220-13601

$80.52

8

CABLE, SEAT LOCK

45280-31300

Unavailable

9

CLAMP

09407-18402

$2.19

10

SCREW This part replaces 02122-06306.

02122-0630B

$2.06

11

LOCK, SEAT

45700-31300-KEY

Unavailable

12

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

14

WASHER This part replaces 08322-21058.

08322-01057

$2.13

15

LOCK SET, HELMET This part replaces 95700-31300-KEY.

95700-31810

Unavailable

16

BOLT This part replaces 09106-06036.

07130-0616B

$2.39
