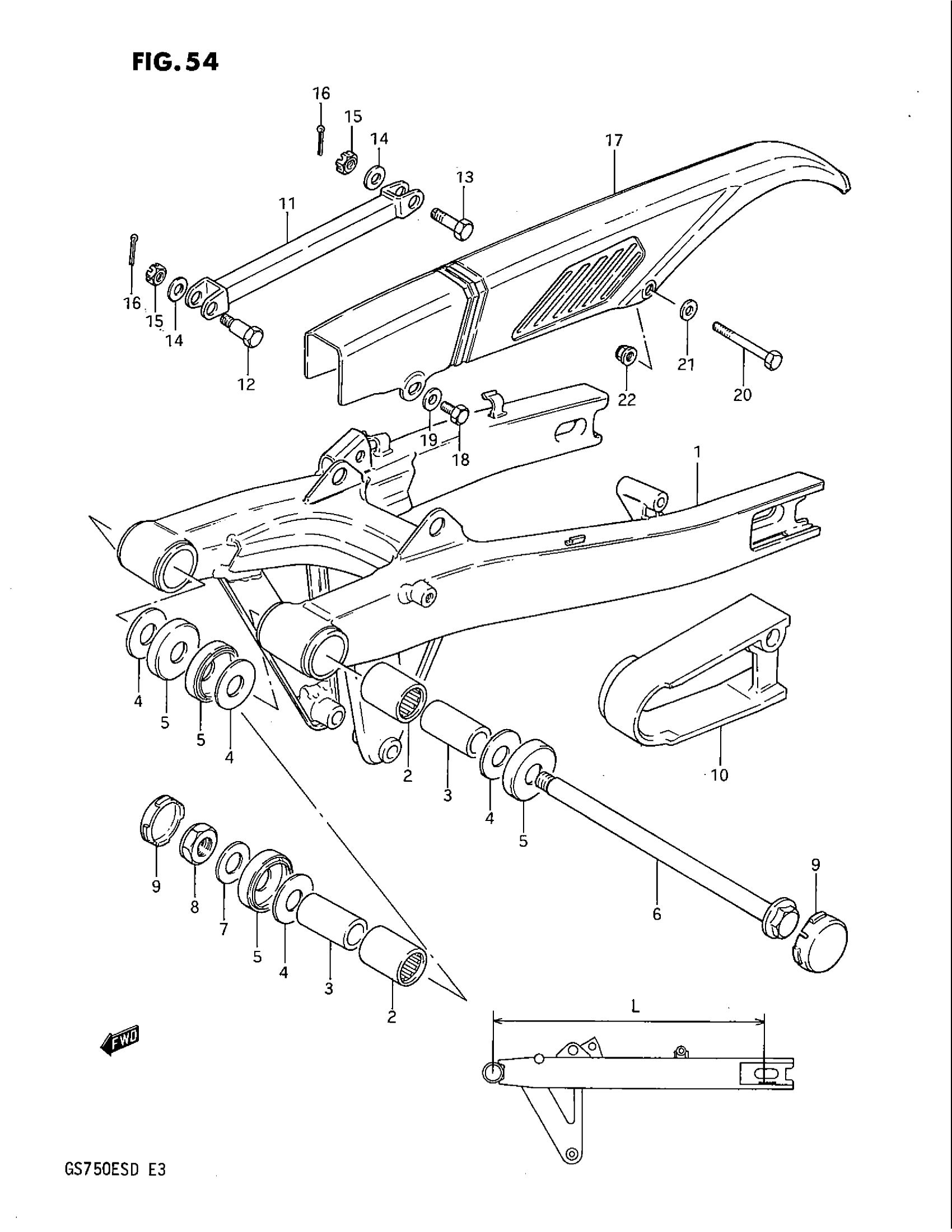

Suzuki GS750E (1983) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | ~F.NO.103290 This part replaces 61000-31301.

61000-31303

Unavailable

1

NO DESCRIPTION AVAILABLE | WITH 64310-34301-291F.NO.103291~; Includes Item(s) 2 - 3 This part replaces 61000-31302.

61000-31303

Unavailable

2

BEARING

09263-25024

$25.92

3

BUSHING | FOR 61000-31303

61261-31300

Unavailable

4

SPACER

61251-31300

Unavailable

5

WASHER

08211-16381

$2.42

6

COVER,RR SWINGI This part replaces 61262-49201.

61262-49202

$10.33

7

SHAFT, PIVOT

61211-31310

Unavailable

8

WASHER This part replaces 08322-11148.

08322-01147

$1.91

9

NUT This part replaces 09159-14013.

09159-14019

$11.61

10

CAP This part replaces 61222-31300.

61222-31301

Unavailable

11

BUFFER, CHAIN DEFENSE This part replaces 61273-31310.

61273-31311

Unavailable

12

TORQUE LINK, REAR (BLACK) | ~F.NO.103290

64310-31300-291

Unavailable

12

TORQUE LINK, REAR (BLACK) | FOR 61000-31302F.NO.103291~

64310-31301-291

Unavailable

13

BOLT,10X39 This part replaces 09111-10011.

09111-10022-XC0

Unavailable

14

BOLT, REAR

09101-10017

Unavailable

15

WASHER This part replaces 08322-11108.

08322-01107

$2.15

16

NUT This part replaces 08314-41108.

08314-4010B

$2.50

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

18

CASE, CHAIN This part replaces 61310-31300-291.

61310-31312

Unavailable

19

BOLT This part replaces 01107-06108.

01500-06107

$2.06

20

WASHER

09169-06036

Unavailable

21

BOLT (6X60) This part replaces 01107-06608.

09103-06064

$2.12

22

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

23

.NUT This part replaces 08319-21068.

08319-2106A

$1.91
