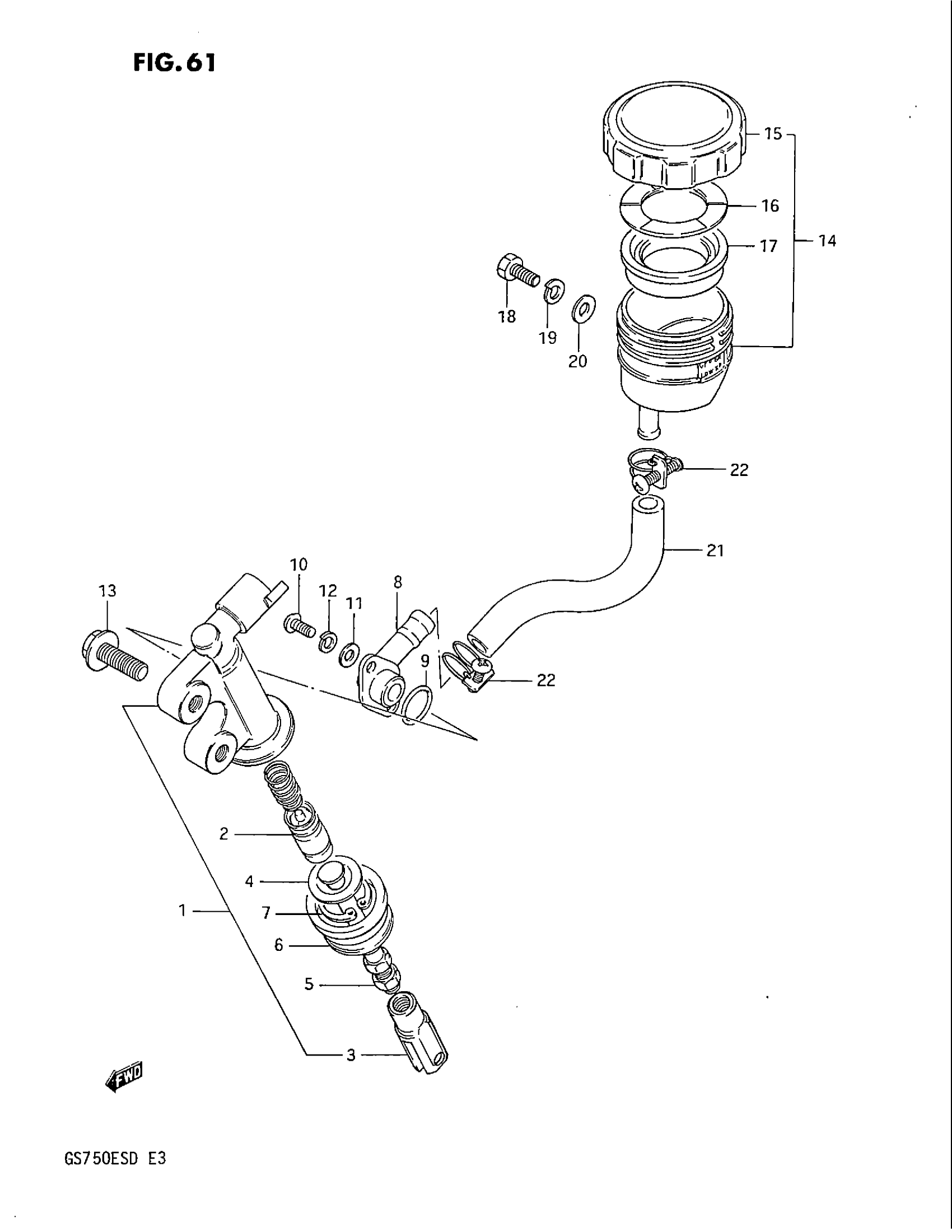

Suzuki GS750E (1983) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 12

69600-31300

Unavailable

2

PISTON & CUP SET

69600-34810

$56.48

3

YOKE

69692-34300

Unavailable

4

ROD, PUSH This part replaces 69670-31300.

69670-31301

Unavailable

5

NUT This part replaces 69693-34300.

69693-05A00

$1.96

6

BOOT

69691-45001

$5.70

7

CIRCLIP

51162-70040

$3.25

8

CONNECTOR

69672-09300

Unavailable

9

O RING

69686-34200

$2.93

10

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

11

WASHER This part replaces 08322-21048.

08322-01047

$1.86

12

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

13

BOLT This part replaces 01527-08255.

01550-0825A

$2.32

14

TANK ASSY,RR RS | Includes Item(s) 15 - 17 This part replaces 69740-34230.

69740-31D00

Unavailable

15

CAP This part replaces 59669-33603.

59669-07D00

$31.72

16

PLATE, DIAPHRAGM

59668-18441

$4.52

17

DIAPHRAGM

59667-18441

$10.28

18

FRM CVR,SCREW(6 This part replaces 09128-06011.

09128-06092

$1.92

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

WASHER This part replaces 08322-21068.

08322-01067

$2.13

21

HOSE

69731-31301

Unavailable

22

CLAMP This part replaces 09400-16302.

09400-16304

$3.10
