1983 Suzuki GS750E Rear Combination Lamp Diagram

← All diagrams

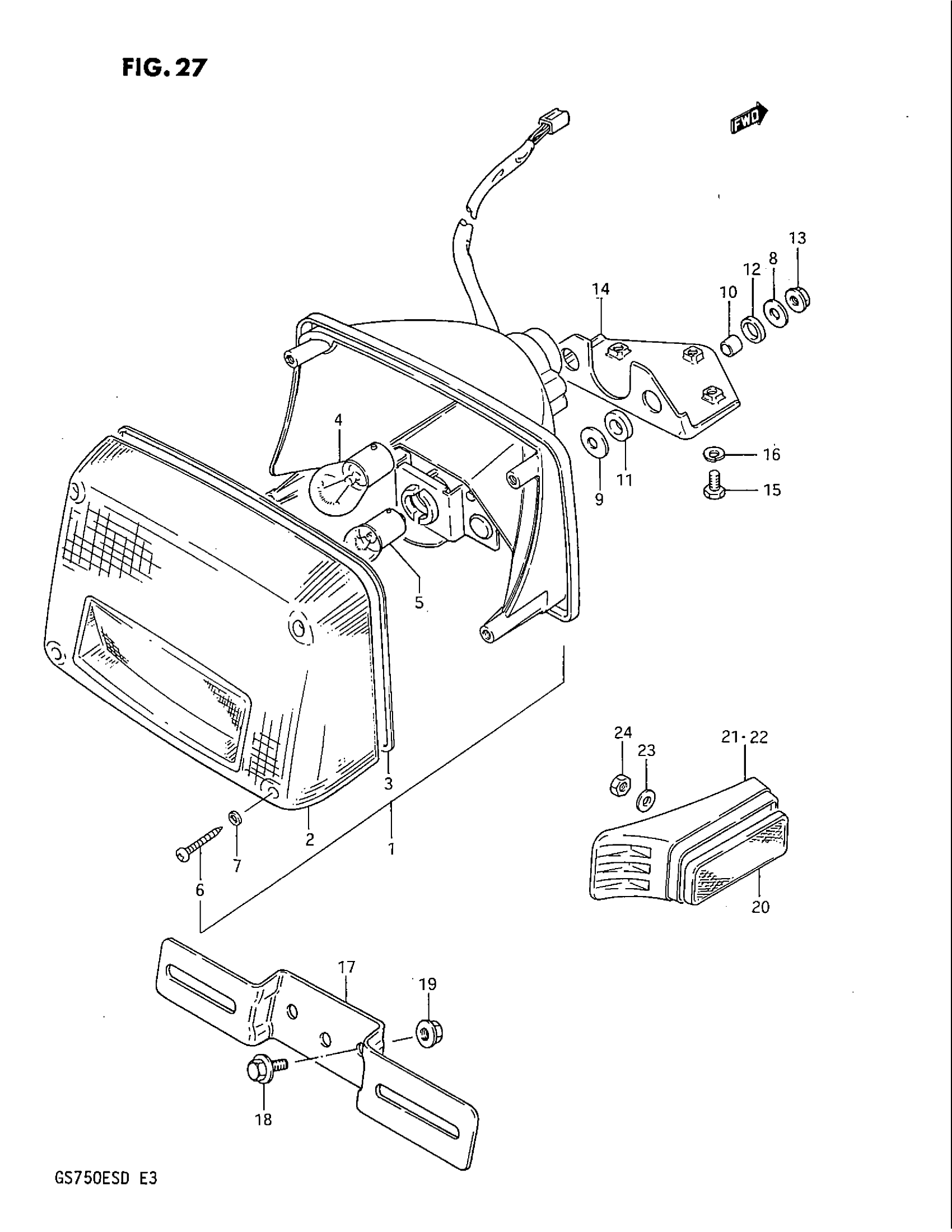

Find the part on the Rear Combination Lamp diagram for your 1983 Suzuki GS750E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS750E Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, TAIL | Includes Item(s) 2 - 7 This part replaces 35710-31330.

35710-49330

1
Out of stock

2

LENS

35712-49031

1

$76.43

In stock

3

GASKET

35713-49030

1
Out of stock

4

BULB (12V,32/3CP)

09471-12035

1
Out of stock

5

BULB (12V, BW) This part replaces 09471-12037.

09471-12141

1
Out of stock

6

4

$1.95

In stock

7

GASKET

35627-43010

4

$2.65

In stock

8

2

$1.90

In stock

9

2

$1.73

In stock

10

SPACER

09180-06038

2

$2.16

In stock

11

CUSHION

09320-09003

2

$2.43

In stock

12

CUSHION

09320-09004

2

$3.30

In stock

13

2

$2.87

In stock

14

BRACKET, TAIL LAMP This part replaces 35726-31300.

35726-31301

1
Out of stock

15

3

$2.10

In stock

16

3

$2.28

In stock

17

BRACKET, LICENCE PLATE

35927-31330

1
Out of stock

18

2

$2.32

In stock

19

2

$2.87

In stock

20

NO DESCRIPTION AVAILABLE This part replaces 35970-43430.

35970-02130

2
Out of stock

21

SPACER, RH

35977-31330

1
Out of stock

22

SPACER, LH This part replaces 35978-31330.

35978-06A30

1
Out of stock

23

WASHER

09160-05013

2
Out of stock

24

2

$1.97

In stock
