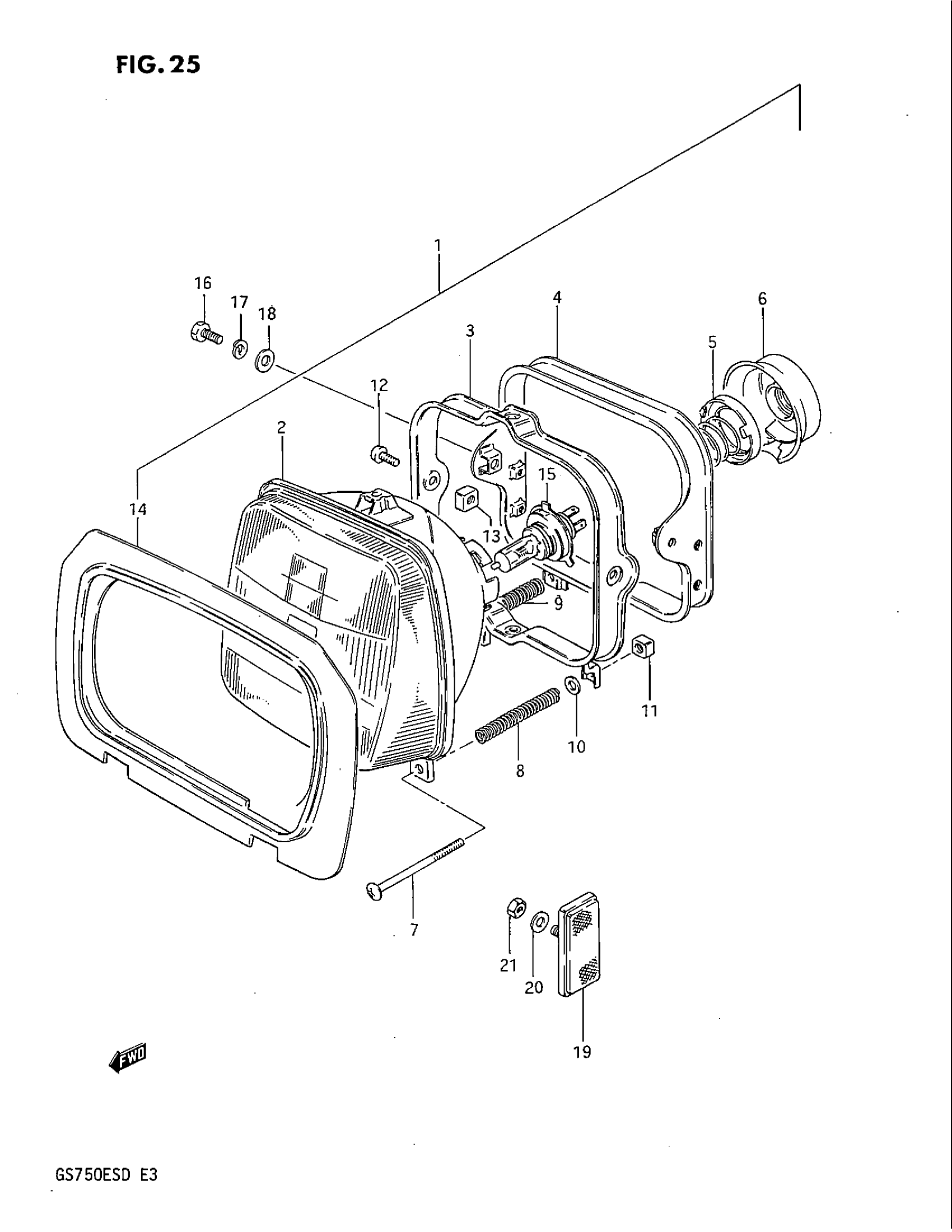

Suzuki GS750E (1983) HEADLAMP (GS750ED) Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 14

35100-31330-999

Unavailable

2

UNIT

35121-31330

Unavailable

3

MOUNTING RING

35130-31300

Unavailable

4

HOUSING

35141-31300

Unavailable

5

HOLDER, BULB

35136-49200

Unavailable

6

COVER, SOCKET This part replaces 35173-49200.

35173-38A00

$19.03

7

SCREW This part replaces 35151-31300.

09125-04020

$2.72

8

SPRING, HEADLAMP ADJUST This part replaces 35154-49430.

35154-31300

$3.49

9

SPRING, RH

35154-31300

$3.49

10

WASHER

35157-27630

$3.67

11

NUT

35135-45600

$4.12

12

SCREW This part replaces 02112-05128.

02112-05127

$1.97

13

NUT

35135-45900

$3.67

14

SHADE

35129-31300

Unavailable

15

BULB (12V,60/55W,H4) | EXECUTED LOCALLY

09471-12060

$22.69

16

BOLT This part replaces 01107-06128.

01500-06127

$1.97

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

18

WASHER This part replaces 08322-21068.

08322-01067

$1.86

19

REFLEX-REFLECTOR ASSY This part replaces 35950-43430.

35950-43431

$20.13

20

WASHER This part replaces 08322-21058.

08322-01057

$1.86

21

NUT This part replaces 08310-11058.

08310-00057

$1.83
