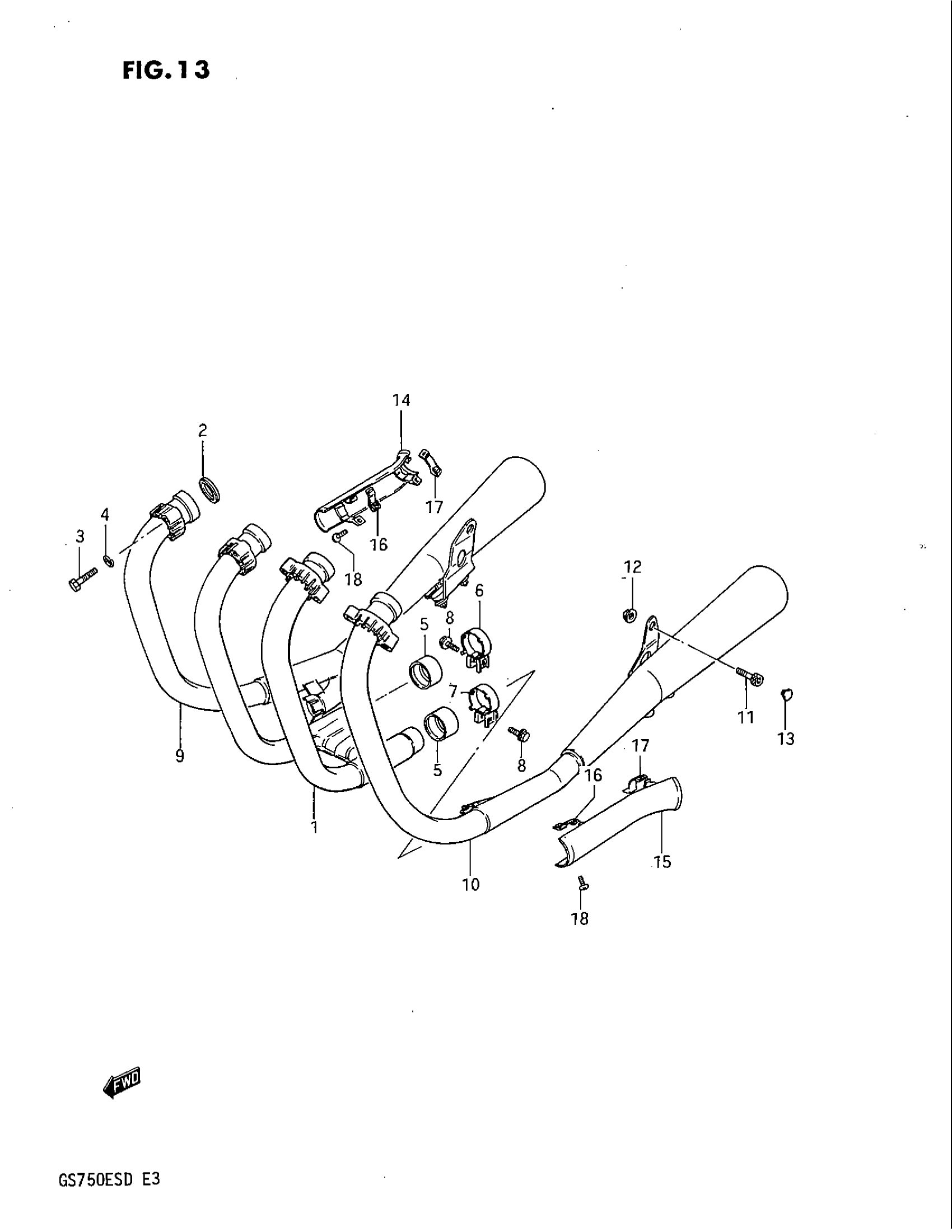

Suzuki GS750E (1983) MUFFLER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 14100-31301-H01.

14100-31302-H01

Unavailable

2

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

$7.22

3

BOLT This part replaces 01107-08405.

01500-0840A

$2.60

4

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

5

CONNECTOR,MUFF( This part replaces 14771-31300.

14771-00A01-H17

Unavailable

6

CLAMP, MUFFLER CONNECTOR RH This part replaces 14459-31300.

14459-26D10

Unavailable

7

CLAMP, MUFFLER CONNECTOR LH This part replaces 14469-31300.

14469-26D10

Unavailable

8

BOLT This part replaces 01517-08255.

01550-0825A

$2.32

9

NO DESCRIPTION AVAILABLE This part replaces 14301-31330-H01.

14301-31331-H01

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 14302-31330-H01.

14302-31332-H01

Unavailable

11

BOLT This part replaces 09106-10012.

07130-1025B

$5.27

12

NUT This part replaces 08316-26105.

08316-2010B

$3.43

13

CAP

43575-34500

$1.72

14

COVER, MUFFLER RH

14780-31302

Unavailable

15

COVER, MUFFLER LH

14790-31302

Unavailable

16

CLAMP This part replaces 14785-31301.

14785-31310

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 14785-31320.

14785-31330

Unavailable

18

SCREW | *** This part replaces 02112-05165.

02112-05164

$2.63
