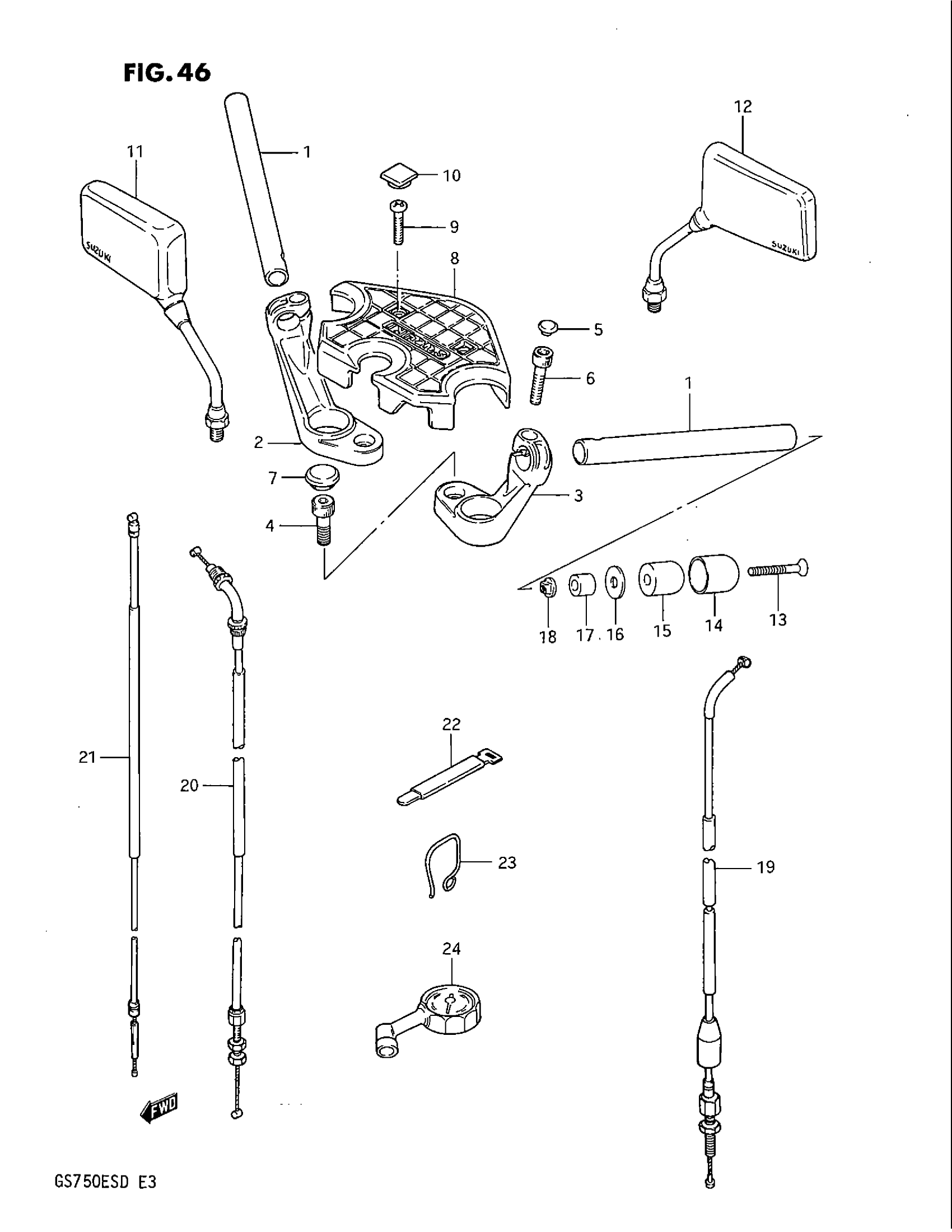

Suzuki GS750E (1983) HANDLE BAR (GS750ESD) Diagram

#

Description
Price

1

HANDLE BAR

56111-31330

Unavailable

2

HOLDER, HANDLE BAR, RH | FLAT TYPE

56211-31301

Unavailable

3

HOLDER, HANDLE BAR, LH | FLAT TYPE

56221-31301

Unavailable

4

BOLT This part replaces 09106-10011.

07130-1030B

$5.37

5

BOLT

09106-10024

Unavailable

6

WASHER This part replaces 09164-10005.

09164-10010

$4.83

7

CLIP

09385-10005

$1.56

8

CAP, BOLT HANDLE BAR

09250-06004

$1.49

9

BOLT This part replaces 07110-08355.

07130-0835B

$4.60

10

WASHER

09164-08015

$3.21

11

CAP This part replaces 57215-43401.

57215-33400

$5.50

12

PAD, STEERING HEAD

56170-31300

Unavailable

13

SCREW This part replaces 02112-06358.

02112-06357

$1.78

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

PLUG

09250-16012

Unavailable

16

MIRROR ASSY,RH This part replaces 56500-31301.

56500-43451

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 56600-31301.

56600-43451

Unavailable

18

SCREW This part replaces 02132-06655.

02122-0665B

$2.76

19

CAP

56274-31300

Unavailable

20

BALANCER

56271-49400

Unavailable

21

SPACER This part replaces 56275-34400.

56275-34401

$4.02

22

EXPANDER

56272-04700

$5.40

23

NUT

09159-06024

$2.11

24

CABLE, CLUTCH | FLAT TYPE

58200-31300

Unavailable

25

CABLE, THROTTLE | FLAT TYPE

58300-31301

Unavailable

26

CABLE,STARTER | FLAT TYPE This part replaces 58410-31300.

58410-31X00

Unavailable

27

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

28

GUIDE, CABLE

58621-31310

Unavailable

29

GAUGE, AIR PRESSURE

96200-41330

Unavailable
