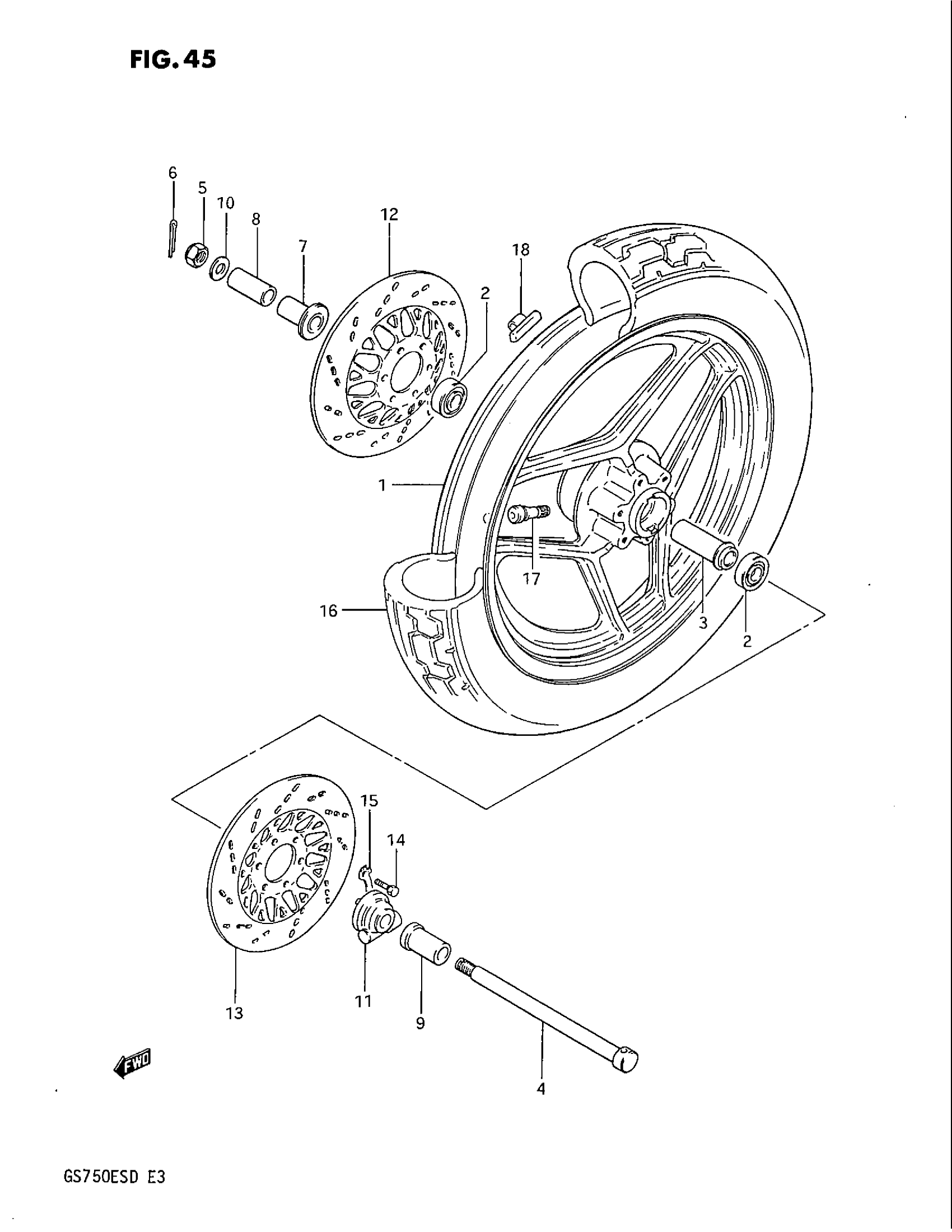

Suzuki GS750E (1983) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (2.15X16) | BLACK

54111-09310-291

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER

54730-09300

Unavailable

4

AXLE, FRONT

54711-09300

Unavailable

5

NUT This part replaces 08314-31128.

08314-3112A

$2.41

6

PIN This part replaces 04111-30308.

04111-3030A

$1.49

7

SPACER, BEARING RH

54740-18402

Unavailable

8

SPACER, AXLE RH

54741-49300

Unavailable

9

SPACER, AXLE LH

54741-49000

Unavailable

10

WASHER This part replaces 08322-21128.

08322-01127

$1.84

11

BOX, SPEEDOMETER GEAR This part replaces 54600-31300.

54600-00A00

Unavailable

12

DISK, FRONT BRAKE RH

59211-09300

Unavailable

13

DISK, FRONT BRAKE LH

59221-09300

Unavailable

14

BOLT

09100-08140

$2.10

15

WASHER

09169-08016

$2.41

16

TIRE (100/90-16) | BS

55100-31330

Unavailable

17

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

18

BALANCER, WHEEL NO.2 This part replaces 55411-45100.

55412-17G00

$7.05

18

BALANCER (30G)

55412-45100

Unavailable

18

BALANCER (10G) This part replaces 55413-45100.

55411-00A00

$1.49
