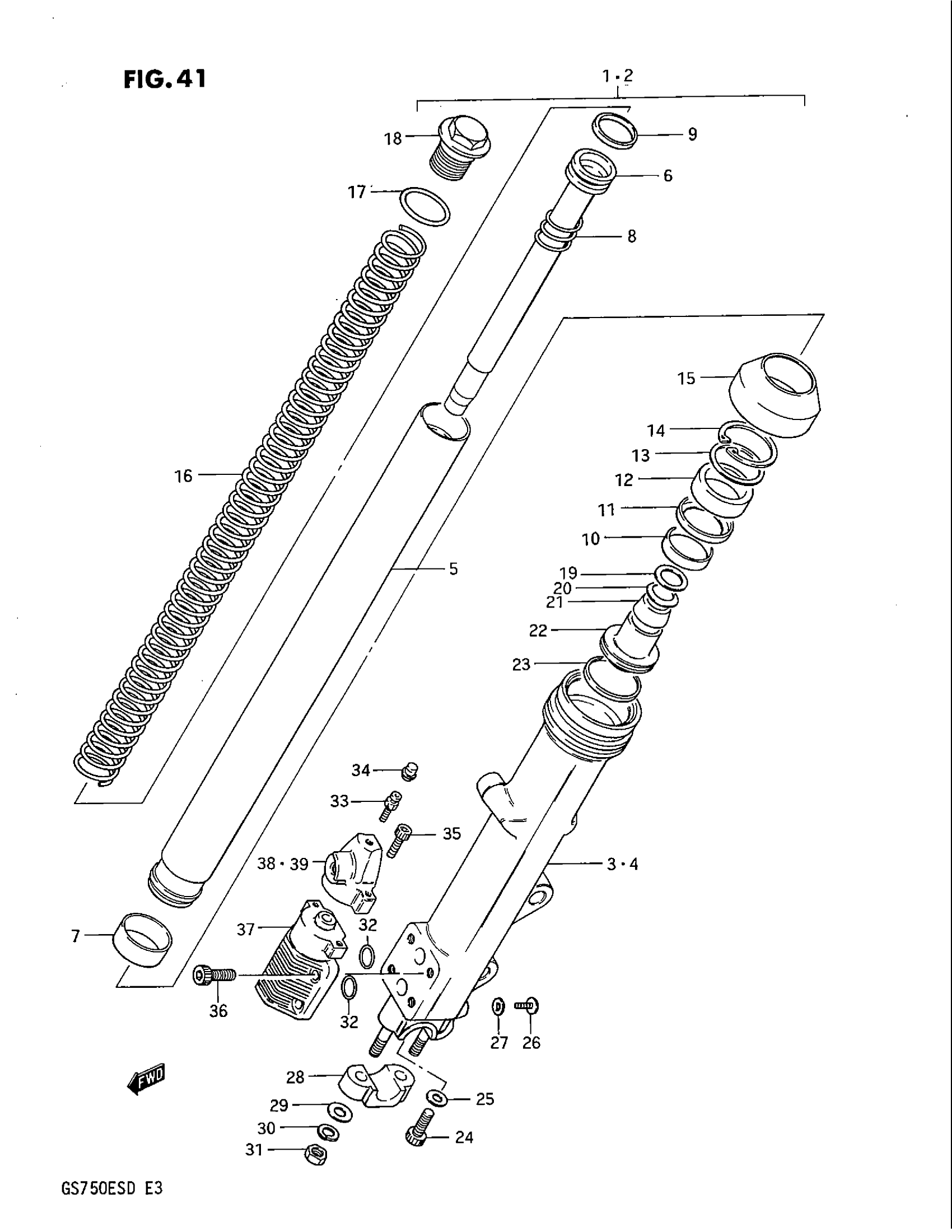

Suzuki GS750E (1983) FRONT DAMPER (GS750ED) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 51103-31300.

51103-31370

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 39 This part replaces 51104-31300.

51104-31370

Unavailable

3

OUTER TUBE RH

51130-31300-15T

Unavailable

4

OUTER TUBE LH

51140-31300-15T

Unavailable

5

INNER TUBE This part replaces 51110-31300.

51110-31340

Unavailable

6

CYLINDER This part replaces 51146-31300.

51146-31305

Unavailable

7

PISTON

51121-31300

Unavailable

8

SPRING REBOUND

51177-34210

Unavailable

9

RING PISTON

51196-34210

Unavailable

10

GUIDE BUSH

51152-31300

Unavailable

11

SPACER, SEAL This part replaces 51168-34210.

51168-38A00

$6.72

12

SEAL, OIL This part replaces 51153-09310.

51153-03B30

$18.51

13

RING BACK UP

51158-34320

Unavailable

14

CIRCLIP INTERNAL

51556-34320

Unavailable

15

DUSTSEAL This part replaces 51571-45200.

51571-34320

Unavailable

16

SPRING

51171-31300

Unavailable

17

O RING

51117-45200

Unavailable

18

BOLT

51351-31300

Unavailable

19

VALVE C

51126-34310

Unavailable

20

VALVE SPRING

51127-34310

Unavailable

21

OIL LOCK PIECE VALVE

51125-34310

Unavailable

22

OIL LOCK PIECE

51195-34370

Unavailable

23

PISTON RING

51123-34320

Unavailable

24

BOLT

51147-48130

$4.34

25

O RING This part replaces 51148-31030.

51148-36011

$3.56

26

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

27

GASKET

51183-33030

Unavailable

28

HOLDER, AXLE This part replaces 51132-44040-291.

51132-44040-15T

Unavailable

29

WASHER This part replaces 08322-21085.

08322-0108A

$1.92

30

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

31

NUT This part replaces 08310-11085.

08310-0008A

$1.84

32

O-RING (D:2.4,ID:15.8) This part replaces 51799-11420.

09280-15007

$1.70

33

SCREW

51778-11420

Unavailable

34

BLEEDER CAP

51779-11420

Unavailable

35

BOLT This part replaces 51797-34310.

07130-05167

$3.15

36

BOLT This part replaces 51796-34310.

07130-0616B

$2.39

37

MODULATOR VALVE SET

51790-31300

Unavailable

38

MODULATOR PLUNGER SET RH

51780-31300

Unavailable

39

MODULATOR PLUNGER SET LH

51770-31300

Unavailable
