1983 Suzuki GS750E Front Brake Hose Diagram

← All diagrams

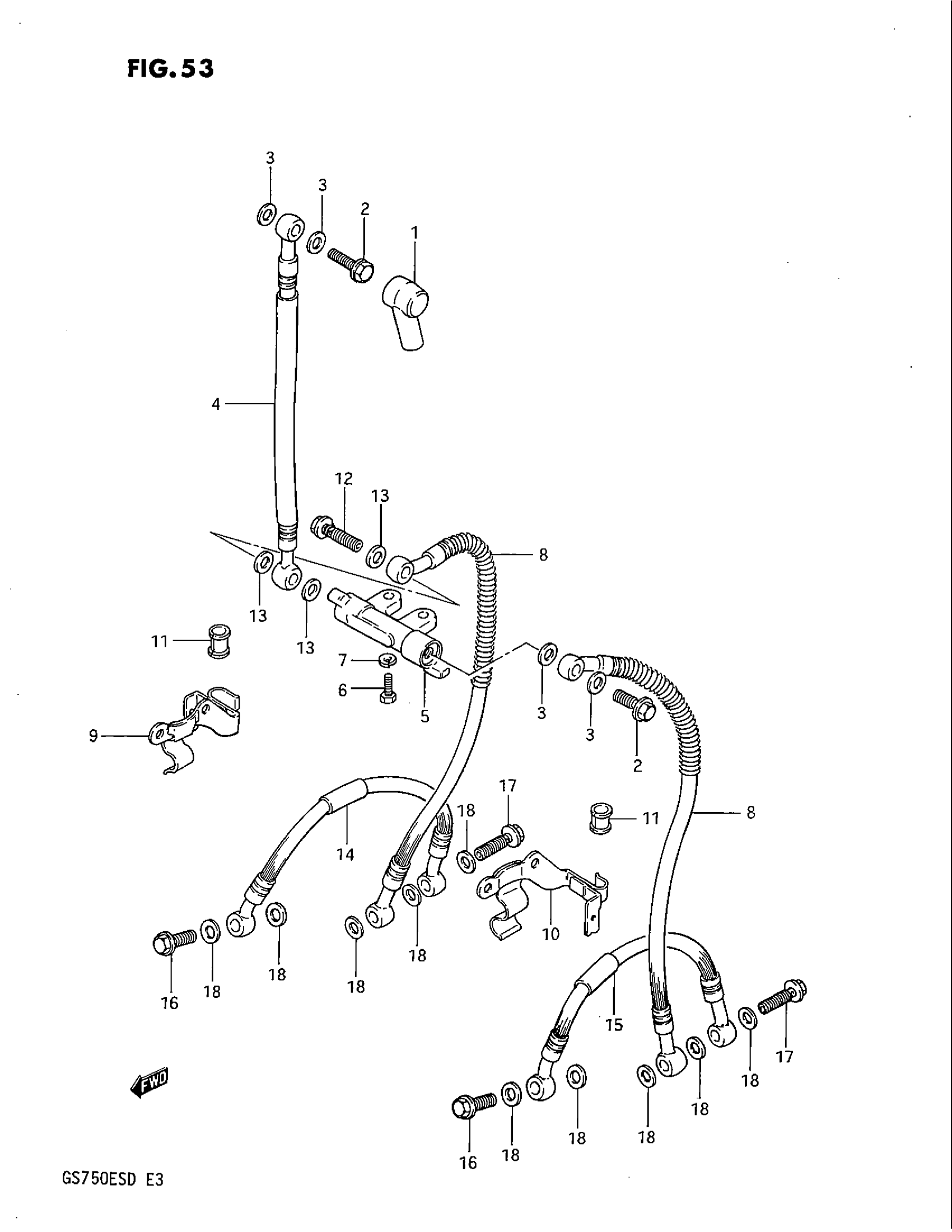

Find the part on the Front Brake Hose diagram for your 1983 Suzuki GS750E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS750E Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOOT, MASTER CYLINDER | GS750ESD This part replaces 59711-18400.

59711-49001

1
Out of stock

1

BOOT,MASTER CYL | GS750ED This part replaces 59711-49300.

59711-04701

1
Out of stock

2

UNION This part replaces 09360-10009.

09360-10017

2
Out of stock

3

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

4
Out of stock

4

HOSE, BRAKE NO.1 | GS750ESD

59480-31300

1
Out of stock

4

HOSE, BRAKE NO.1 | GS750ED

59480-31310

1
Out of stock

5

JOINT, BRAKE HOSE

59491-09300

1
Out of stock

6

BOLT This part replaces 01107-06208.

01500-06207

2
Out of stock

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

2
Out of stock

8

HOSE, BRAKE NO. 2

59240-31300

2
Out of stock

9

CLAMP, HOSE RH

59260-31300

1
Out of stock

10

CLAMP, HOSE LH

59270-31300

1
Out of stock

11

BUSHING

59244-49000

2
Out of stock

12

UNION BOLT This part replaces 09360-10008.

09360-10018

1
Out of stock

13

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

3
Out of stock

14

HOSE, ANTI DIVE, RH | GS750ESD

59520-31300

1
Out of stock

15

HOSE, ANTI DIVE, LH | GS750ESD

59530-31300

1
Out of stock

16

UNION BOLT

09360-10021

2
Out of stock

17

UNION BOLT This part replaces 09360-10008.

09360-10018

2
Out of stock

18

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

10
Out of stock
