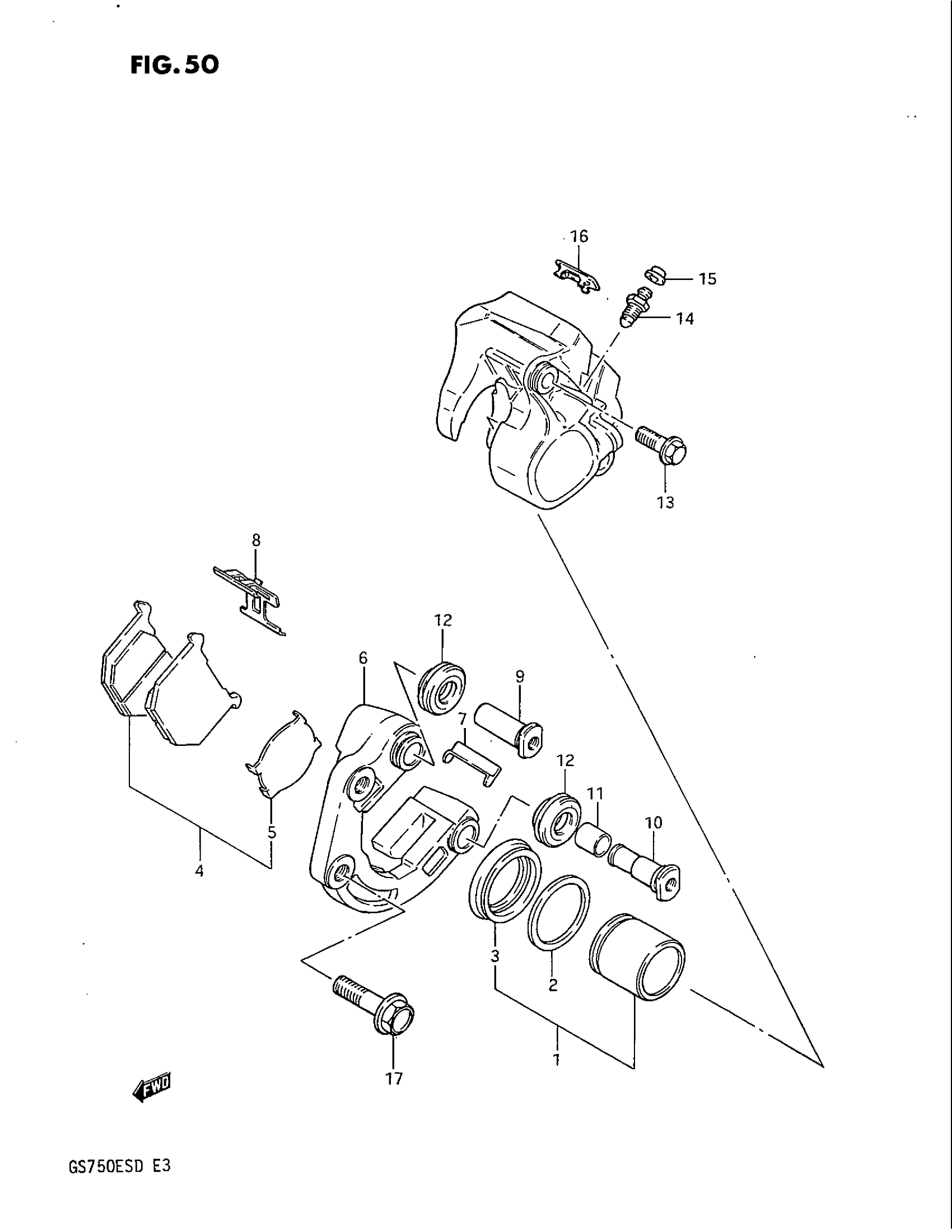

Suzuki GS750E (1983) FRONT CALIPERS Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE This part replaces 59100-45210.

59100-45211

Unavailable

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 16 This part replaces 59300-45210.

59300-45211

Unavailable

1

PISTON SET This part replaces 59301-45820.

59301-45822

$36.30

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$8.30

3

BOOT, PISTON

59308-45200

$7.04

4

PAD SET

59301-45850

Unavailable

5

SHIM, PAD

59371-45200

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 59100-45881.

59100-45882

Unavailable

6

HOLDER SET, CALIPERS LH

59301-45841

Unavailable

7

GUIDE, PAD

59316-45201

$4.85

8

SPRING, PAD

59315-45200

$11.60

9

AXLE, CALIPERS NO.1

59305-45200

Unavailable

10

AXLE, CALIPERS NO.2

59306-45200

Unavailable

11

BUSH

59313-45200

$8.97

12

BOOT, AXLE

59312-45200

$8.27

13

BOLT

59314-45201

$6.28

14

BLEEDER

59121-18410

$7.99

15

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$4.73

16

COVER

59324-45201

Unavailable

17

BOLT (10X40) This part replaces 01517-10408.

01550-10407

$5.10
