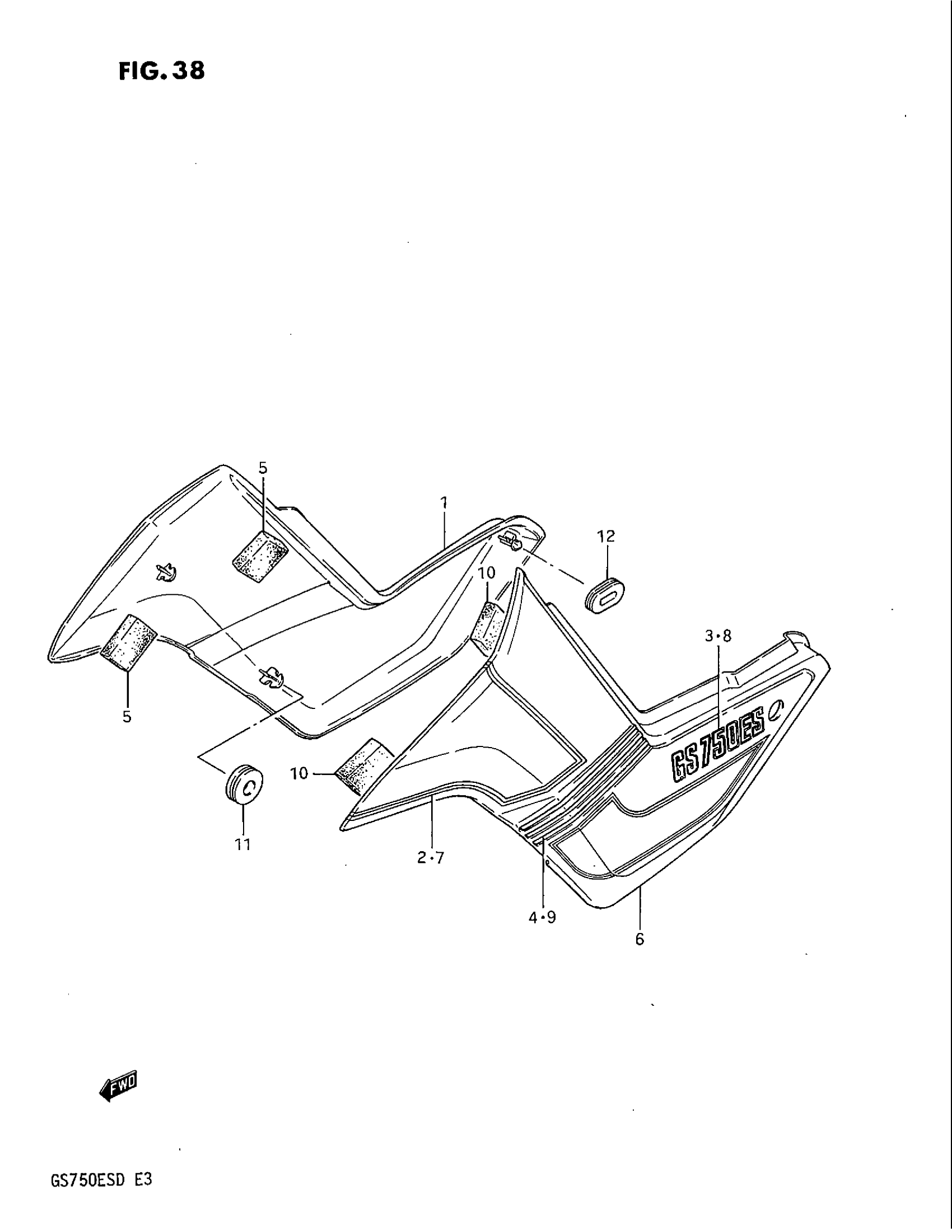

Suzuki GS750E (1983) FRAME COVER (GS750ESD) Diagram

#

Description

Price

1

COVER,FRAME,RH | Includes Item(s) 2 - 5 This part replaces 47110-31330-88P.

47110-31300

Unavailable

2

TAPE SET, FRAME COVER RH

68130-31300-92J

Unavailable

3

EMBLEM

68131-31330-69L

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 68134-31300.

68134-31300-291

Unavailable

5

RUBBER

45562-44410

$2.48

6

NO DESCRIPTION AVAILABLE | Includes Item(s) 7 - 10 This part replaces 47210-31330-88P.

47210-31300

Unavailable

7

TAPE SET, FRAME COVER LH

68140-31300-92J

Unavailable

8

EMBLEM

68131-31330-69L

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 68144-31300.

68144-31300-291

Unavailable

10

RUBBER

45562-44410

$2.48

11

CUSHION

09320-08018

$3.04

12

CUSHION

09329-08003

$3.16
