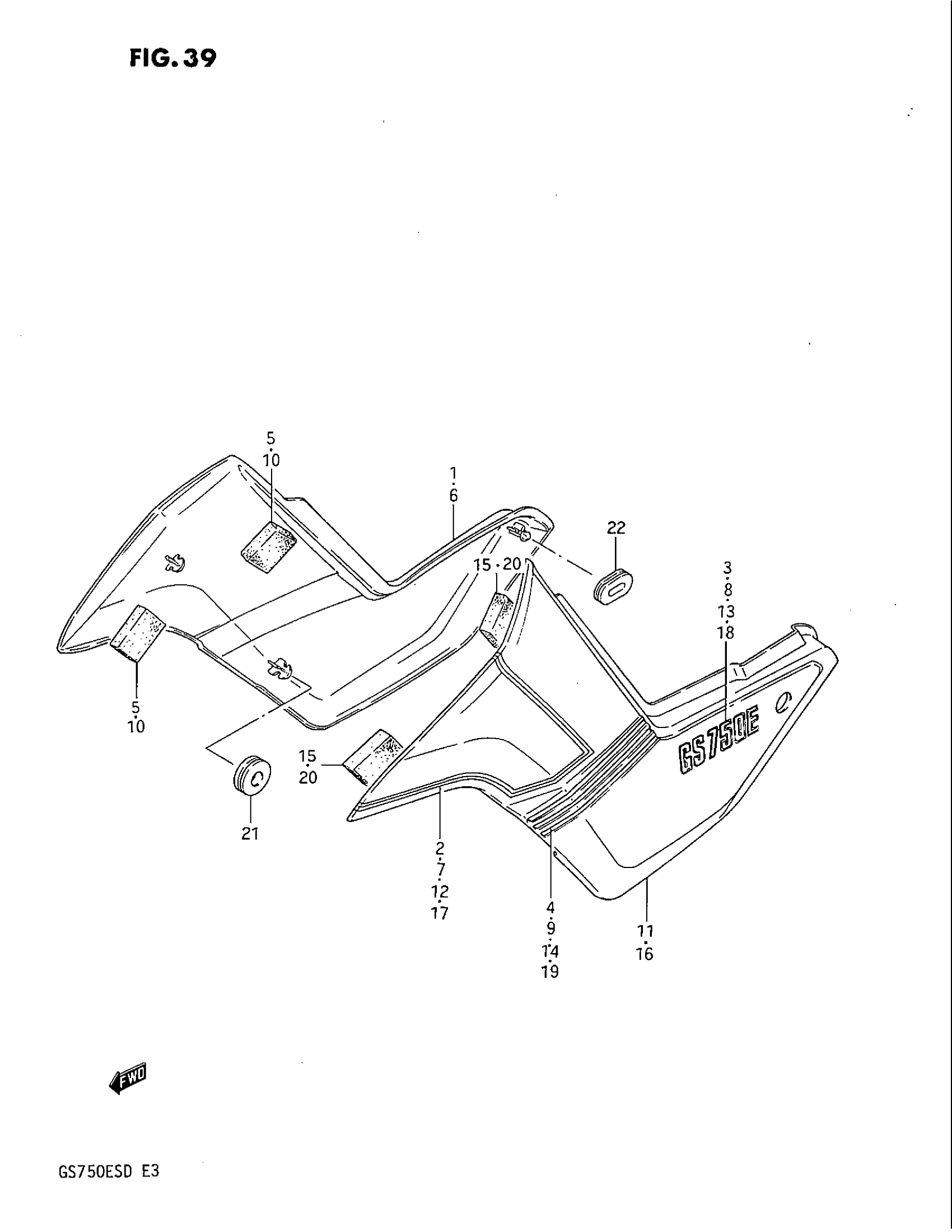

Suzuki GS750E (1983) FRAME COVER (GS750ED) Diagram

#

Description
Price

1

COVER, FRAME RH | Includes Item(s) 2 - 5 This part replaces 47110-31340-88G.

47111-31300

Unavailable

2

TAPE SET, FRAME COVER RH

68130-31300-92F

Unavailable

3

EMBLEM This part replaces 68131-31340-69L.

68131-31330-69L

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 68134-31300.

68134-31300-291

Unavailable

5

RUBBER

45562-44410

$2.48

6

COVER, FRAME RH | Includes Item(s) 7 - 10 This part replaces 47110-31340-88H.

47111-31300

Unavailable

7

TAPE SET, FRAME COVER RH

68130-31300-92G

Unavailable

8

EMBLEM This part replaces 68131-31340-69P.

68131-31330-69L

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 68134-31300.

68134-31300-291

Unavailable

10

RUBBER

45562-44410

$2.48

11

NO DESCRIPTION AVAILABLE | Includes Item(s) 12 - 15 This part replaces 47210-31340-88G.

47211-31300

Unavailable

12

TAPE SET, FRAME COVER LH

68140-31300-92F

Unavailable

13

EMBLEM This part replaces 68131-31340-69L.

68131-31330-69L

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 68144-31300.

68144-31300-291

Unavailable

15

RUBBER

45562-44410

$2.48

16

NO DESCRIPTION AVAILABLE | Includes Item(s) 17 - 20 This part replaces 47210-31340-88H.

47211-31300

Unavailable

17

TAPE SET, FRAME COVER LH

68140-31300-92G

Unavailable

18

EMBLEM This part replaces 68131-31340-69P.

68131-31330-69L

Unavailable

19

NO DESCRIPTION AVAILABLE This part replaces 68144-31300.

68144-31300-291

Unavailable

20

RUBBER

45562-44410

$2.48

21

CUSHION

09320-08018

$3.04

22

CUSION

09329-08003

$3.16
