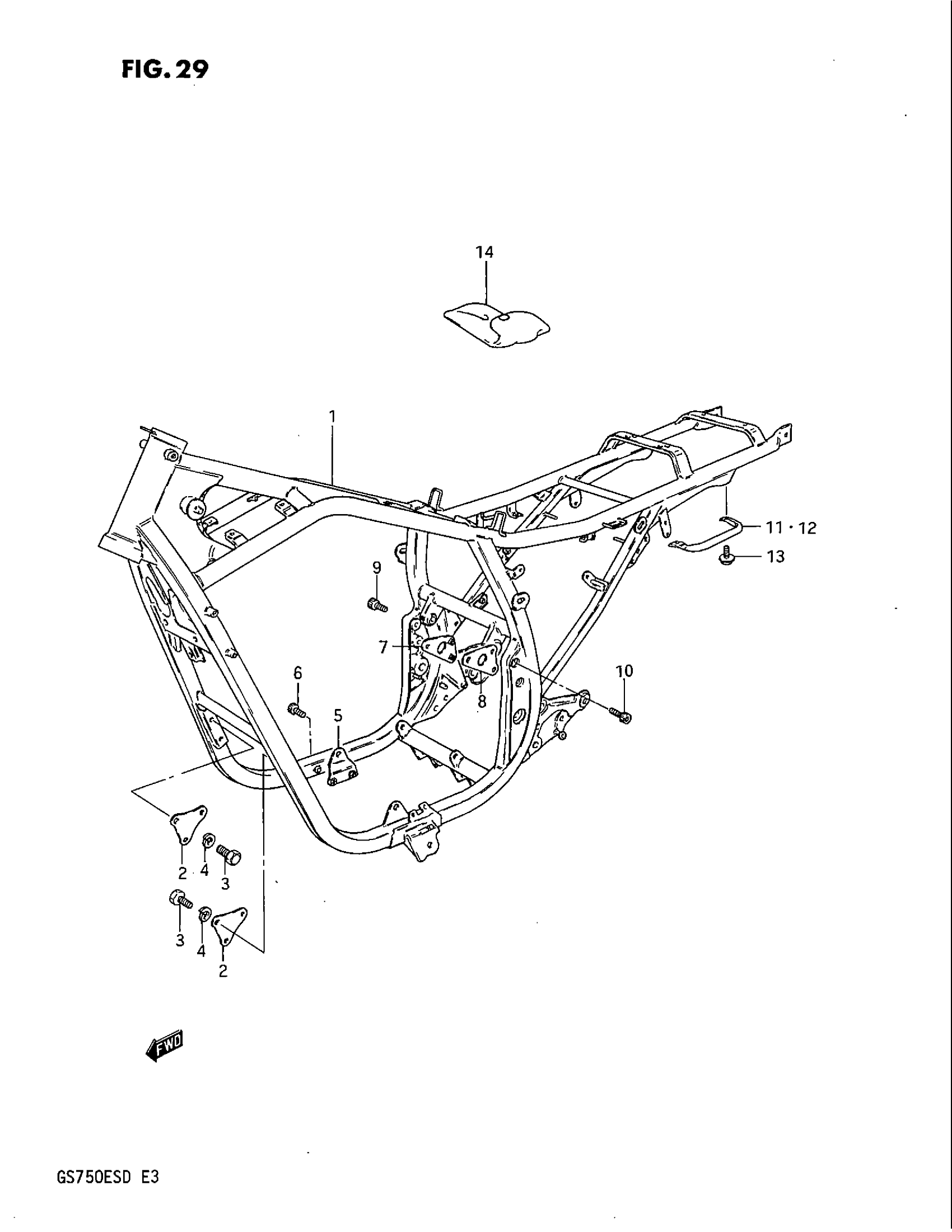

Suzuki GS750E (1983) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-31300-291

Unavailable

2

PLATE, NO.1 (BLACK)

41911-31300-291

Unavailable

3

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

PLATE, NO.2 RH (BLACK)

41930-31300-291

Unavailable

6

BOLT This part replaces 09106-08024.

07130-0840B

$3.91

7

PLATE, NO.4 RH (BLACK)

41970-31300-291

Unavailable

8

PLATE, NO.4 LH (BLACK)

41980-31300-291

Unavailable

9

BOLT This part replaces 09106-08027.

07130-0835B

$4.60

10

BOLT This part replaces 09106-08023.

07130-0825B

$3.37

11

GRIP, FRAME HANDLE RH This part replaces 41610-31300.

41610-31301

Unavailable

12

GRIP, FRAME HANDLE LH This part replaces 41620-31300.

41620-31301

Unavailable

13

BOLT

01514-08165

Unavailable

14

TOOL ASSY This part replaces 09800-00257.

09800-21073

$96.88

15

HOLDER, TOOL This part replaces 47431-31300.

47431-31301

Unavailable
