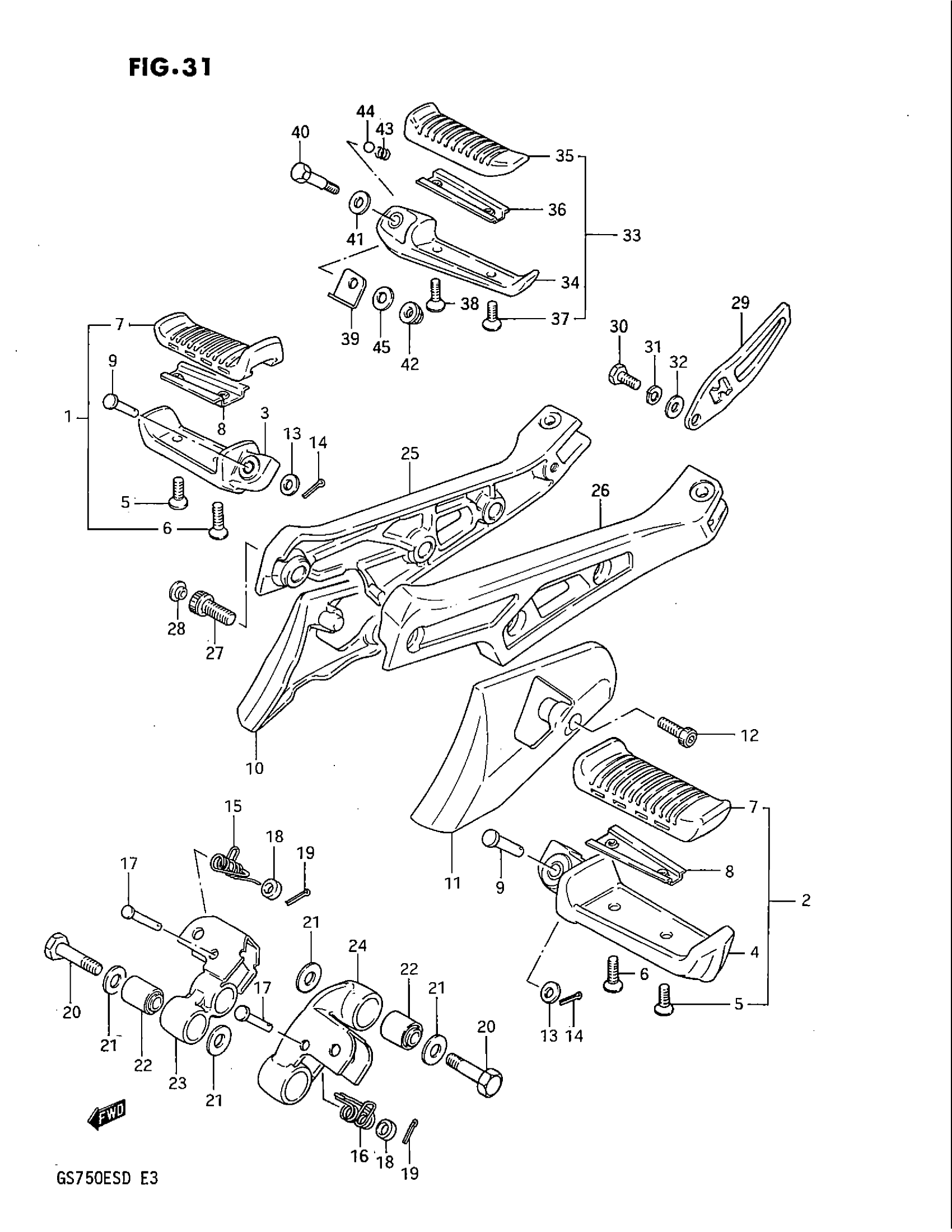

Suzuki GS750E (1983) FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY, FRONT RH

43501-31300

Unavailable

2

FOOTREST ASSY, FRONT LH | Includes Item(s) 3 - 8

43502-31300

Unavailable

3

BAR, FRONT FOOTREST RH

43510-31300

Unavailable

4

BAR, FRONT FOOTREST LH

43520-31300

Unavailable

5

SCREW This part replaces 02112-05128.

02112-05127

$1.97

6

SCREW This part replaces 02112-05168.

02112-05167

$1.97

7

RUBBER,FR FOOTR This part replaces 43551-31300.

43550-31300

$25.83

8

PLATE, FRONT FOOTREST RUBBER

43580-33301

Unavailable

9

PIN This part replaces 09200-08034.

09200-08002

$2.05

10

COVER, FRONT FOOTREST RH

43585-31300

Unavailable

11

COVER, FRONT FOOTREST LH

43595-31300

Unavailable

12

BOLT, FRONT BRG HOUSING This part replaces 09106-06031.

07130-0620B

$3.05

13

WASHER This part replaces 08322-11085.

08322-0108A

$1.92

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

SPRING, RH

09448-12013

Unavailable

16

SPRING, LH

09448-12014

Unavailable

17

PIN

09200-06010

$1.72

18

SPACER This part replaces 09180-06074.

09180-06299

Unavailable

19

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

20

BOLT

09100-10191

Unavailable

21

WASHER

09160-10005

$1.87

22

BUSH

09319-10047

$9.50

23

HOLDER, FOOTREST RH

43530-31300

Unavailable

24

HOLDER, FOOTREST LH

43540-31300

Unavailable

25

BRACKET, MUFFLER RH

43811-31300

Unavailable

26

BRACKET, MUFFLER LH

43821-31300

Unavailable

27

BOLT This part replaces 09106-10012.

07130-1025B

$5.27

28

CAP

43575-34500

$1.72

29

FOOT GUARD, REAR This part replaces 43671-09300.

43671-09301

Unavailable

30

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

31

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

32

WASHER This part replaces 08322-11088.

08322-01087

$2.13

33

FOOTREST ASSY, PILLION RH

43600-31300

Unavailable

33

FOOTREST ASSY, PILLION LH | Includes Item(s) 34 - 38

43700-31300

Unavailable

34

BAR, PILLION FOOTREST RH

43610-45501

Unavailable

34

BAR, PILLION FOOTREST LH

43710-45501

Unavailable

35

RUBBER, PILLION FOOTREST

43612-31300

$13.05

36

PLATE, RUBBER STOP

43632-45501

$3.70

37

SCREW This part replaces 02132-05127.

02122-05127

$1.93

38

SCREW This part replaces 02132-05168.

02122-05167

$2.47

39

PLATE, SPRING STOP RH

43635-09300

Unavailable

39

PLATE, SPRING STOP LH

43735-09300

Unavailable

40

BOLT

09111-06035

Unavailable

41

WASHER This part replaces 08322-11088.

08322-01087

$2.13

42

NUT This part replaces 08319-31068.

08319-31067

$2.03

43

SPRING

09440-05003

$1.49

44

BALL

06111-07004

$1.49

45

SHIM

09181-08004

Unavailable
