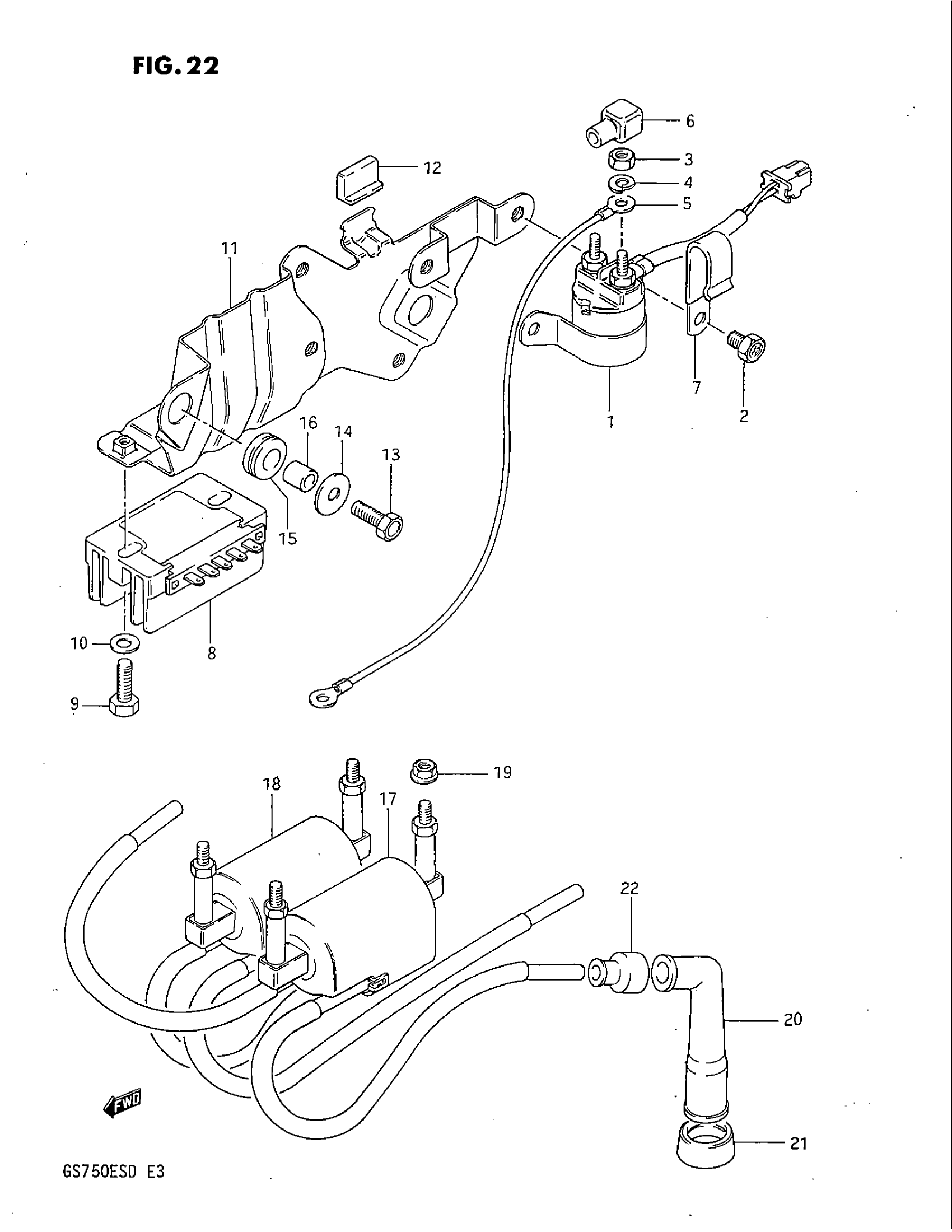

Suzuki GS750E (1983) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-31300.

31800-15501

$97.79

2

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

3

.NUT This part replaces 08310-22068.

08310-00067

$2.13

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

LEAD WIRE, STARTING MOTOR

33850-43410

Unavailable

6

CAP, STARTER MOTOR This part replaces 31861-05300.

31861-48B10

$6.55

7

CLAMP This part replaces 09403-06307.

09403-06329

$2.32

8

RECTIFIER ASSY This part replaces 32800-09300.

32800-09301

Unavailable

9

BOLT This part replaces 09128-06006.

09128-06057

$1.65

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

PLATE, PARTS HOLDER This part replaces 47410-31300.

47410-31301

Unavailable

12

CUSHION, PARTS HOLDER

47117-02400

$2.37

13

CUSHION, PARTS HOLDER

09321-06023

$2.50

14

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

15

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

16

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

17

SPACER

09180-06038

$1.98

18

COIL ASSY, IGNI This part replaces 33410-31310.

33410-31311

$161.13

19

COIL ASSY, IGNI This part replaces 33420-31310.

33410-31311

$161.13

20

NUT This part replaces 08316-16068.

08319-31067

$2.03

21

CAP, SPARK PLUG

33510-11410

$25.95

22

SEAL, SPARK PLUG

33541-38210

$4.68

23

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34
