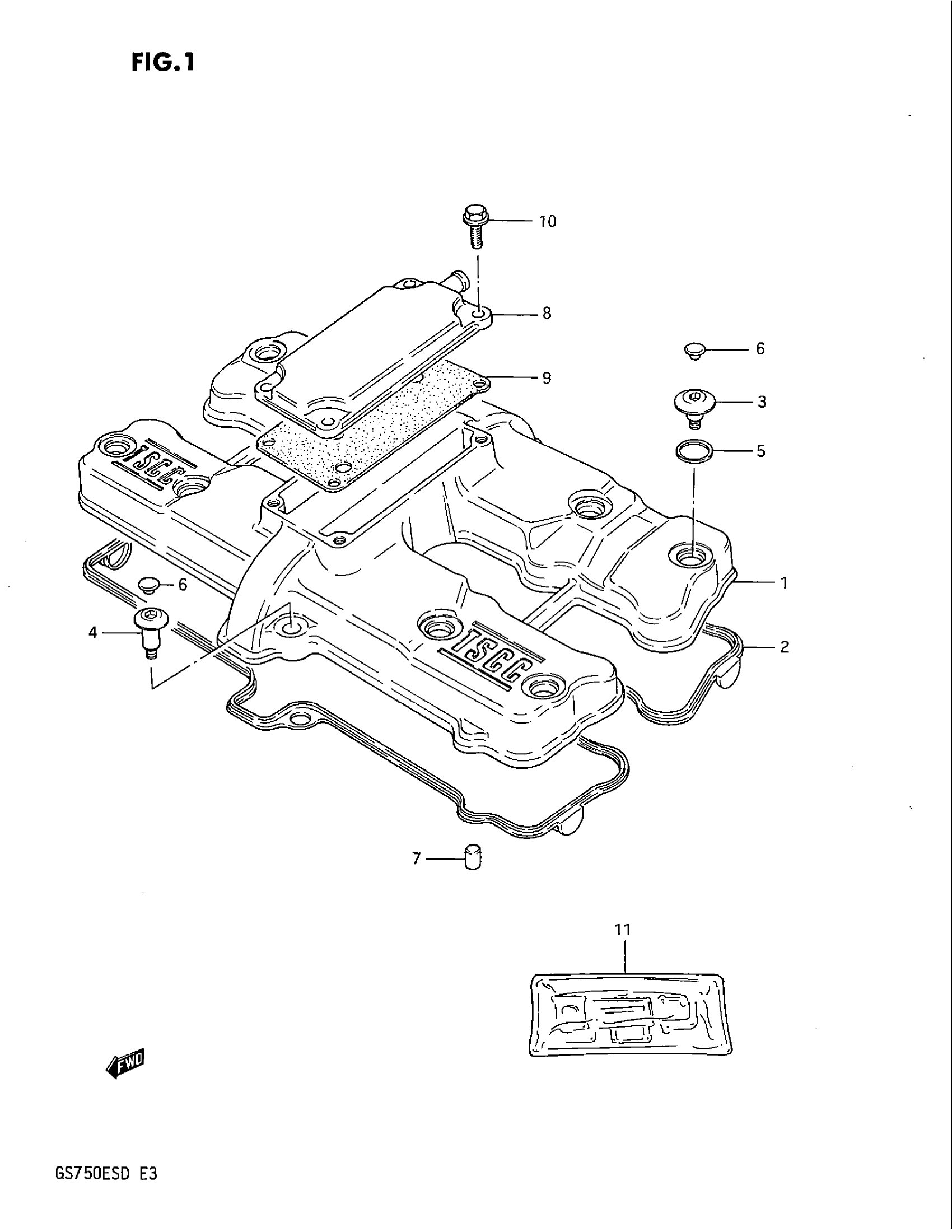

Suzuki GS750E (1983) CYLINDER HEAD COVER Diagram

#

Description

Price

1

COVER, CYLINDER HEAD This part replaces 11171-31304.

11171-31306

Unavailable

2

GASKET

11173-31302

$49.16

3

BOLT

09106-07001

Unavailable

4

BOLT

09106-07002

Unavailable

5

WASHER This part replaces 09161-11004.

09161-11008

$4.49

6

CAP This part replaces 09250-06008.

09250-06016

$1.96

7

PIN

04221-08129

$1.99

8

COVER, BREATHER

11176-31301

Unavailable

9

GASKET, BREATHER COVER This part replaces 11177-31300.

11177-27A00-H17

$6.05

10

BOLT This part replaces 01517-06208.

01550-06207

$2.30

11

NO DESCRIPTION AVAILABLE | OPT This part replaces 11400-31860.

11400-31865

Unavailable
