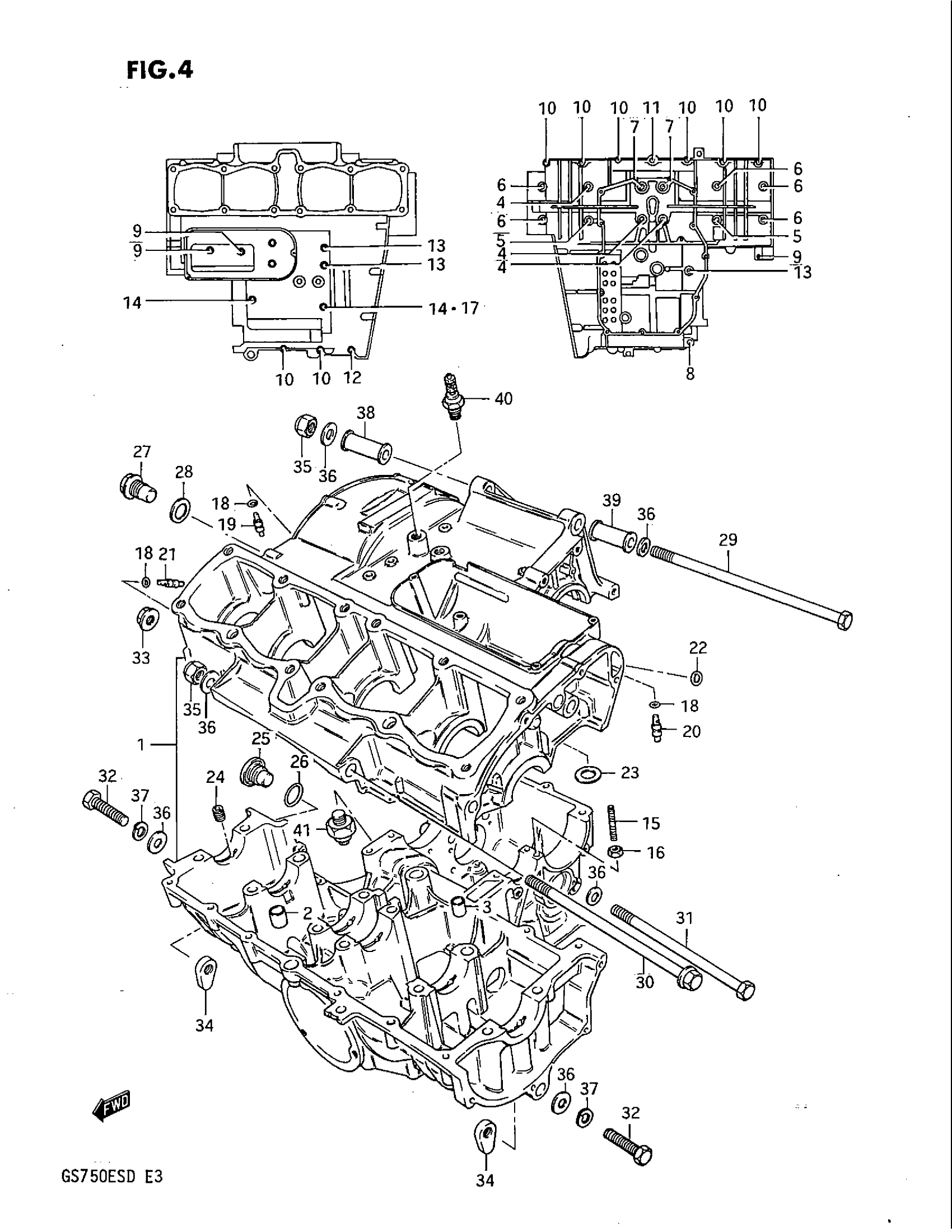

Suzuki GS750E (1983) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | ~E.NO.116100 This part replaces 11300-31870.

11300-31874

Unavailable

1

NO DESCRIPTION AVAILABLE | E.NO.116101~; Includes Item(s) 2 - 28 This part replaces 11300-31871.

11300-31874

Unavailable

2

PIN

09206-13004

$2.40

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

4

BOLT (8X120) This part replaces 09103-08026.

09103-08109

$3.18

5

BOLT (8x135)

09103-08038

Unavailable

6

BOLT, FRONT This part replaces 09103-08080.

09103-08139

$7.90

7

BOLT This part replaces 09106-08015.

07130-0860B

Unavailable

8

BOLT This part replaces 01517-08605.

01550-0860A

$4.17

9

BOLT This part replaces 01517-06355.

01550-0635A

$2.32

10

BOLT This part replaces 01517-06405.

01550-0640A

$2.42

11

BOLT This part replaces 01517-06505.

01550-0650A

$2.85

12

BOLT This part replaces 01517-06555.

01550-0655B

$3.30

13

BOLT This part replaces 01517-06855.

01550-0685B

$4.25

14

BOLT

01517-06955

Unavailable

15

BOLT,STUD This part replaces 01421-06458.

01421-0645A

$2.30

16

NUT This part replaces 08316-16068.

08319-31067

$2.03

17

GASKET

09168-06018

$1.77

18

O RING

09280-04004

$1.91

19

JET,T/M OIL GALLERY

09493-20014

$16.87

20

JET, OIL GALLERY MISSION

09493-80005

$16.25

21

JET, OIL GALLERY PISTON

09493-80007

Unavailable

22

O RING

09280-13001

$2.72

23

WASHER, CLUTCH RELEASE This part replaces 08211-10201.

09181-10195

$1.99

24

JET, OIL GALLERY CRANK SHAFT

09493-50005

Unavailable

25

PLUG This part replaces 09248-16003.

09248-16007

$9.96

26

O RING

09280-17002

$5.11

27

PLUG, OIL GALLERY

09248-14006

Unavailable

28

GASKET

09168-14004

$1.83

29

BOLT (10X255)

09100-10195

Unavailable

30

BOLT (10X205) This part replaces 09103-10075.

09103-10109

Unavailable

31

BOLT (10x165) This part replaces 09100-10137.

09100-10078

$12.70

32

BOLT, HANDLE HOLDER This part replaces 01107-10355.

01500-1035B

$3.72

33

NUT This part replaces 08319-31105.

08319-3110A

$2.73

34

NUT

09159-10020

$5.18

35

NUT This part replaces 09159-10039.

09159-10064

$10.08

36

WASHER, KNUCKLE END This part replaces 08322-11105.

08322-0110A

$1.84

37

LOCK WASHER This part replaces 08321-21105.

08321-0110A

$1.84

38

SPACER, ENGINE MOUNTING This part replaces 11610-11410.

11610-44100

Unavailable

39

SPACER (L:50)

11610-44010

Unavailable

40

NO DESCRIPTION AVAILABLE This part replaces 34870-31300.

34870-31301

Unavailable

41

SWITCH ASSY,OIL PRESSURE This part replaces 37820-34200.

37820-33D11

$25.13
