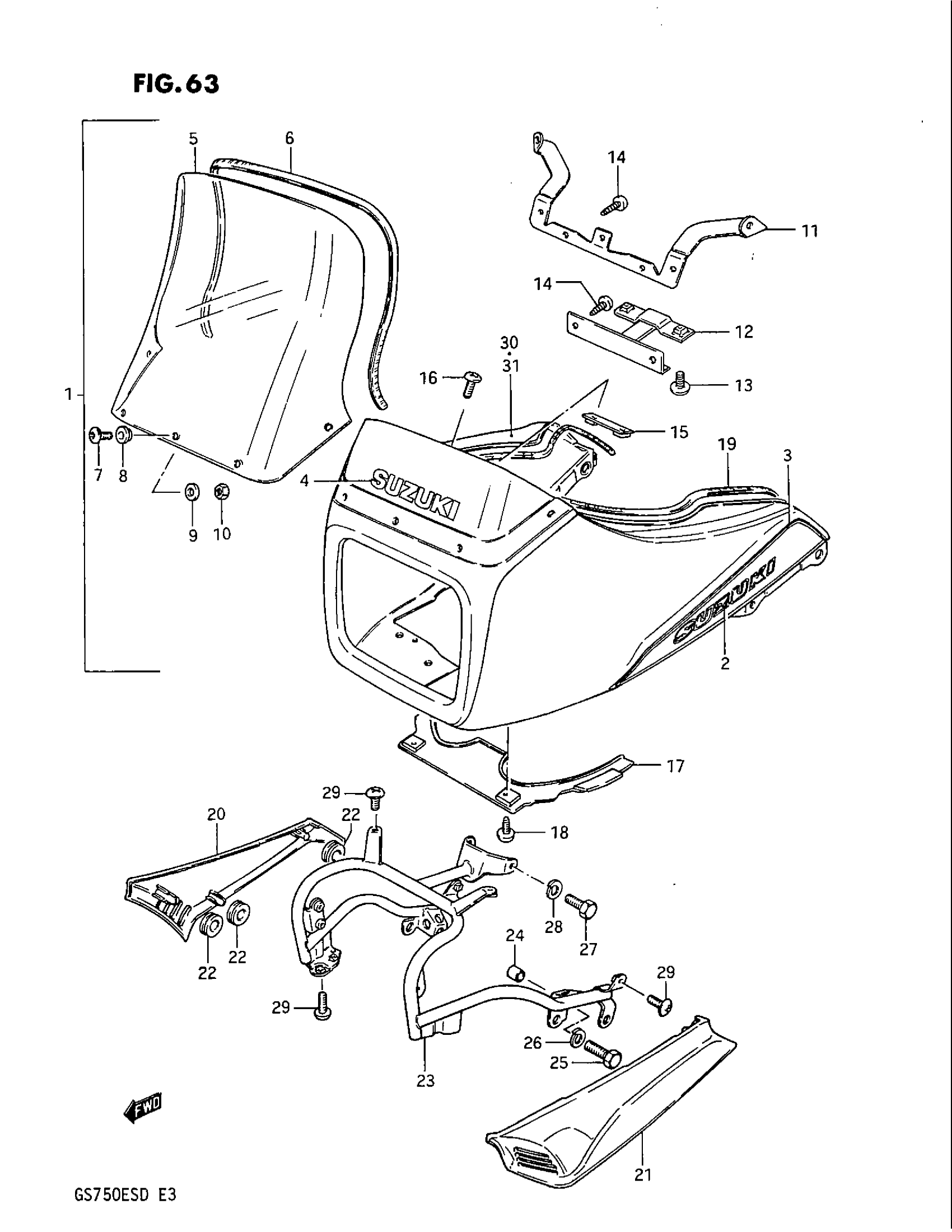

Suzuki GS750E (1983) COWLING (GS750ESD) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 17 This part replaces 94400-31320-88P.

94400-31X00

Unavailable

2

EMBLEM, SIDE

68111-29320-064

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 68190-31310-92J.

68190-31311-99Z

Unavailable

4

EMBLEM, FRONT

68271-43400-064

Unavailable

5

WINDOW This part replaces 94611-31320.

94611-31340

Unavailable

6

MOLDING This part replaces 94631-31310.

94631-44110

$36.85

7

SCREW, REAR This part replaces 02142-05205.

02142-0520B

$1.78

8

CUSHION(5.5X11X This part replaces 09320-05008.

09320-05021

$2.54

9

WASHER This part replaces 08322-21058.

08322-01057

$2.13

10

NUT This part replaces 08310-11058.

08310-00057

$1.84

11

BRACE, UPPER This part replaces 94530-31310.

94530-31311

Unavailable

12

BRACE, LOWER This part replaces 94540-31310.

94540-31311

Unavailable

13

SCREW This part replaces 02142-05108.

02142-05107

$1.49

14

NO DESCRIPTION AVAILABLE This part replaces 03211-05105.

03212-05103

Unavailable

15

BRACE, RH & LH This part replaces 94550-31310.

94550-31311

Unavailable

16

SCREW This part replaces 02142-05105.

02142-0510B

$1.78

17

MOULDING

94593-31310

Unavailable

18

COVER, LOWER

94445-31310

Unavailable

19

NO DESCRIPTION AVAILABLE This part replaces 03211-05105.

03212-05103

Unavailable

20

NO DESCRIPTION AVAILABLE This part replaces 94431-31310-16D.

94431-31310

Unavailable

21

NO DESCRIPTION AVAILABLE This part replaces 94441-31310-16D.

94441-31310

Unavailable

22

CUSHION

09320-08018

$3.04

23

BRACE This part replaces 94510-31310.

94510-31312

Unavailable

24

SPACER

94549-49500

Unavailable

25

BOLT This part replaces 01107-08308.

01500-08307

$3.04

26

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

27

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

28

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

29

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

30

TAPE, RH (BLACK) This part replaces 68197-31300.

68197-31310-291

Unavailable

31

TAPE, LH (BLACK) This part replaces 68198-31300.

68198-31310-291

Unavailable
