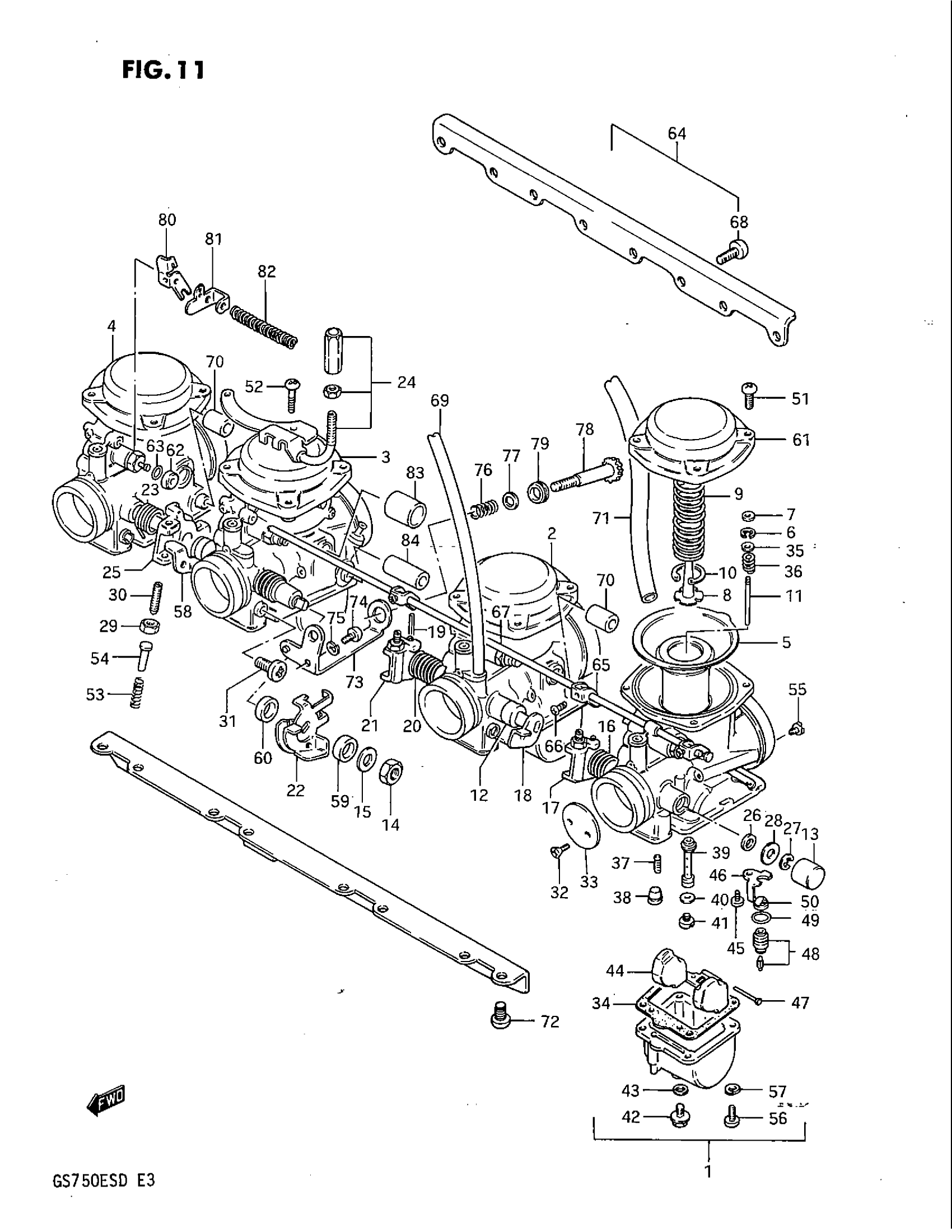

Suzuki GS750E (1983) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR, NO. 1 | LH

13201-31300

Unavailable

2

CARBURETOR, NO. 2 | ML

13202-31300

Unavailable

3

CARBURETOR, NO. 3 | MR

13203-31300

Unavailable

4

CARBURETOR, NO. 4 | RH; Includes Item(s) 5 - 63

13204-31300

Unavailable

5

DIAPHRAGM

13500-31300

Unavailable

6

E RING

13394-31210

$4.64

7

RING

13387-44030

$5.83

8

GUIDE HOLDER

13389-44030

Unavailable

9

SPRING

13503-31300

Unavailable

10

CLIP

13581-44030

$6.78

11

NEEDLE, JET (5D12)

13383-31300

Unavailable

12

WASHER | ML,MR

13557-49200

Unavailable

13

CAP | RH,LH

13578-47070

$4.52

14

NUT | MR This part replaces 08310-22088.

08310-00087

$2.13

15

WASHER | MR

13606-47070

Unavailable

16

SPRING | LH

13573-47070

Unavailable

17

SHAFT | LH

13550-47070

Unavailable

18

SHAFT | ML

13550-45400

Unavailable

19

PIN

13563-47070

Unavailable

20

SPRING | ML

13573-45110

Unavailable

21

LEVER | ML

13553-47070

Unavailable

22

LEVER | MR

13555-47070

Unavailable

23

SPRING | MR,RH

13573-47080

Unavailable

24

BRACKET | MR

13621-31300

Unavailable

25

SHAFT | RH

13550-47090

Unavailable

26

SEAL This part replaces 13556-31210.

13651-51011

$2.20

27

E RING | LH,RH

13617-44080

$2.90

28

GASKET | LH,RH

13557-47070

$3.59

29

NUT | LH,ML,RH

13607-47070

$3.13

30

SCREW | LH,ML,RH

13605-47080

$7.77

31

SCREW | MR This part replaces 13605-45410.

13605-73000

$11.95

32

SCREW

13604-44080

$2.92

33

VALVE, THROTTLE (135)

13551-47090

Unavailable

34

GASKET,FLOAT CH This part replaces 13251-44080.

13251-44081-H17

$8.68

35

WASHER

13382-44030

$3.71

36

SPRING

13388-44030

$8.12

37

JET, PILOT (37.5)

09492-35010

$9.32

38

PLUG

13357-44080

$5.10

39

JET, NEEDLE (Y-6)

09494-00414

Unavailable

40

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

41

JET, MAIN (117.5)

09491-23017

$11.83

42

SCREW

13247-44080

$7.97

43

O RING

13246-44080

$2.80

44

FLOAT

13250-44080

$28.49

45

SCREW This part replaces 02112-04068.

02112-0406B

$1.55

46

PLATE

13373-11400

$7.05

47

PIN

13254-92311

$2.07

48

VALVE ASSY, NEEDLE (2.0) This part replaces 13370-11400.

13370-44500

$50.98

49

O RING This part replaces 13374-44080.

13374-35C00

$5.99

50

FILTER This part replaces 13376-65010.

13376-19F00

$10.28

51

SCREW | LH:4,ML:4,MR:2,RH:4 This part replaces 13602-34390.

02112-7516A

$2.41

52

.SCREW | MR:2 This part replaces 13601-05188.

02112-0516A

$1.49

53

SPRING | LH,ML,RH

13268-44010

Unavailable

54

PIN | LH,ML,RH

13575-47070

Unavailable

55

NO DESCRIPTION AVAILABLE This part replaces 09493-32004.

09493-32005

Unavailable

56

SCREW This part replaces 02112-05168.

02112-05167

$1.97

57

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

58

SHAFT | MR

13550-45410

Unavailable

59

RING | ML

13574-45110

Unavailable

60

RING | MR

13574-45120

Unavailable

61

COVER, DIAPHRAGM

13502-34390

Unavailable

62

.CAP, STARTER VALVE

13682-31210

$4.37

63

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

64

FLANGE ASSY | Includes Item(s) 65 - 84

13210-31300

Unavailable

65

LEVER

13422-44080

Unavailable

66

SCREW

13605-09300

Unavailable

67

SHAFT

13410-45400

Unavailable

68

SCREW This part replaces 02142-05128.

02142-05127

$1.97

69

HOSE(4.5X8.5X60 This part replaces 13683-33200.

09355-45001-600

$9.48

70

PIPE

13685-31300

Unavailable

71

HOSE,5X10X600 This part replaces 13683-11420.

44421-13ER0

$10.06

72

SCREW This part replaces 02112-06128.

02112-06127

$1.84

73

BRACKET

13627-44110

Unavailable

74

SCREW This part replaces 02112-05108.

02112-05107

$1.49

75

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

76

SPRING This part replaces 13271-37100.

13271-93011

$5.32

77

WASHER This part replaces 13432-34390.

13427-38300

$1.92

78

ADJUSTER, SLOW

13267-34390

Unavailable

79

BUSH

13276-34390

Unavailable

80

LEVER

13413-49220

Unavailable

81

PLATE

13421-49220

Unavailable

82

SPRING

13437-49220

Unavailable

83

HOSE(6.5X11.5X6 This part replaces 13683-31300.

09355-65001-600

$12.00

84

PIPE

13685-31310

$20.18
