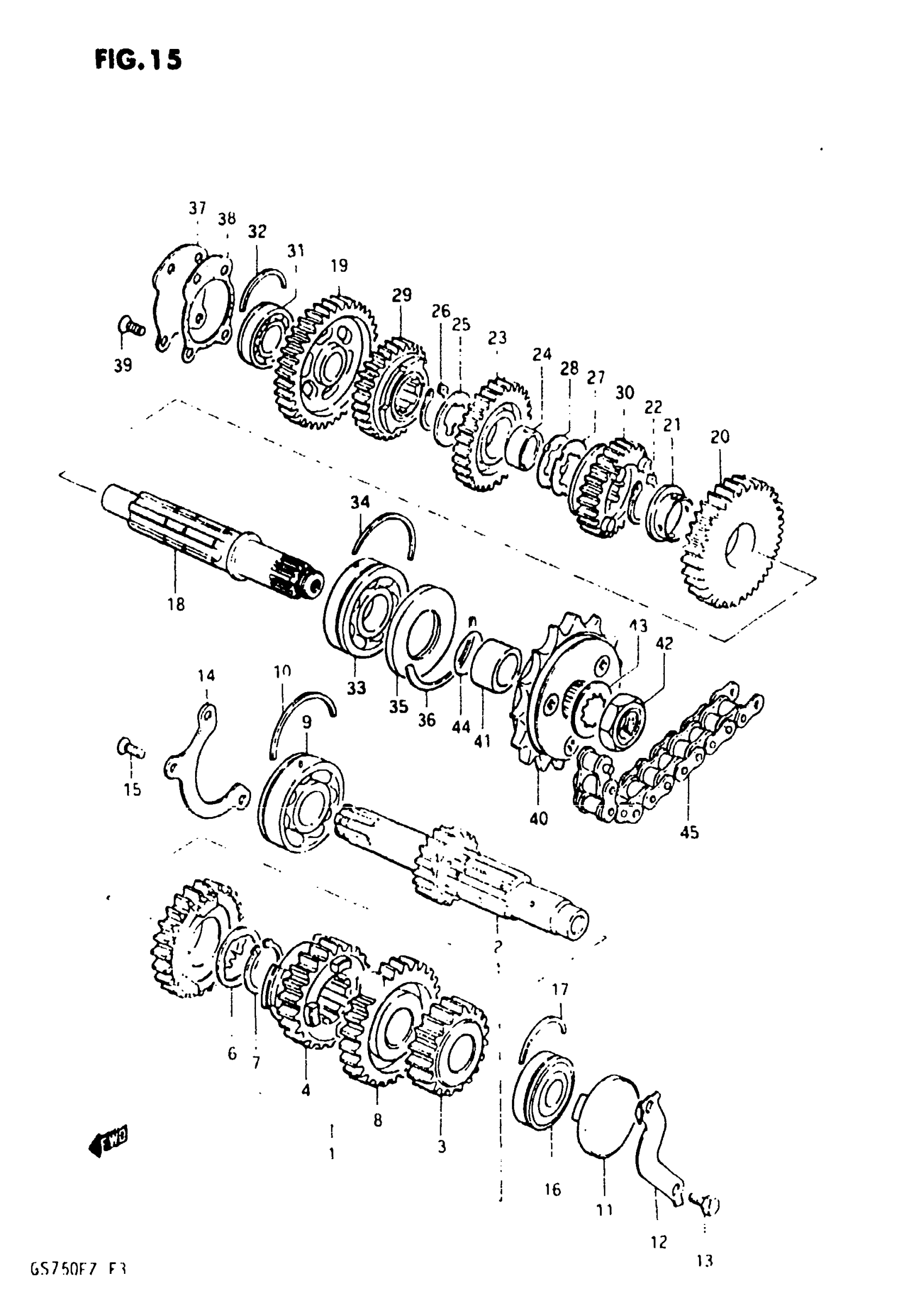

Suzuki GS750E (1982) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 8

24120-45400

Unavailable

2

COUNTERSHAFT (NT:14)

24121-45401

Unavailable

3

GEAR, 2ND DRIVE (NT:18)

24221-49001

Unavailable

4

GEAR, 3RD DRIVE (NT:21)

24231-49000

Unavailable

5

GEAR, 4TH DRIVE (NT:24)

24240-49000

Unavailable

6

WASHER

09167-28001

$4.60

7

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

8

GEAR, 5TH DRIVE (NT:26)

24250-49000

Unavailable

9

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

10

C RING This part replaces 09390-62006.

09390-62012

$7.31

11

PLUG, COUNTERSHAFT LH

09241-47004

$12.21

12

HOLDER

23117-45000

Unavailable

13

BOLT This part replaces 01107-06128.

01500-06127

$1.97

14

HOLDER, BEARING

24741-45000

Unavailable

15

SCREW This part replaces 02122-06168.

02122-06167

$1.49

16

BEARING, LH

09262-20044

$36.33

17

O RING

09390-47003

Unavailable

18

DRIVESHAFT

24131-49002

Unavailable

19

GEAR, 1ST DRIVEN (NT:36)

24310-45000

Unavailable

20

GEAR, 2ND DRIVEN (NT:32) This part replaces 24321-45400.

24321-00A00

Unavailable

21

BUSH

09301-28001

$19.93

22

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

23

GEAR 3RD DRIVEN This part replaces 24331-45100.

24331-49202

Unavailable

24

BUSH

24332-49000

$17.68

25

WASHER, RH

09167-28001

$4.60

26

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

27

WASHER, LH (T:1.5)

09167-28002

$4.77

28

WASHER, LH (T:1.0)

09169-28001

$3.85

29

GEAR, 4TH DRIVEN (NT:27)

24341-45100

Unavailable

30

GEAR, 5TH DRIVEN (NT:25) This part replaces 24351-45500.

24351-00A00

Unavailable

31

BEARING, LH This part replaces 09262-20041.

09262-20044

$36.33

32

O RING

09390-47003

Unavailable

33

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

34

C RING This part replaces 09390-62006.

09390-62012

$7.31

35

OIL SEAL

09283-32012

$16.79

36

O RING

09390-62008

Unavailable

37

PLATE

24761-45000

Unavailable

38

GASKET,DR SHFT This part replaces 24762-45000.

24762-45000-H17

$2.77

39

SCREW This part replaces 02122-06168.

02122-06167

$1.49

40

SPROCKET ASSY,E This part replaces 27510-49010.

27510-49012

Unavailable

41

SPACER

09180-25052

Unavailable

42

NUT This part replaces 09159-20001.

09159-20004

$15.67

43

WASHER (25.3X41.6X1) This part replaces 09167-25014.

09167-25019

$2.19

44

O RING

09280-25001

$1.56

45

CHAIN, DRIVE This part replaces 27600-45410.

27600-49210

Unavailable
