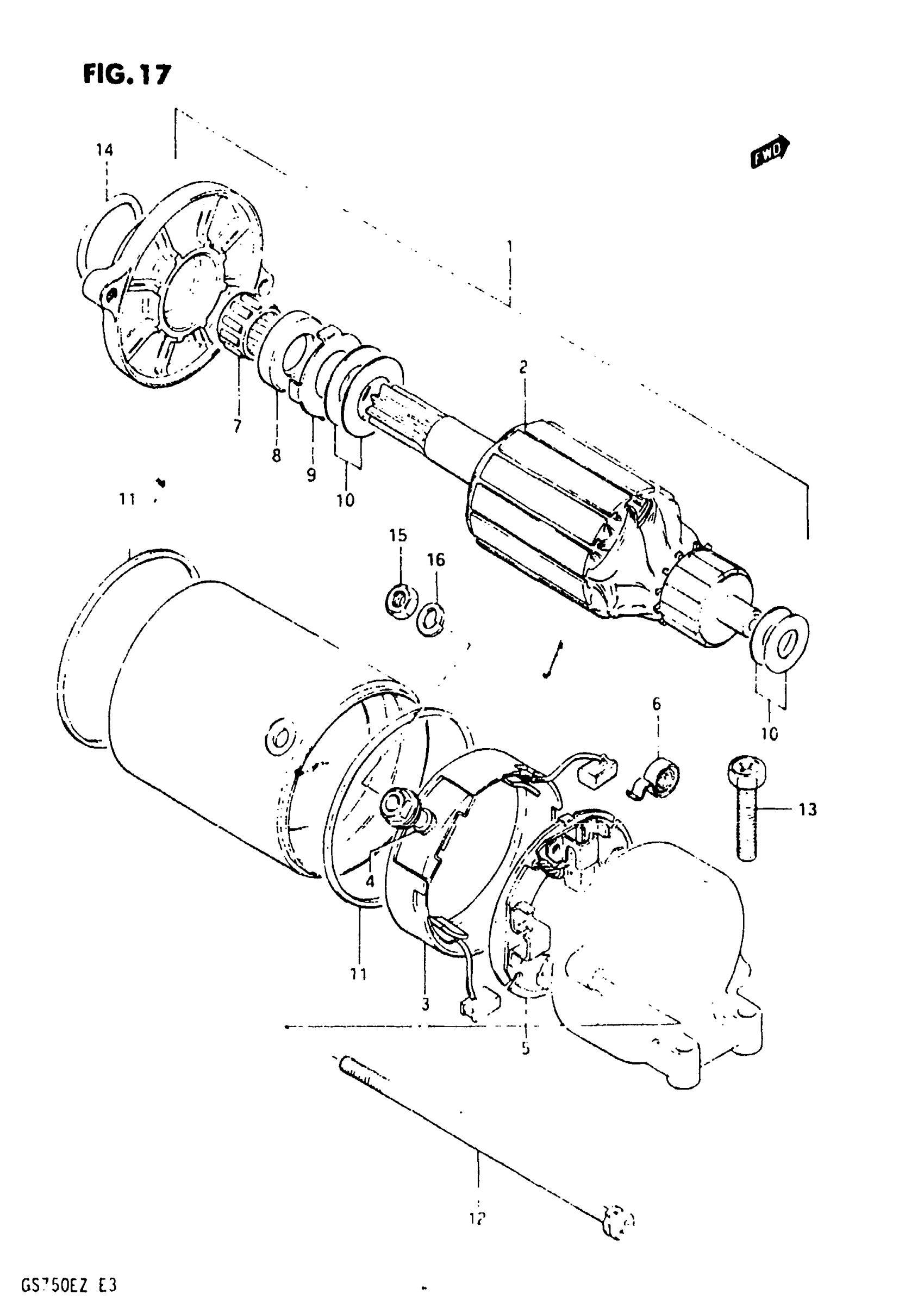

Suzuki GS750E (1982) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 12 This part replaces 31100-49040.

31100-49050

Unavailable

2

ARMATURE

31311-49040

Unavailable

3

TERMINAL SET, BRUSH (+) This part replaces 31130-49040.

31130-06B00

Unavailable

4

O RING

31143-49040

$3.71

5

HOLDER SET, BRUSH (-) This part replaces 31132-49040.

31132-06B00

Unavailable

6

SPRING, BRUSH

31135-49040

Unavailable

7

BEARING

31155-49040

Unavailable

8

OIL SEAL

31153-49040

Unavailable

9

SHIM SET This part replaces 31360-49240.

31170-31300

Unavailable

10

SHIM SET This part replaces 31360-49040.

31170-31300

Unavailable

11

SEAL RING

31264-49040

Unavailable

12

SEREW

31281-49040

Unavailable

13

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

14

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

$1.55

15

.NUT This part replaces 08310-22068.

08310-00067

$2.13

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
