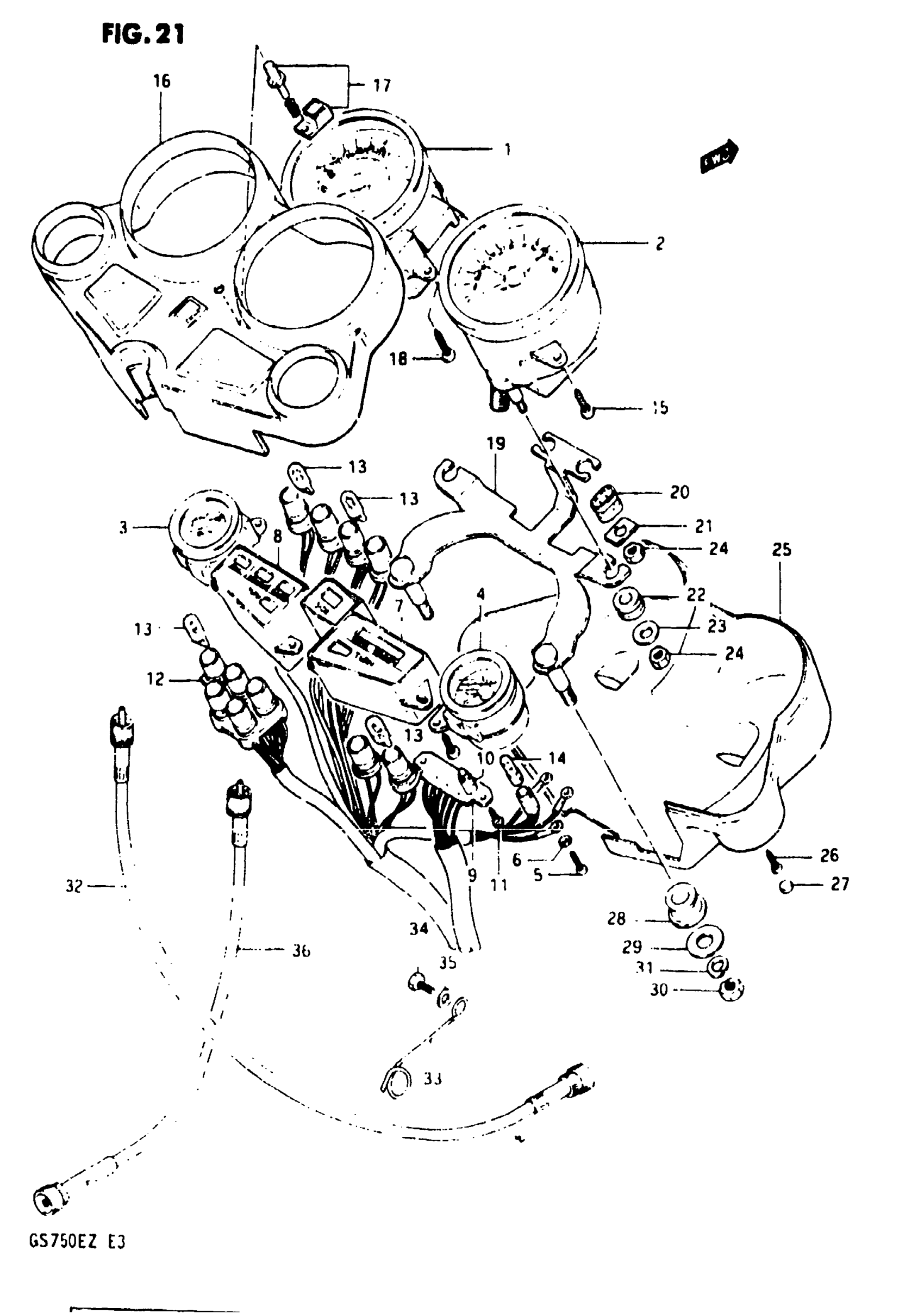

Suzuki GS750E (1982) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) This part replaces 34110-45770.

34110-49511

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 34210-45780.

34210-49500

Unavailable

3

FUELMETER

34320-45720

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 34730-45750.

34730-45752

Unavailable

5

SCREW This part replaces 02112-03068.

02112-0306B

$1.59

6

WASHER This part replaces 08322-21038.

08322-01037

$1.93

7

CASE, PILOT LAMP RH

36330-45720

Unavailable

8

CASE, PILOT LAMP LH

36360-45720

Unavailable

9

SOCKET, GEAR INDICATOR | Includes Item(s) 10

36453-45720

Unavailable

10

BULB

09471-12071

$7.20

11

NO DESCRIPTION AVAILABLE This part replaces 36456-34510.

09132-03501

Unavailable

12

SOCKET, PILOT LAMP

34170-45720

Unavailable

13

BULB (12V,3.4W)

09471-12028

$1.99

0

BULB (12V,2W)

09471-12023

Unavailable

0

SCREW This part replaces 09132-04005.

03112-04163

Unavailable

16

HOOD ASSY

34150-45720

Unavailable

17

TRIP KNOB SET

34124-45720

Unavailable

18

SCREW This part replaces 03211-04168.

03112-04163

Unavailable

19

BRACKET, METER

34950-45720

Unavailable

20

CUSHION

34995-45720

Unavailable

21

WASHER

34182-45720

Unavailable

22

CUSHION, METER NO.1 This part replaces 34996-45720.

34189-32B00

$5.78

23

WASHER (5.5X16X1.2) This part replaces 34181-30520.

09160-05037

$1.49

24

NUT This part replaces 08310-22058.

08310-00057

$1.84

25

CASE, LOWER

34193-45720

Unavailable

26

SCREW This part replaces 03111-04128.

03111-0412A

$1.93

27

CAP

34198-45720

Unavailable

28

CUSHION

34956-31001

$4.37

29

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

30

NUT This part replaces 08310-12088.

08310-00087

$2.13

31

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

32

CABLE,SPEEDOMET This part replaces 34910-34400.

34910-45421

Unavailable

33

GUIDE, CABLE

34938-45100

$6.57

34

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

35

WASHER This part replaces 08322-21068.

08322-01067

$2.13

36

CABLE ASSY,TACH This part replaces 34940-33211.

34940-38301

$57.32
