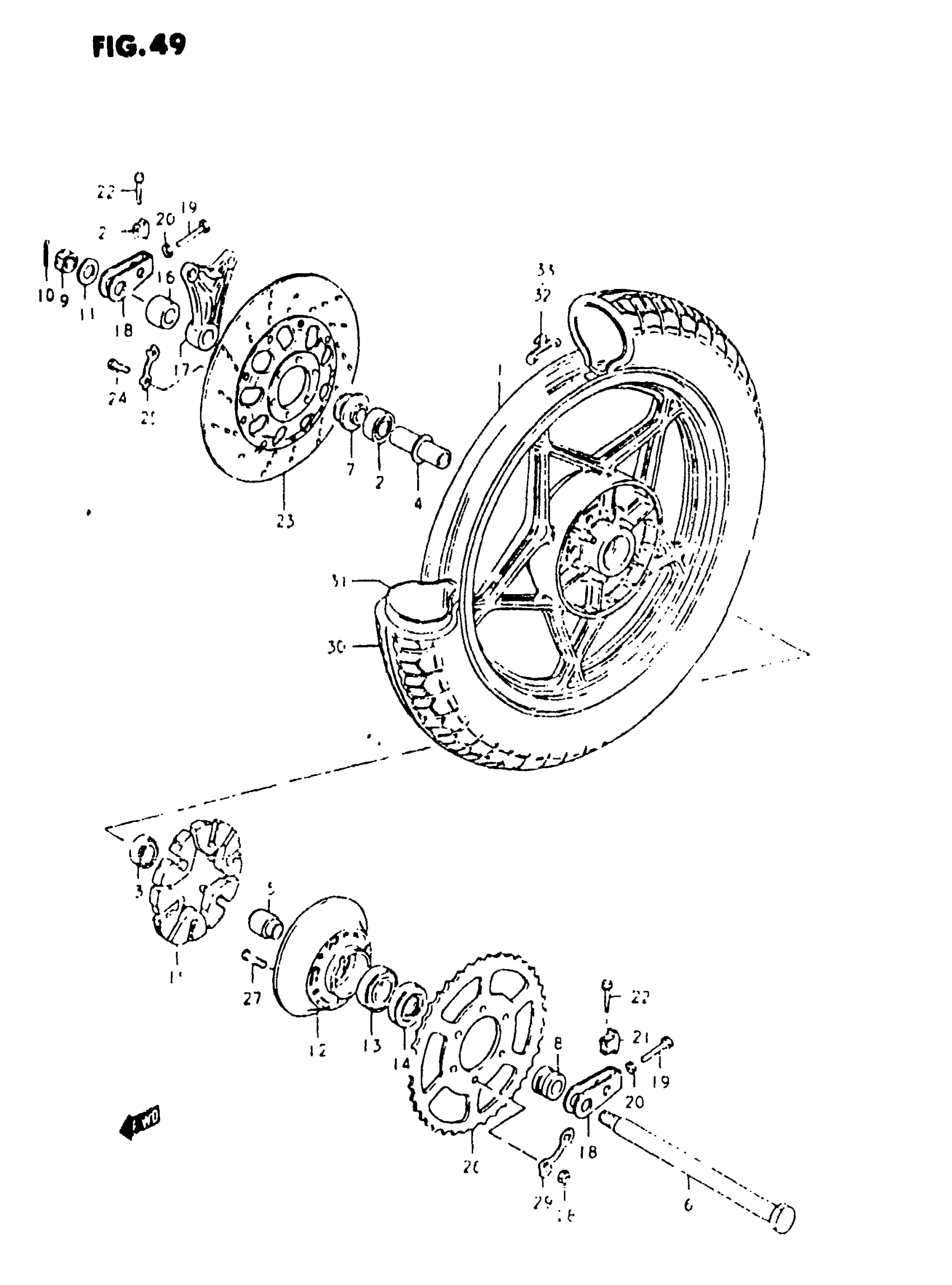

Suzuki GS750E (1982) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (2.15x18)

64111-49300-12U

Unavailable

2

BEARING, RH

08133-62047

$28.61

3

BEARING, LH This part replaces 08153-62047.

09262-20042

$23.28

4

SPACER, BEARING

64731-45000

Unavailable

5

SPACER,RR HUB B This part replaces 64733-31000.

64733-3100V

Unavailable

6

AXLE,REAR This part replaces 64711-49000.

64711-4900V

Unavailable

7

SPACER, AXLE, RH This part replaces 64740-45001.

64740-45002

Unavailable

8

SPACER, LH (20x33x28.3)

09180-20054

Unavailable

9

NUT This part replaces 08314-31188.

08314-3118A

$5.16

10

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

11

WASHER (19x34x4)

09160-19008

Unavailable

12

DRUM, SPROCKET This part replaces 64611-31001.

64611-31003

Unavailable

13

BEARING, DRUM This part replaces 08113-63050.

09262-25073

$25.92

14

OIL SEAL

09285-33001

$13.27

15

SHOCK ABSORBER, HUB This part replaces 64651-31000.

64651-31001

$11.19

16

SPACER, RH

09180-20070

Unavailable

17

BRACKET, REAR CALIPERS

69721-47011

Unavailable

18

ADJUSTER, CHAIN This part replaces 61410-45201.

61410-31001

$49.02

19

BOLT (8X50) This part replaces 09104-08018.

09104-08034

$3.04

20

NUT This part replaces 08310-12088.

08310-00087

$2.13

21

SUPPORTER,CHAIN This part replaces 61433-31000.

61433-3100V

Unavailable

22

BOLT This part replaces 01517-08408.

01550-08407

$3.42

23

DISK, REAR BRAKE

59210-18450

Unavailable

24

BOLT (8x34)

09100-08094

$2.71

25

WASHER

09169-08016

$2.41

26

SPROCKET, REAR (NT:41)

64511-45001

Unavailable

27

BOLT This part replaces 09119-10002.

09105-10001

$2.87

28

NUT This part replaces 08310-12108.

08310-00107

$2.19

29

WASHER

09169-10007

Unavailable

30

TIRE (4.00H-18) | IRC

65100-45410

Unavailable

30

TIRE (4.00H.18) | BS

65100-45430

Unavailable

31

TUBE, INNER

65200-49015

Unavailable

32

BALANCER, 5 (20G)

55411-47001

Unavailable

33

BALANCER, L (30G)

55412-47001

Unavailable
