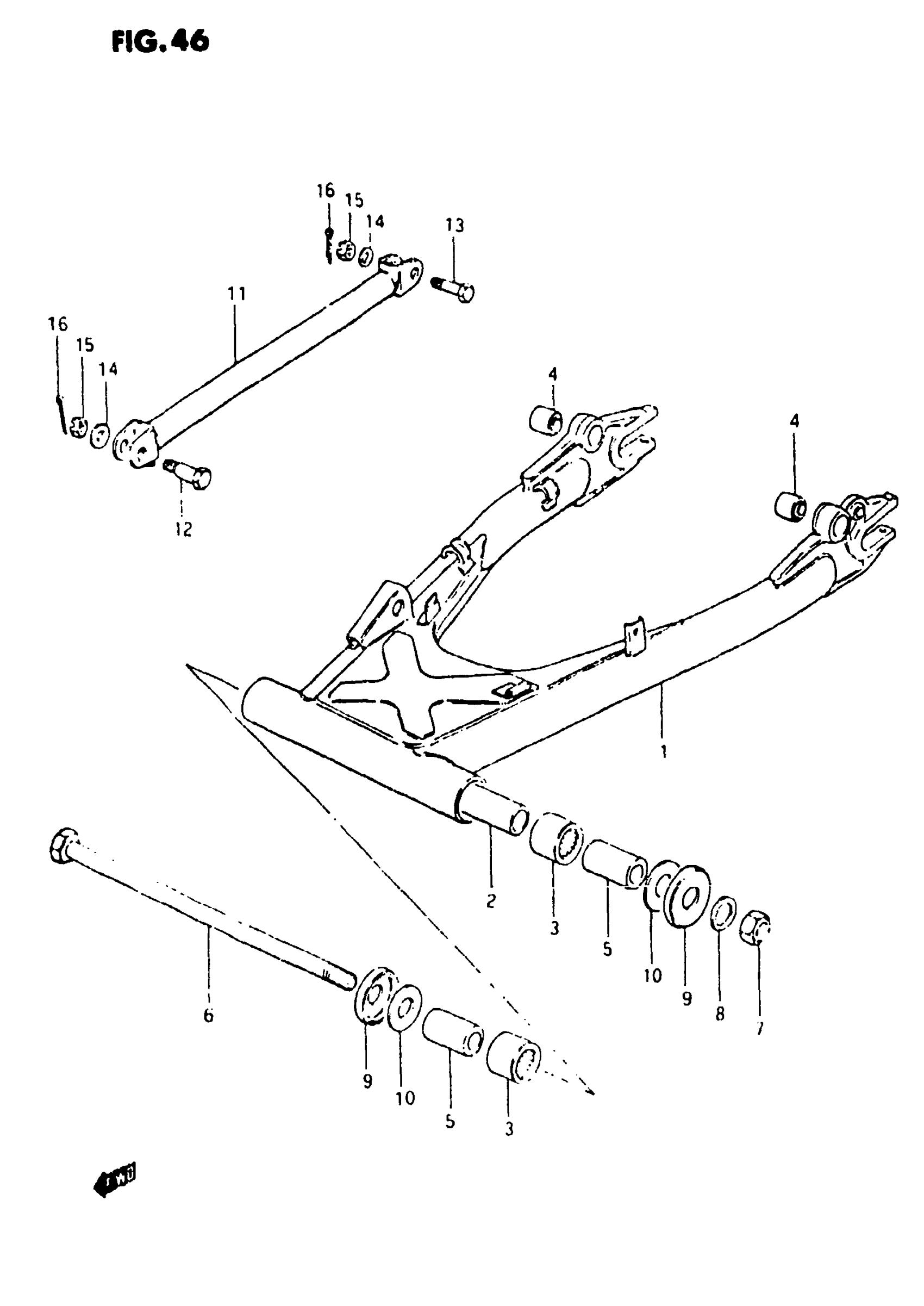

Suzuki GS750E (1982) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SWINGING ARM (BLACK) | Includes Item(s) 2 - 4

61100-45861-019

Unavailable

2

SPACER

61281-45001

Unavailable

3

BEARING

09263-22017

$22.58

4

BUSHING, REAR

09319-10008

$7.40

5

SPACER

61251-45001

$17.37

6

SHAFT, PIVOT

61211-45400

Unavailable

7

NUT This part replaces 08319-21148.

08319-2114A

$3.96

8

WASHER This part replaces 08322-11148.

08322-01147

$1.91

9

COVER, DUST SEAL

61262-45002

$7.97

10

WASHER

09160-14020

$2.19

11

TORQUE LINK, REAR (BLACK)

64310-49000-019

Unavailable

12

BOLT,10X39 This part replaces 09111-10011.

09111-10022-XC0

Unavailable

13

BOLT, REAR

09101-10017

Unavailable

14

WASHER, KNUCKLE END This part replaces 08322-11106.

08322-0110A

$1.84

15

NUT This part replaces 08314-41108.

08314-4010B

$2.50

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
