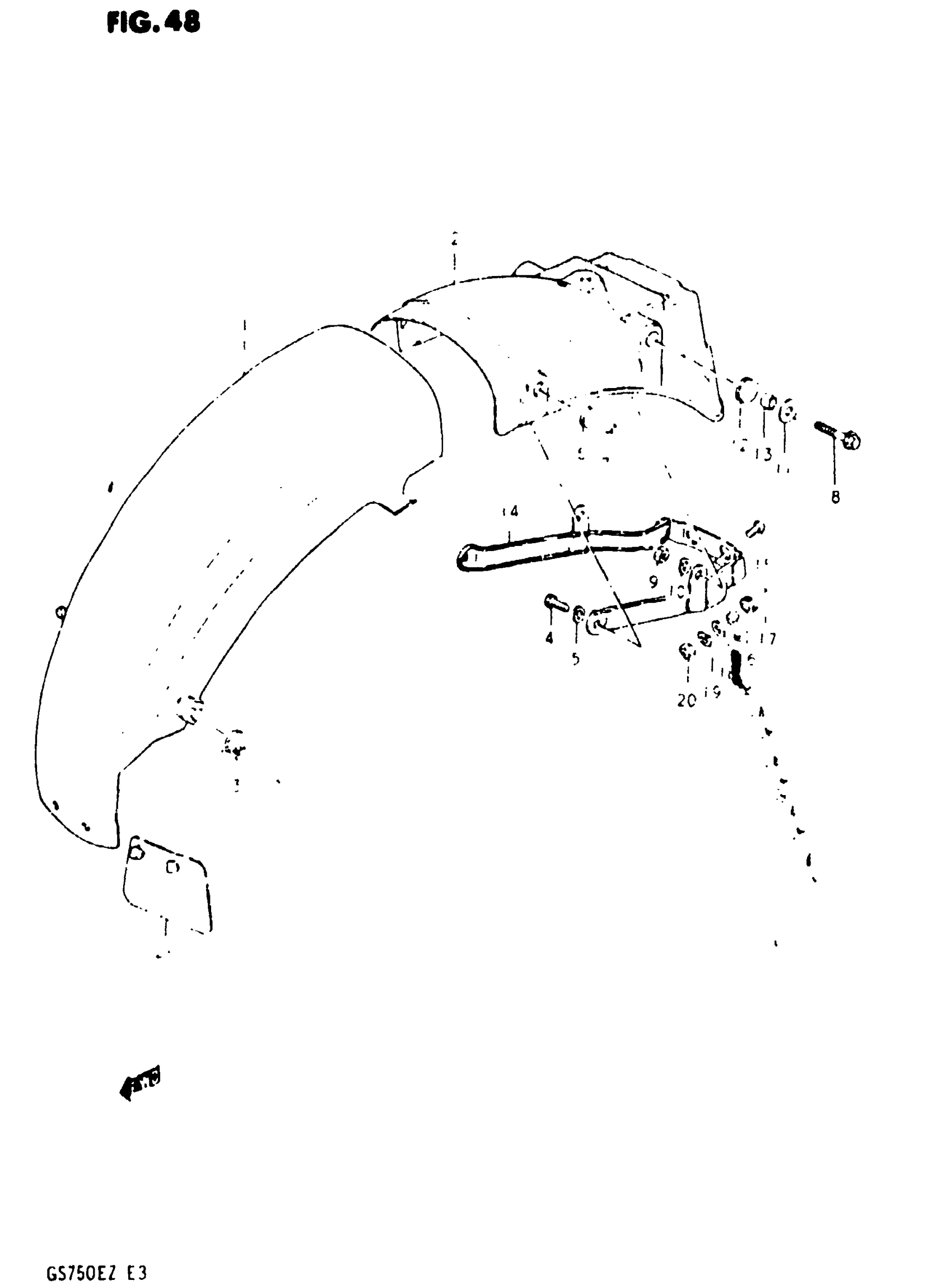

Suzuki GS750E (1982) REAR FENDER Diagram

#

Description
Price

1

BODY,RR FENDER This part replaces 63112-49003.

63112-49004

Unavailable

2

BODY, REAR FENDER REAR

63113-49200-291

Unavailable

3

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.91

4

BOLT This part replaces 01107-06208.

01500-06207

$1.99

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

6

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.70

7

SPACER (6.1X9X7.5)

09180-06038

$1.86

8

BOLT This part replaces 01517-08358.

01550-08357

$3.19

9

NUT This part replaces 08310-12088.

08310-00087

$1.83

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

11

WASHER (8.5X26X1.2)

09160-08032

$2.28

12

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.89

13

SPACER This part replaces 09180-08021.

09180-08188

$2.68

14

REINFORCEMENT, REAR FENDER

63120-49000

Unavailable

15

SCREW

02142-06207

$1.38

16

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$1.68

17

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.91

18

WASHER This part replaces 09160-06012.

09160-06054

$1.62

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

20

.NUT This part replaces 08310-11068.

08310-00067

$1.83

21

MUD GUARD, REAR FENDER

63411-31900

Unavailable
