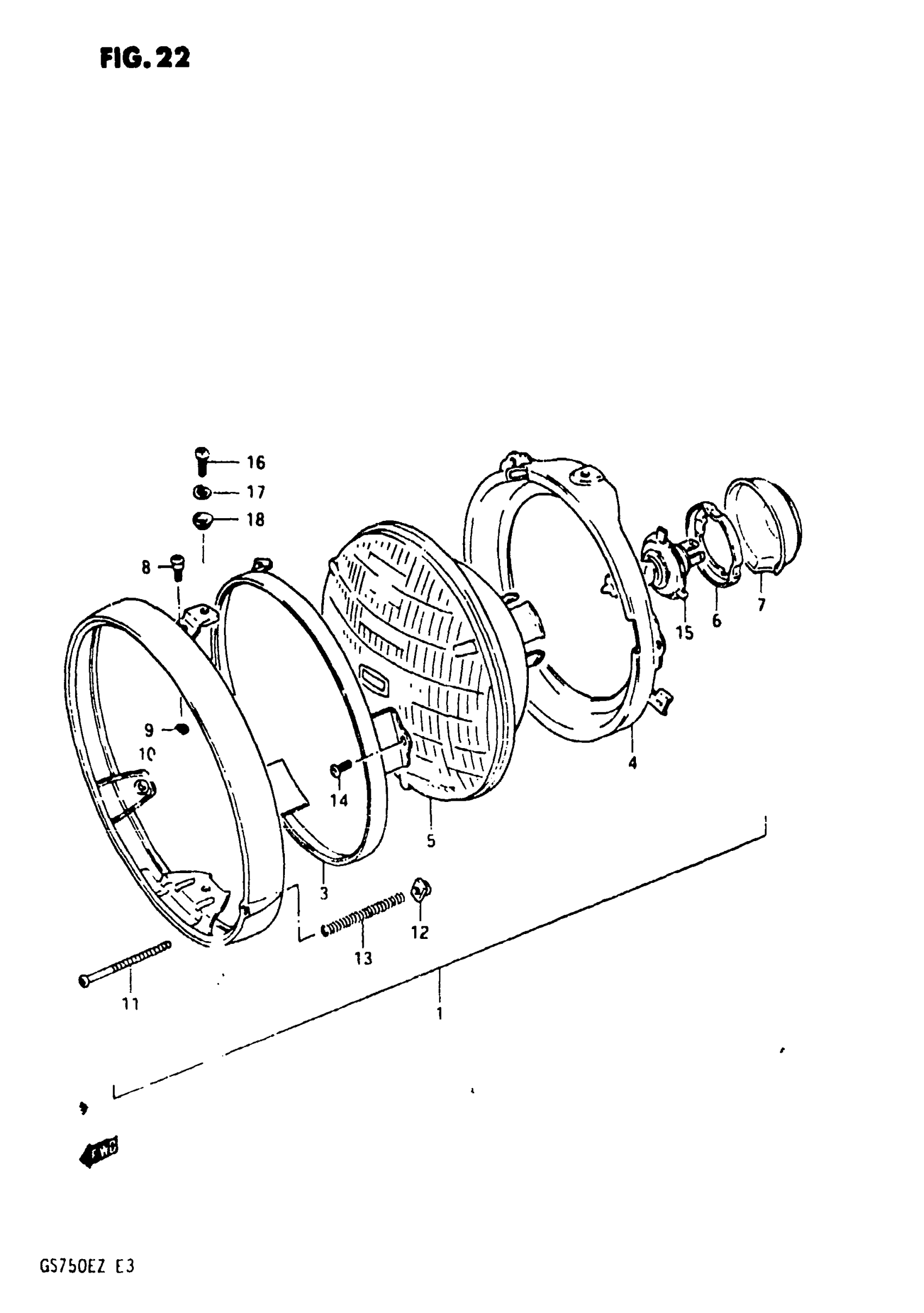

Suzuki GS750E (1982) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 14

35100-34430-999

Unavailable

2

RIM

35111-45030

Unavailable

3

RING

35127-45030

Unavailable

4

RING, MOUNTING

35130-45030

Unavailable

5

UNIT

35121-34430

Unavailable

6

HOLDER, BULB

35136-34400

Unavailable

7

COVER, SOCKET This part replaces 35173-45000.

35173-20A01

$18.02

8

SCREW

35181-15611

$3.37

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

10

NUT This part replaces 08310-11048.

08310-00047

$2.23

11

SCREW This part replaces 35151-45030.

35151-45900

$3.65

12

NUT

35152-15611

$3.25

13

SPRING

35154-31900

$5.32

14

SCREW This part replaces 02112-04088.

02112-04087

$1.49

15

BULB (12V, 60/55W, H4) | EXECUTED LOCALLY

09471-12060

$25.15

16

SCREW This part replaces 09125-05022.

09125-05115

$3.20

17

WASHER This part replaces 09162-05003.

09162-05002

$1.49

18

WASHER

09169-06021

$2.36
