Partiron

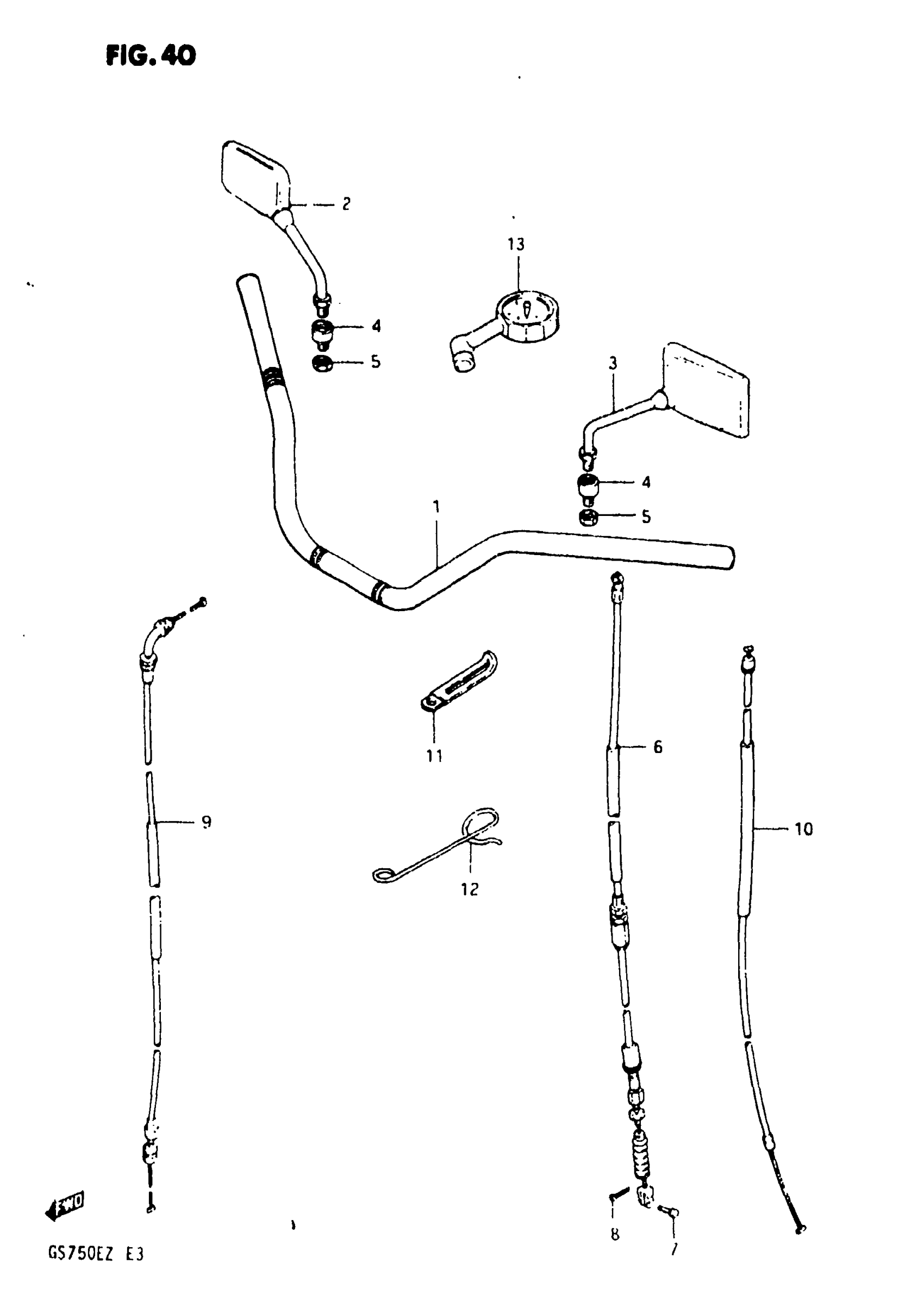

Suzuki GS750E (1982) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56110-45450

Unavailable

2

MIRROR ASSY,RH This part replaces 56500-45400.

56500-43451

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 56600-45400.

56600-43451

Unavailable

4

CUSHION, REAR VIEW MIRROR

56700-45400

$21.90

5

NUT This part replaces 08310-22108.

08310-00107

$2.19

6

CABLE, CLUTCH This part replaces 58200-45430.

58200-45401

Unavailable

7

PIN

09200-06011

Unavailable

8

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

9

CABLE,THROTTLE This part replaces 58300-49500.

58300-11491

Unavailable

10

CABLE,STARTER This part replaces 58410-45920.

58410-47X00

Unavailable

11

CLAMP This part replaces 09404-06413.

09404-06039

$1.74

12

CLAMP, CLUTCH CABLE

58626-45101

Unavailable

13

GAUGE, FRONT FORK AIR

96200-41330

Unavailable
