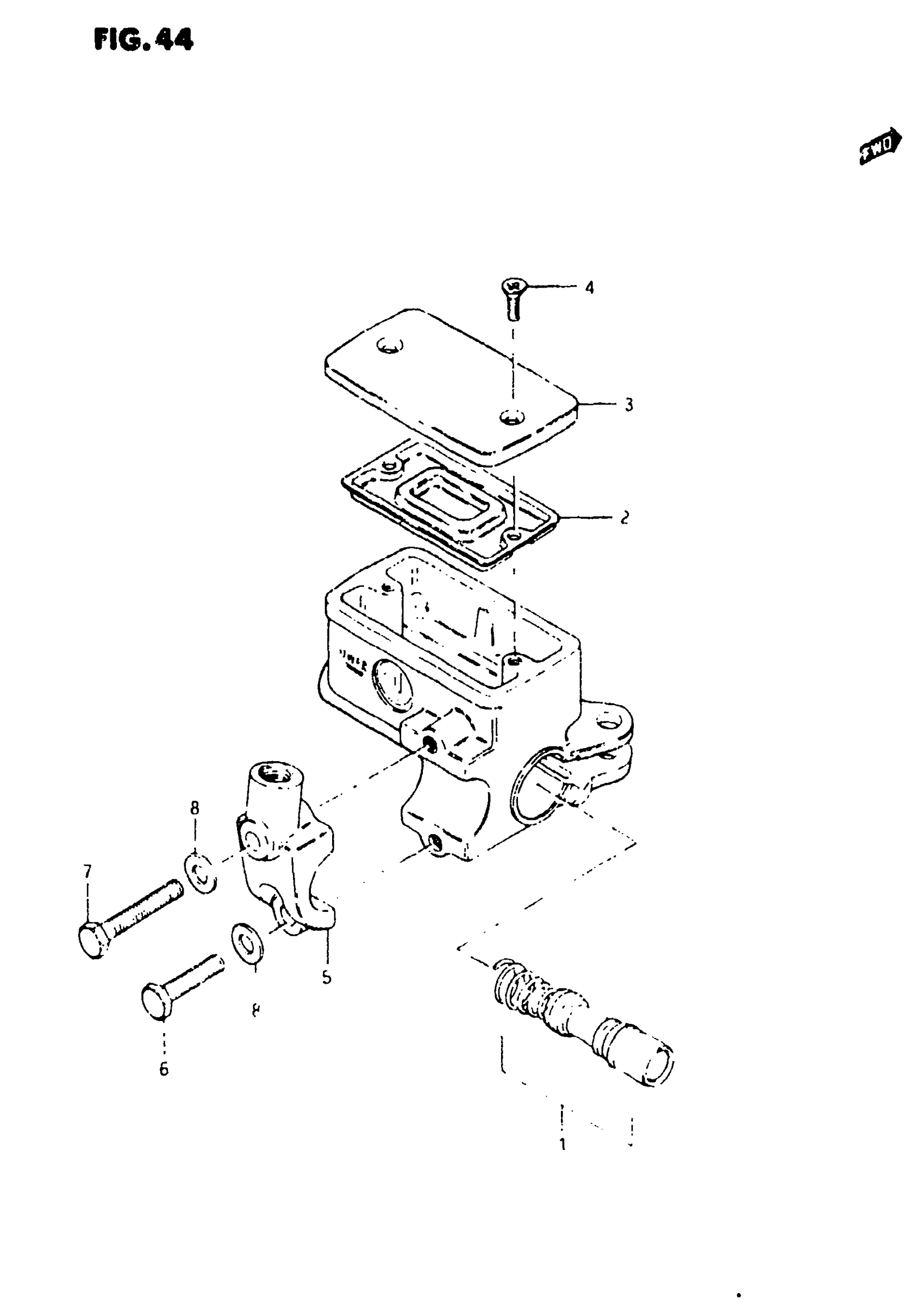

Suzuki GS750E (1982) FRONT MASTER CYLINDER Diagram

#

Description

Price

0

CYLINDER ASSY, MASTER | Includes Item(s) 1 - 8

59600-49440

Unavailable

1

PISTON & CUP SET

59600-45831

Unavailable

2

DIAPHRAGM,MASTE This part replaces 59667-49300.

59667-49301

Unavailable

3

CAP This part replaces 59669-49330.

59669-49350

Unavailable

4

SCREW

69689-49300

$1.91

5

HOLDER

59671-44300

$17.37

6

BOLT This part replaces 01107-06258.

01500-06257

$1.97

7

BOLT This part replaces 01107-06408.

01500-0640B

$2.62

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13
