1982 Suzuki GS750E Front LH Dumper Diagram

← All diagrams

Find the part on the Front LH Dumper diagram for your 1982 Suzuki GS750E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

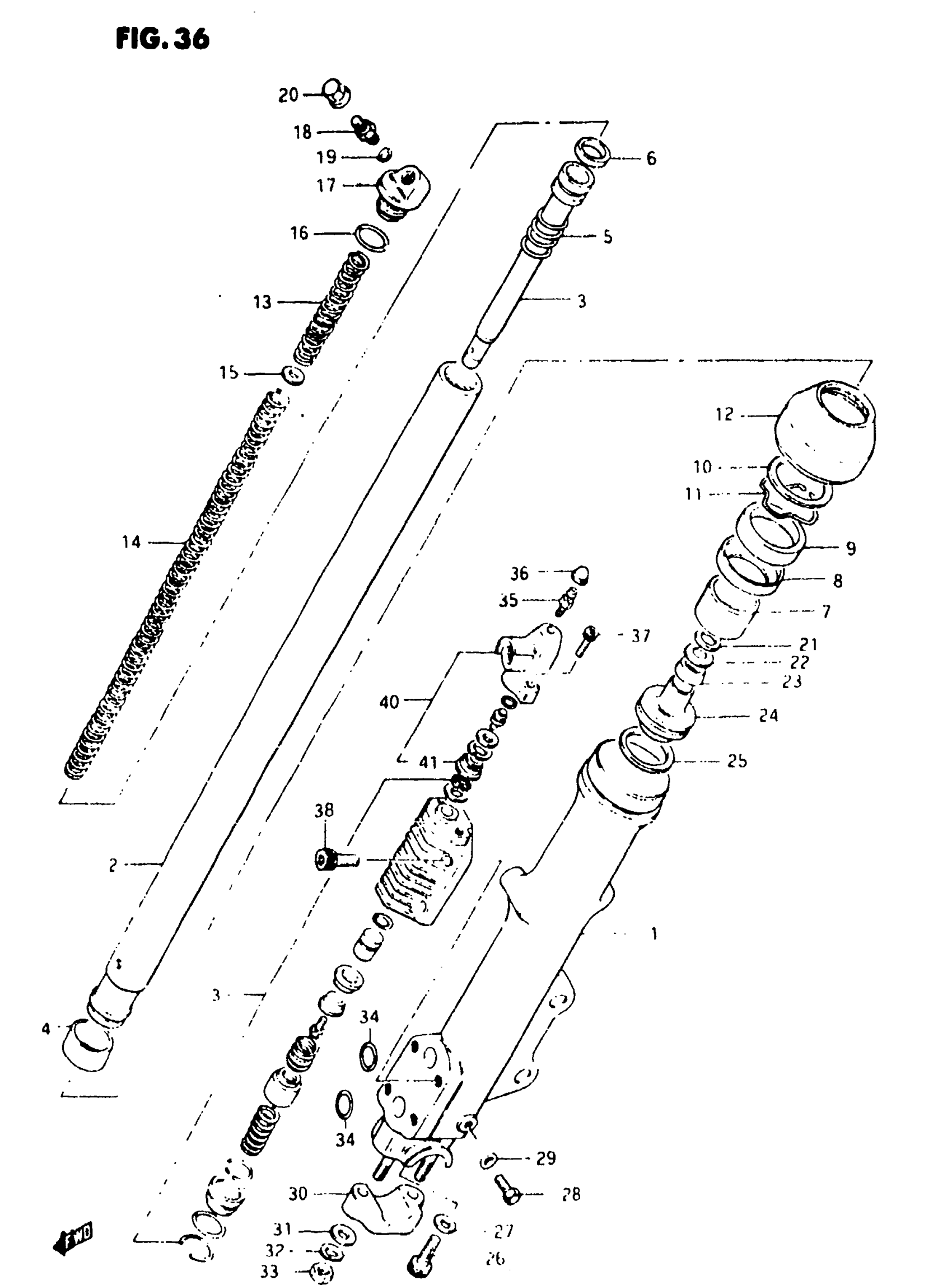

1982 Suzuki GS750E Front LH Dumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

FRONT LH DUMPER | Includes Item(s) 1 - 41

51104-45900

1
Out of stock

1

OUTER TUBE LH

51140-45900

1
Out of stock

2

INNER TUBE

51110-45900

1
Out of stock

3

CYLINDER

51146-45900

1
Out of stock

4

PISTON

51121-45400

1
Out of stock

5

SPRING REBOUND

51177-45030

1
Out of stock

6

RING PISTON

51196-31230

1
Out of stock

7

GUIDE BUSH

51152-45400

1
Out of stock

8

SPACER, SEAL This part replaces 51168-45031.

51168-30B00

1
Out of stock

9

SEAL, OIL This part replaces 51153-34200.

51153-19D10

1
Out of stock

10

RING BACK UP

51158-45440

1
Out of stock

11

RING, STOPPER This part replaces 51156-45440.

51156-01A00

1
Out of stock

12

DUST SEAL This part replaces 51571-34200.

51571-20520

1
Out of stock

13

SPRING A

51171-45440

1
Out of stock

14

SPRING

51184-45900

1
Out of stock

15

SPRING

51192-47200

1
Out of stock

16

O RING This part replaces 51117-31030.

51181-31030

1
Out of stock

17

BOLT

51351-45440

1
Out of stock

18

VALVE

51293-45440

1
Out of stock

19

.O RING (D:1.9,ID:5.7) This part replaces 51117-45440.

09280-06005

1
Out of stock

20

CAP

51294-45440

1
Out of stock

21

VALVE C

51126-34310

1
Out of stock

22

VALVE SPRING

51127-34310

1
Out of stock

23

OIL LOCK PIECE VALVE

51125-34310

1
Out of stock

24

OIL LOCK PIECE

51195-34310

1
Out of stock

25

PISTON RING

51123-34310

1
Out of stock

26

BOLT

51147-48130

1
Out of stock

27

O RING This part replaces 51148-31030.

51148-36011

1
Out of stock

28

BOLT, PLATE (6X8) This part replaces 01107-06088.

09100-06157

1
Out of stock

29

GASKET

51183-31030

1
Out of stock

30

HOLDER, AXLE This part replaces 51132-44040.

51132-44040-15T

1
Out of stock

31

WASHER This part replaces 08322-21088.

08322-01087

2
Out of stock

32

2

$2.28

In stock

33

2

$1.93

In stock

34

O-RING (D:2.4,ID:15.8) This part replaces 51799-11420.

09280-15007

2
Out of stock

35

SCREW

51778-11420

1
Out of stock

36

BLEEDER CAP

51779-11420

1
Out of stock

37

BOLT This part replaces 51797-11420.

07130-05167

2
Out of stock

38

BOLT This part replaces 51796-11420.

07130-06167

4
Out of stock

39

MOOULATOR INNER PARTS SET

51700-11850

1
Out of stock

40

MODULATOR INNER PARTS SET LH

51700-11810

1
Out of stock

41

SEPALATOR

51777-11420

1
Out of stock
