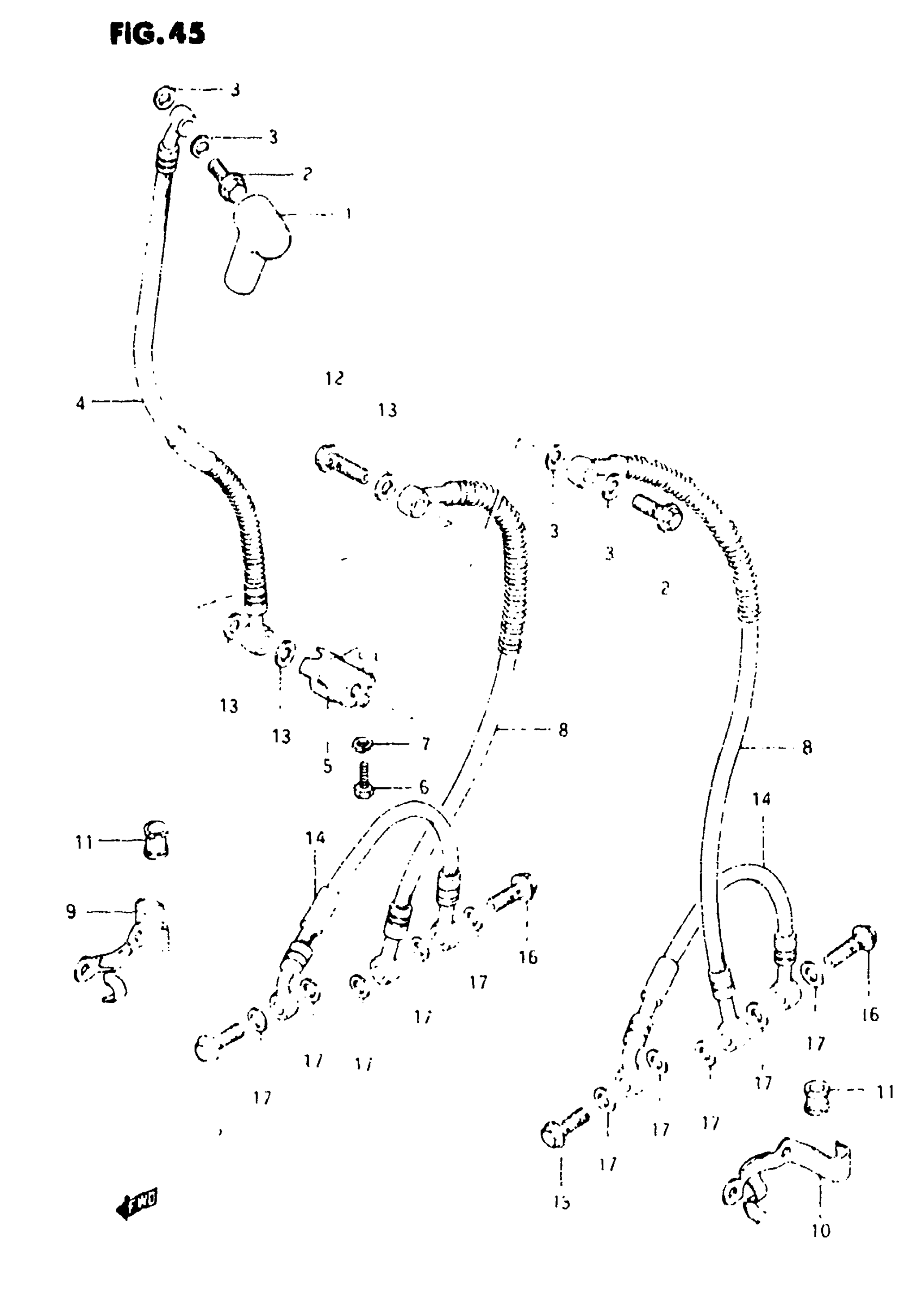

Suzuki GS750E (1982) FRONT BRAKE HOSE Diagram

#

Description
Price

1

BOOT, MASTER CYLINDER

59711-49001

$7.51

2

UNION This part replaces 09360-10007.

09360-10017

$3.42

3

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

4

HOSE, BRAKE NO.1

59480-49531

Unavailable

5

JOINT, BRAKE HOSE This part replaces 59491-45000.

59491-45001

Unavailable

6

BOLT This part replaces 01107-06208.

01500-06207

$2.28

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

HOSE, BRAKE NO.2

59240-49210

Unavailable

9

CLAMP, HOSE LH This part replaces 59270-45900.

59270-45901

Unavailable

10

CLAMP, HOSE RH This part replaces 59260-45900.

59260-45901

Unavailable

11

BUSHING

59244-49000

Unavailable

12

UNION BOLT This part replaces 09360-10008.

09360-10018

$6.80

13

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

14

HOSE, ANTINOSE

59520-45910

Unavailable

15

UNION This part replaces 09360-10007.

09360-10017

$3.42

16

UNION BOLT This part replaces 09360-10008.

09360-10018

$6.80

17

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84
