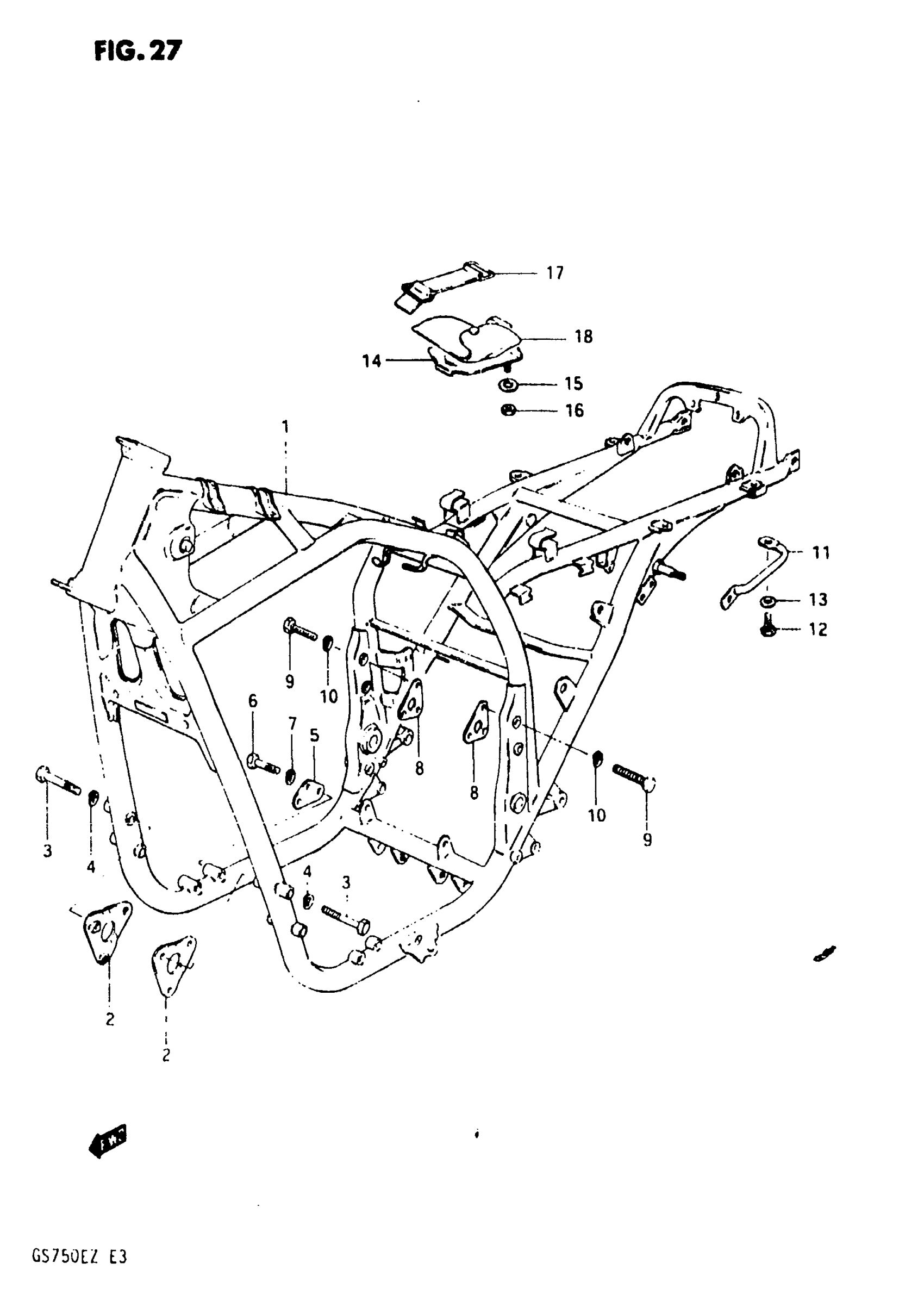

Suzuki GS750E (1982) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-45405-019

Unavailable

2

PLATE, NO.1 (BLACK)

41910-49200-019

Unavailable

3

BOLT This part replaces 01107-08658.

01500-0865B

$3.49

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

PLATE, NO.2 (SILVER) This part replaces 41921-49000-019.

41921-49000-13L

Unavailable

6

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

PLATE, NO.3 (SILVER) This part replaces 41940-49000-019.

41940-49000-13L

Unavailable

9

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

GRIP, FRAME HANDLE

41610-45400

Unavailable

12

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

13

WASHER This part replaces 08322-11088.

08322-01087

$2.13

14

HOLDER, TOOL This part replaces 41550-49200.

41550-49201

$16.00

15

WASHER This part replaces 09160-06007.

09160-06084

$1.78

16

.NUT This part replaces 08310-11068.

08310-00067

$2.13

17

BAND This part replaces 09462-00072.

09462-00094

$3.16

18

TOOL ASSY This part replaces 09800-07800.

09800-21068

Unavailable
