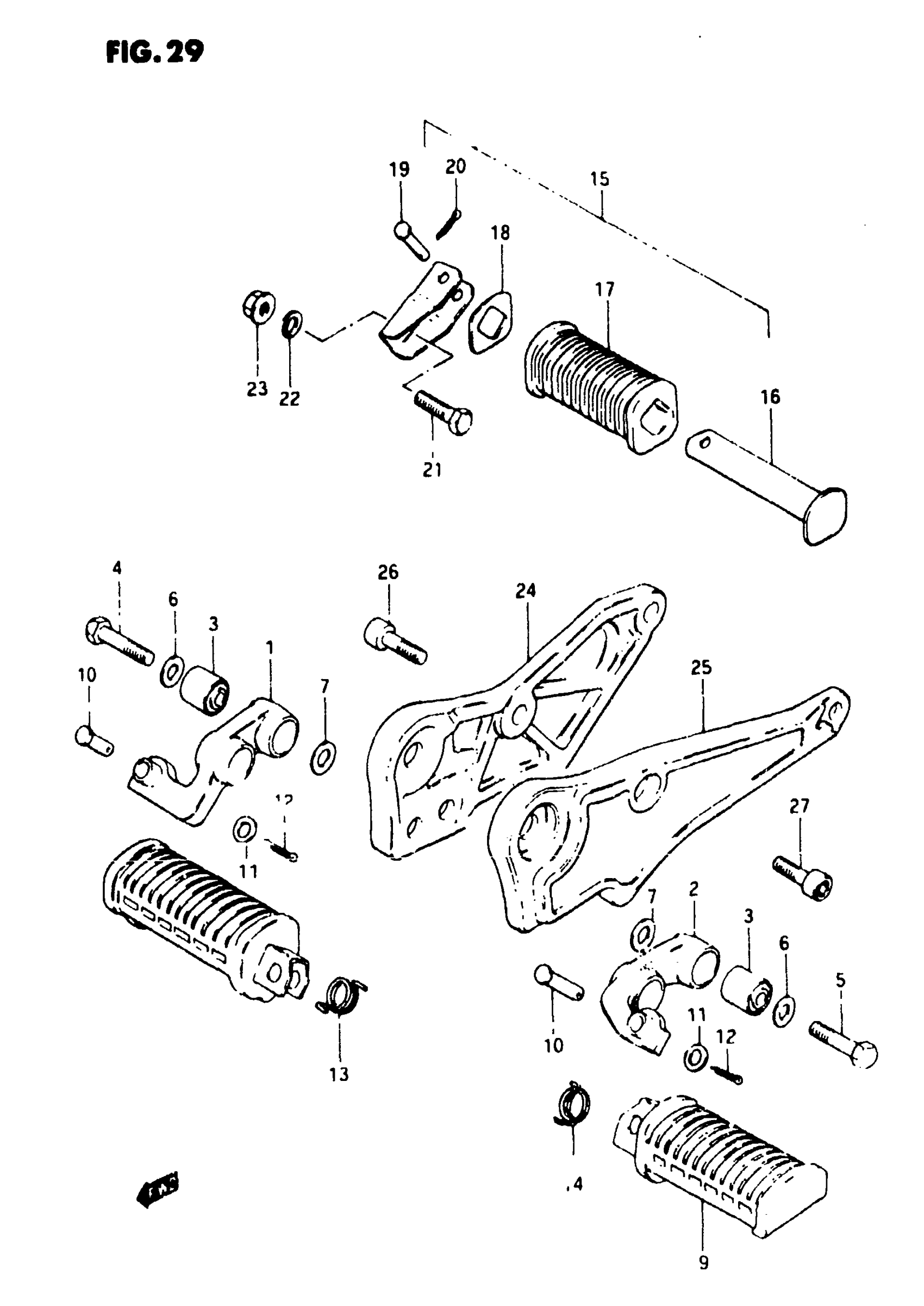

Suzuki GS750E (1982) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH

43510-49500

Unavailable

2

BAR, FRONT FOOTREST LH

43520-49500

Unavailable

3

BUSHING

09319-10008

$7.40

4

BOLT, RH

09104-10009

Unavailable

5

BOLT (10X38) This part replaces 09104-10012.

09104-10029

$3.55

6

WASHER, REAR This part replaces 09160-10057.

09160-10142

$2.34

7

WASHER This part replaces 09160-10058.

09160-10005

$1.87

8

RUBBER FR FOOTR This part replaces 43550-34500.

43550-34501

$54.32

9

RUBBER FR FOOTR This part replaces 43560-34500.

43560-34501

Unavailable

10

PIN

09200-08002

$2.05

11

WASHER This part replaces 08322-11088.

08322-01087

$2.13

12

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

13

SPRING, RH This part replaces 09448-19012.

09448-19014

Unavailable

14

SPRING, LH This part replaces 09448-19013.

09448-19015

Unavailable

15

FOOTREST, PILLION RH This part replaces 43600-49500.

43600-49502

Unavailable

15

FOOTREST, PILLION LH | Includes Item(s) 16 - 20 This part replaces 43700-49500.

43700-49502

Unavailable

16

NO DESCRIPTION AVAILABLE This part replaces 43610-49400.

43610-49401

Unavailable

16

BAR, PILLION FOOTREST, RH This part replaces 43620-49400.

43620-49401

Unavailable

17

RUBBER, PILLION FOOTREST This part replaces 43612-49400.

43612-49402

Unavailable

18

WASHER This part replaces 43631-49400.

43631-49401

Unavailable

19

PIN

09200-06010

$1.72

20

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

21

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

$3.72

22

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

23

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

24

BRACKET, MUFFLER RH

43811-45900

Unavailable

25

BRACKET, MUFFLER LH

43821-45900

Unavailable

26

BOLT, LOWER This part replaces 09106-10006.

07130-10307

$4.41

27

BOLT, L This part replaces 09106-10007.

07130-1040B

$5.37
