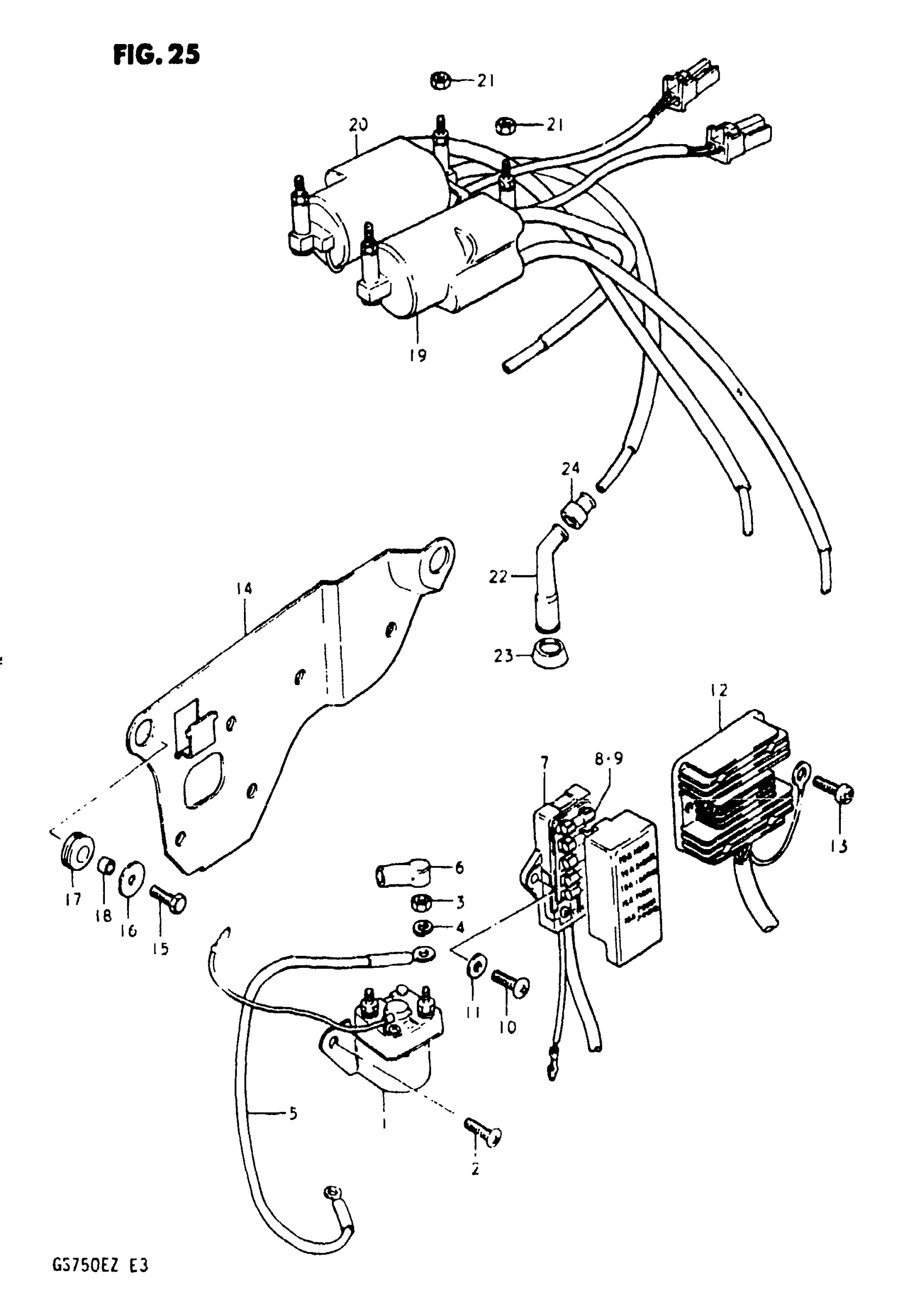

Suzuki GS750E (1982) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-37020.

31800-37021

$71.42

2

SCREW This part replaces 02112-06168.

02112-06167

$1.49

3

.NUT This part replaces 08310-22068.

08310-00067

$2.13

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

LEAD WIRE, (-) This part replaces 33850-44110.

33850-03201

$9.94

6

CAP, STARTER MOTOR This part replaces 31861-35100.

31861-48B10

$6.55

7

FUSE BOX ASSY | Includes Item(s) 8 - 9 This part replaces 36740-49200.

36740-49X02

Unavailable

8

FUSE (10A)

09481-10001

$1.71

9

FUSE (15A)

09481-15001

$2.06

10

SCREW This part replaces 02112-06208.

02112-06207

$1.78

10

SCREW This part replaces 02112-06168.

02112-06167

$1.49

11

WASHER This part replaces 08322-21068.

08322-01067

$2.13

12

RECTIFIER ASSY This part replaces 32800-49140.

32800-49X50

Unavailable

13

SCREW This part replaces 02112-06128.

02112-06127

$1.84

14

PLATE, PARTS HOLDER

47410-49200

Unavailable

15

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

16

WASHER This part replaces 09160-06012.

09160-06054

$1.62

17

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

18

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.48

19

COIL ASSY,IGNIT This part replaces 33410-49110.

33410-45112

Unavailable

20

COIL ASSY,IGNIT This part replaces 33420-49110.

33410-45112

Unavailable

21

.NUT This part replaces 08310-11068.

08310-00067

$2.13

22

CAP, SPARK PLULG

33510-45010

$24.99

23

SEAL, SPARK PLUG This part replaces 33541-32410.

33541-38210

$4.68

24

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34
