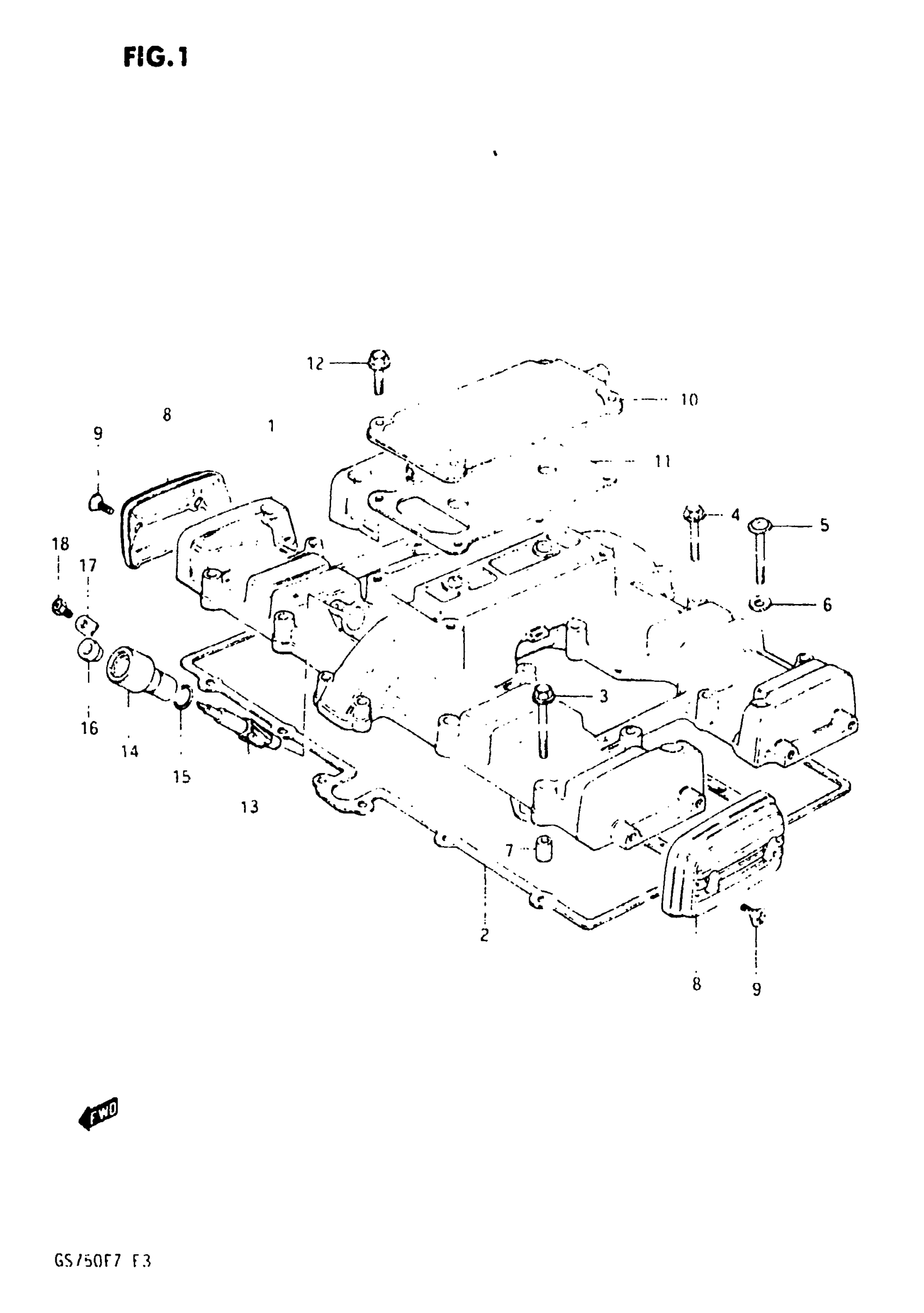

Suzuki GS750E (1982) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER,CYLINDER This part replaces 11171-45420.

11171-45422

Unavailable

2

GASKET,CYLINDER This part replaces 11173-49210.

11173-49224-H17

$36.75

3

BOLT This part replaces 01517-06408.

01550-06407

$2.69

4

BOLT This part replaces 01517-06358.

01550-06357

$2.77

5

SCREW This part replaces 02152-06408.

02112-16407

$3.03

6

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

7

PIN

09206-08001

$1.78

8

CAP, SIDE This part replaces 11174-49220.

11174-49221

$22.43

9

SCREW

09127-05015

$1.65

10

COVER, BREATHER This part replaces 11176-45401.

11176-45402

Unavailable

11

GASKET,BRTHR CV This part replaces 11177-45400.

11177-45400-H17

Unavailable

12

BOLT This part replaces 01517-06208.

01550-06207

$2.30

13

GEAR, TACHOMETER DRIVEN This part replaces 26431-49200.

26431-49201

Unavailable

14

SLEEVE This part replaces 26441-45000.

26441-49000

$30.58

15

SEAL BAND

26451-45000

$5.05

16

OIL SEAL

09289-05002

$8.43

17

PLATE

26449-33000

$4.35

18

SCREW

09128-05101

$1.49
